Parts Layout And Schematic Drawing: Drawing

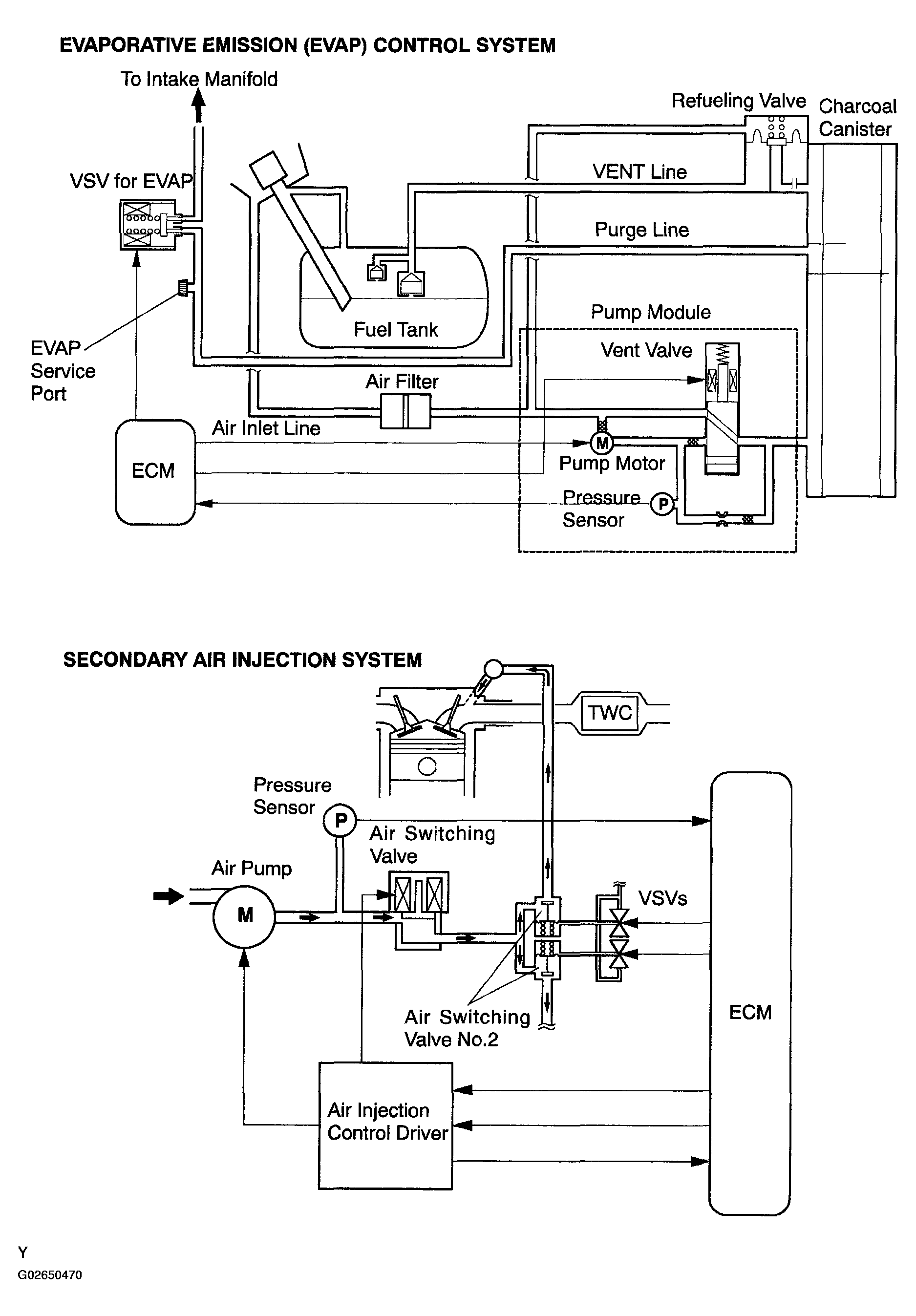

Fig 1: Identifying Evaporative Emission Control System And Secondary Air Injection System Description Diagram
G02650470Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
