Power Door Lock Control System: Inspection

INSPECT DRIVER DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

DRIVER DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
LOCK	3 - 5	Continuity
OFF	-	No continuity
UNLOCK	3 - 6	Continuity

If continuity is not as specified, replace the door lock motor.

Fig 1: Inspecting Driver Door Key Lock And Unlock Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT PASSENGER'S DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

PASSENGER'S DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
LOCK	2 - 4	Continuity
OFF	-	No continuity
UNLOCK	1 - 4	Continuity

If continuity is not as specified, replace the door lock motor.

Fig 2: Inspecting Passenger's Door Key Lock And Unlock Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT DRIVER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY

DRIVER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
OFF (Door Lock set to LOCK)	-	No continuity
ON (Door Lock set to UNLOCK)	3 - 4	Continuity

If continuity is not as specified, replace the door lock motor.

Fig 3: Inspecting Driver's Door Unlock Detection Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT PASSENGER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY

PASSENGER'S DOOR UNLOCK DETECTION SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
OFF (Door Lock set to LOCK)	-	No continuity
ON (Door Lock set to UNLOCK)	3 - 4	Continuity

If continuity is not as specified, replace the door lock motor.

Fig 4: Inspecting Passenger's Door Unlock Detection Switch Continuity

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

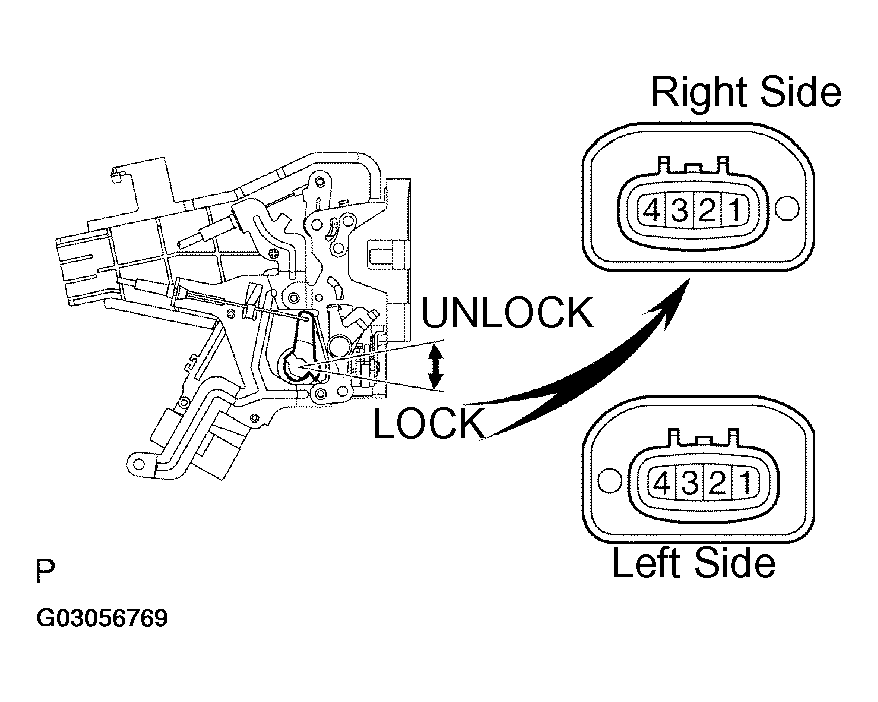

INSPECT REAR DOOR UNLOCK DETECTION SWITCH CONTINUITY

REAR DOOR UNLOCK DETECTION SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
OFF (Door Lock set to LOCK)	-	No continuity
ON (Door Lock set to UNLOCK)	3 - 4 (Left side) 1 - 2 (Right side)	Continuity

If continuity is not as specified, replace the door lock motor.

Fig 5: Inspecting Rear Door Unlock Detection Switch Continuity

INSPECT DRIVER'S DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock cable moves to the UNLOCK position.
2. Reverse the polarity and check that the door lock cable moves to the LOCK position.
  If operation is not as specified, replace the door lock motor.

  Fig 6: Inspecting Driver's Door Lock Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT PASSENGER'S DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 5 and the negative (-) lead to terminal 6, and check that the door lock cable moves to the UNLOCK position.
2. Reverse the polarity and check that the door lock cable moves to the LOCK position.
  If operation is not as specified, replace the door lock motor.

  Fig 7: Inspecting Passenger's Door Lock Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR LEFT SIDE DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 1 and the negative (-) lead to terminal 2, and check that the door lock cable moves to the UNLOCK position.
2. Reverse the polarity and check that the door lock cable moves to the LOCK position.
  If operation is not as specified, replace the door lock motor.

  Fig 8: Inspecting Rear Left Side Door Lock Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT REAR RIGHT SIDE DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4, and check that the door lock cable moves to the UNLOCK position.
2. Reverse the polarity and check that the door lock cable moves to the LOCK position.
  If operation is not as specified, replace the door lock motor.

  Fig 9: Inspecting Rear Right Side Door Lock Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSPECT BACK DOOR LOCK MOTOR OPERATION
1. Connect the positive (+) lead from the battery to terminal 3 and the negative (-) lead to terminal 4, and check that the door lock cable moves to the UNLOCK position.
2. Reverse the polarity and check that the door lock cable moves to the LOCK position.
  If operation is not as specified, replace the door lock motor.

  Fig 10: Inspecting Back Door Lock Motor Operation
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

INSPECT BACK DOOR UNLOCK DETECTION SWITCH CONTINUITY

BACK DOOR UNLOCK DETECTION SWITCH CONTINUITY

Switch position	Tester connection	Specified condition
OFF (Door Lock set to LOCK)	-	No continuity
ON (Door Lock set to UNLOCK)	1 - 2	Continuity

If continuity is not as specified, replace the back door lock motor.

Fig 11: Inspecting Back Door Unlock Detection Switch Continuity

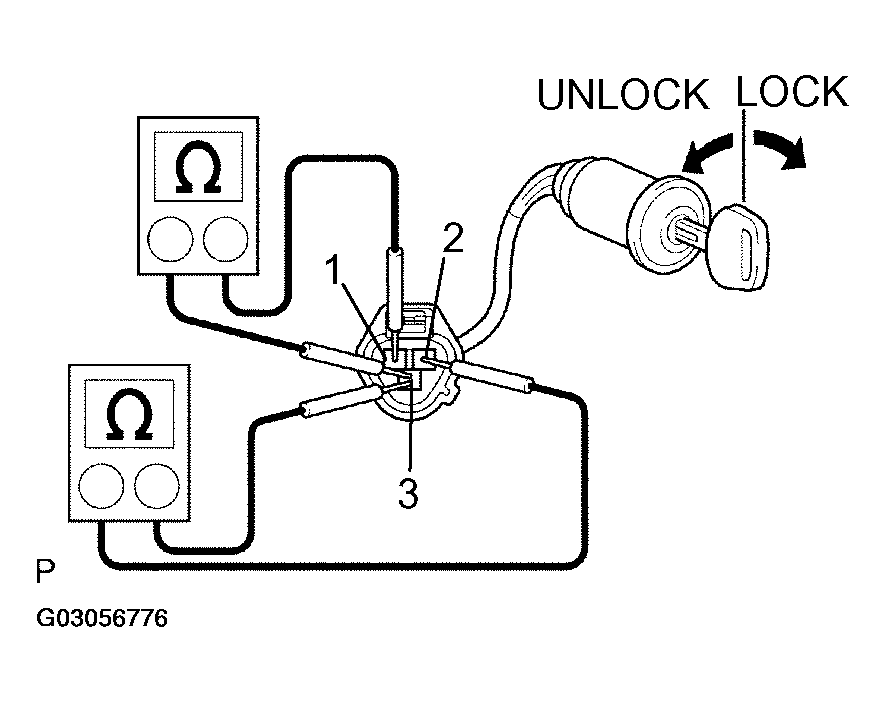

INSPECT BACK DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY (Back Door Control switch)

BACK DOOR KEY LOCK AND UNLOCK SWITCH CONTINUITY (BACK DOOR CONTROL SWITCH)

Switch position	Tester connection	Specified condition
LOCK	1 - 3	Continuity
OFF	-	No continuity
UNLOCK	2 - 3	Continuity

If continuity is not as specified, replace the switch.

Fig 12: Inspecting Back Door Key Lock And Unlock Switch Continuity (Back Door Control Switch)
