Seat Belt: Components

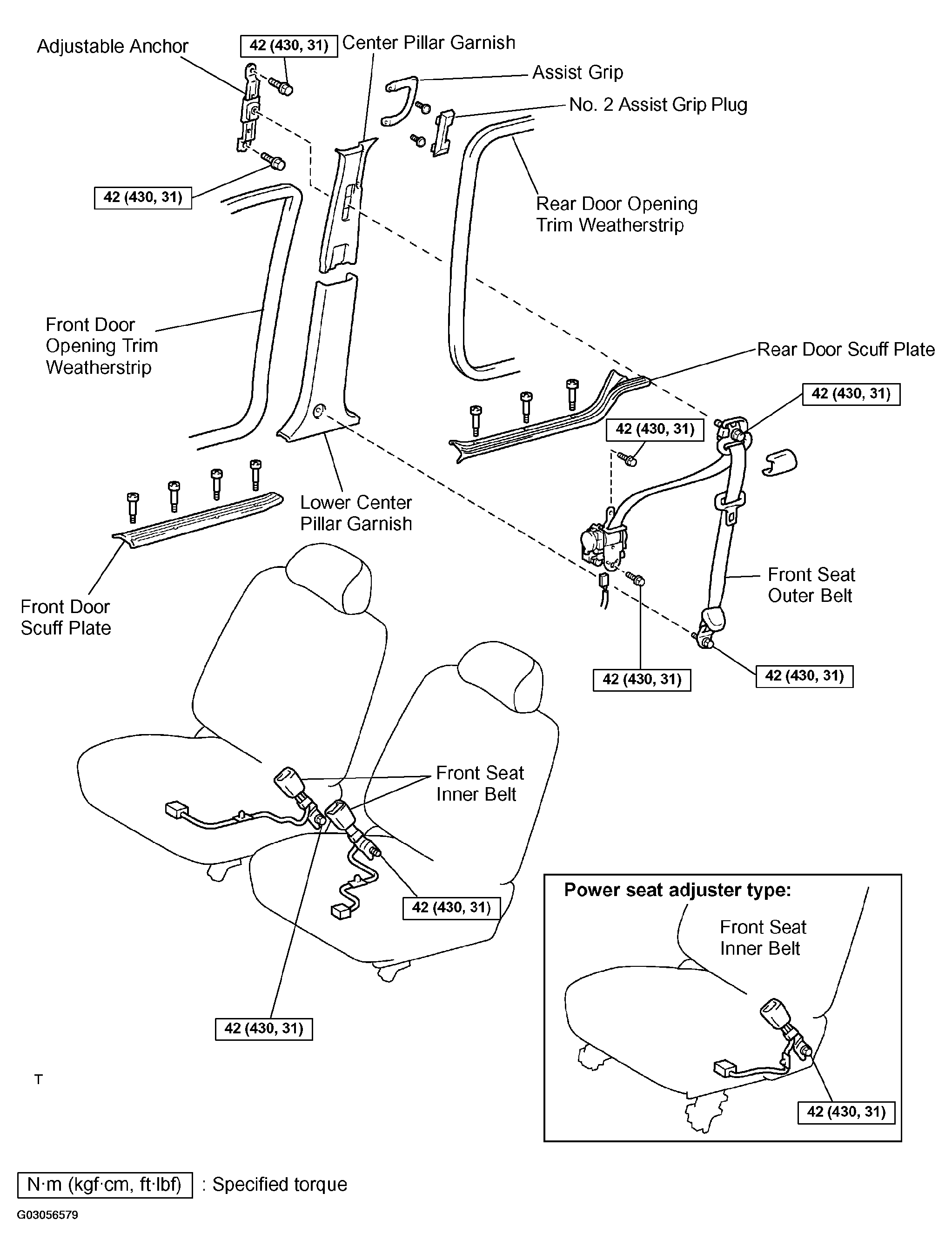

Fig 1: Identifying Seat Belt Components (1 Of 2)
G03056579Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

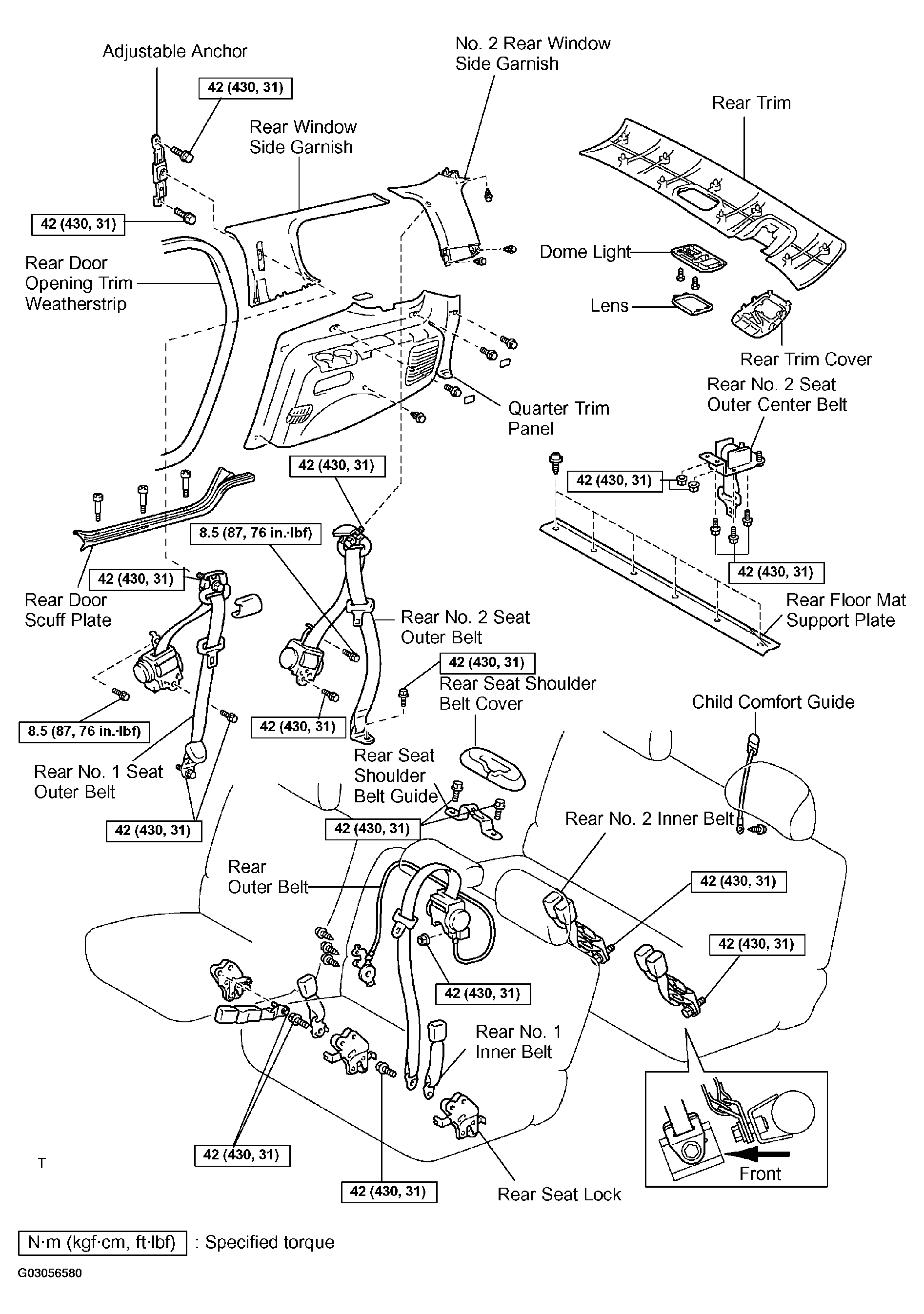

Fig 2: Identifying Seat Belt Components (2 Of 2)
G03056580Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
