Waveform 4

  1. VVT sensor bank 1
  2. VVT sensor bank 2
  3. Crankshaft position sensor
    Fig 1: Sensor Bank Description Table
    G03057891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

The wavelength becomes shorter as the engine RPM increases.

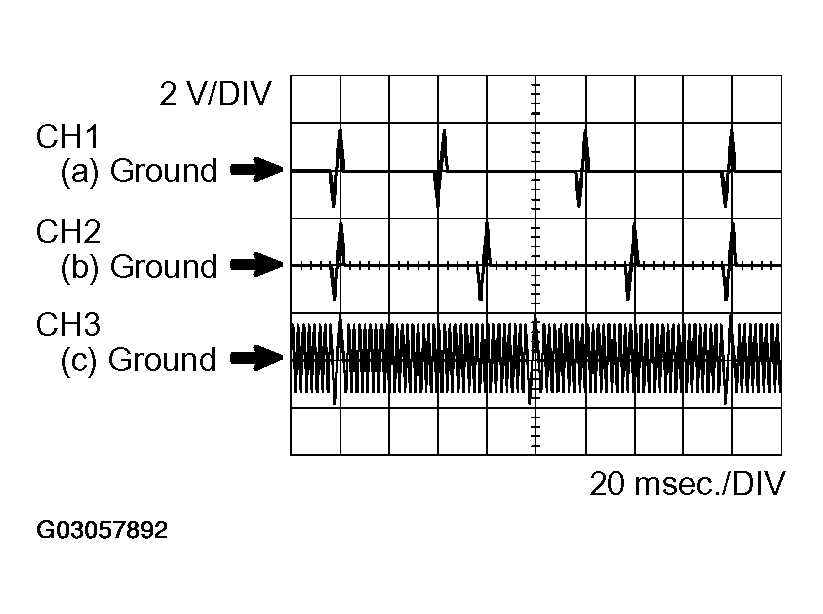

Fig 2: VVT Sensor Bank - Waveform
G03057892Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
