Throttle Body: Removal

  1. REMOVE THROTTLE BODY COVER
  2. DRAIN ENGINE COOLANT
  3. REMOVE INTAKE AIR CONNECTOR
  4. REMOVE THROTTLE BODY
    1. Disconnect the throttle control connector.
    2. Disconnect the 2 water bypass hoses from the throttle body.

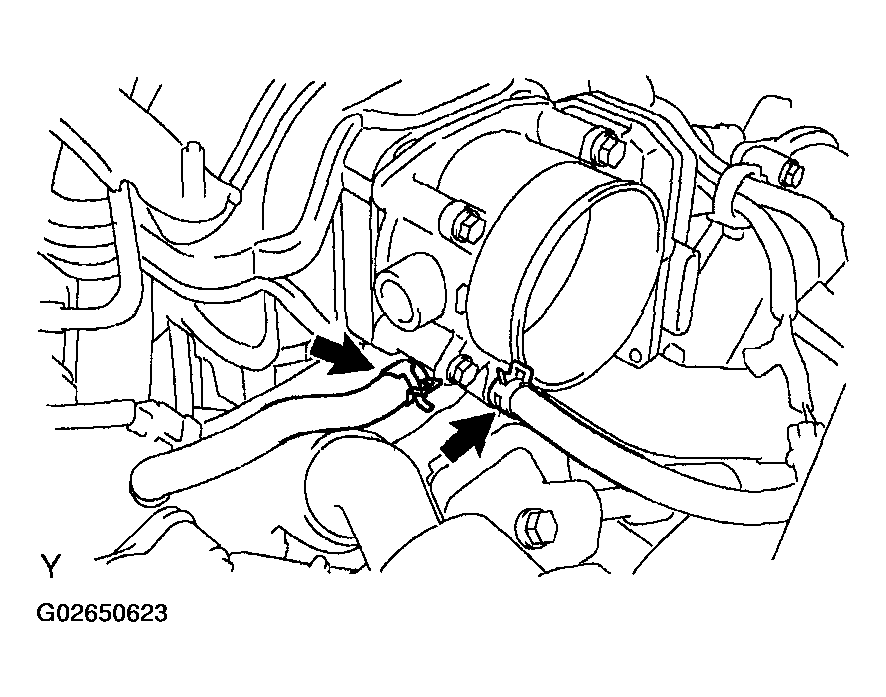

      Fig 1: Disconnecting Water Bypass Hoses From Throttle Body
      G02650623Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    3. Remove the nut and 3 bolts, and remove the throttle body from the intake manifold.

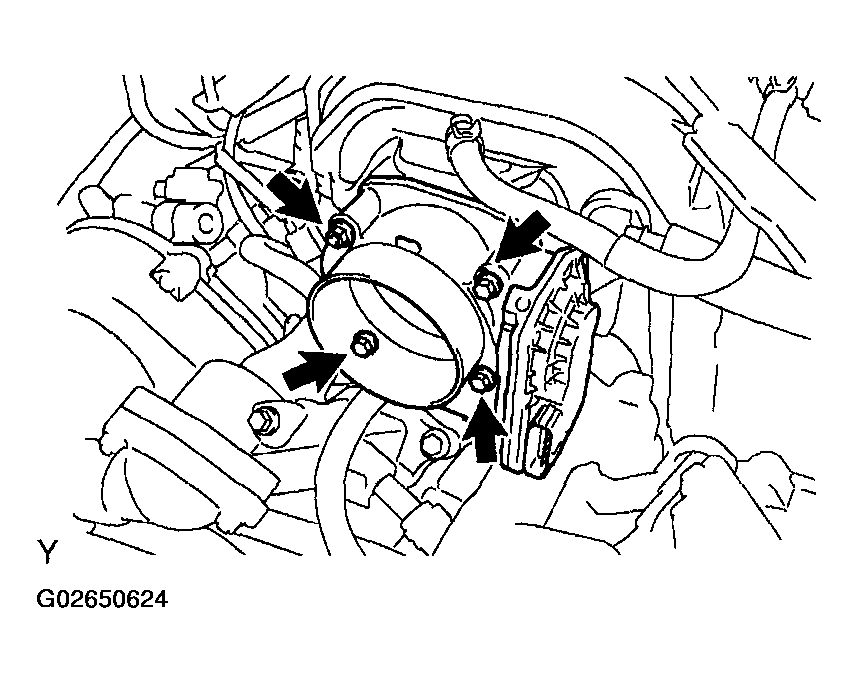

      Fig 2: Removing Throttle Body From Intake Manifold
      G02650624Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
