Fuel Pump: Removal

REMOVE FUEL TANK ASSEMBLY (See REMOVAL )
DISCONNECT FUEL SUCTION TUBE
Remove the 2 tube clips, and pull out the 2 fuel tubes.

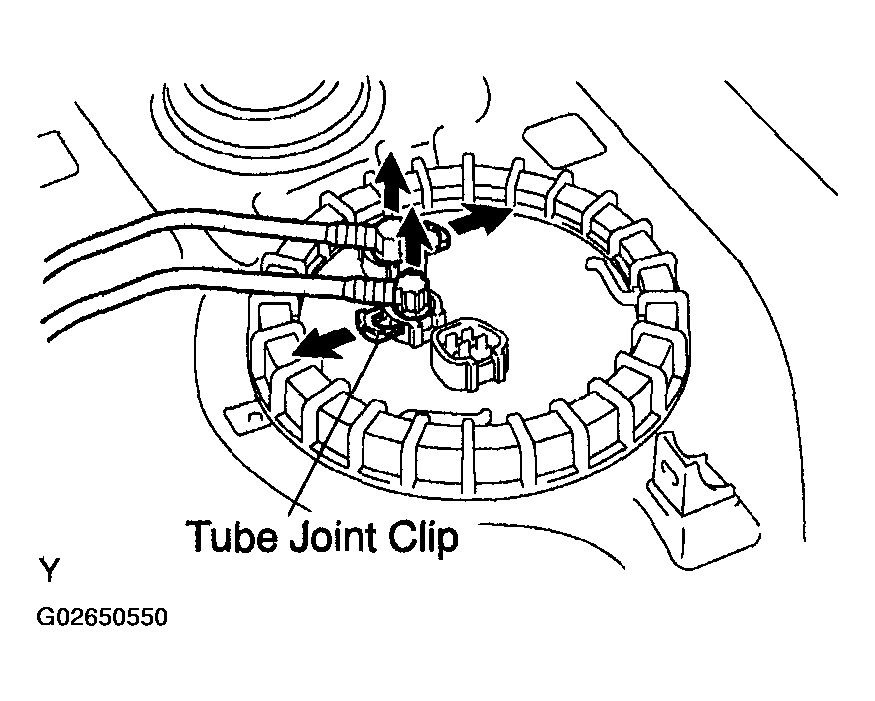

Fig 1: Removing Tube Joint Clip
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
NOTE:
- Before this operation, check the connector for dirt, mud or other contamination. Clean if necessary.
- Be careful of mud. The connector's O-ring, which seals the pipe and connector, is easily contaminated.
- Do not use any tool in this operation.
- Do not bend or twist the nylon tube. Protect the connector by covering it with a plastic bag.
- When the pipe and connector are stuck, push and pull the connector to release and pull the connector out carefully.
Fig 2: Attaching Tape On Port
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FUEL PUMP ASSEMBLY
1. Using SST, loosen the fuel pump gauge retainer.

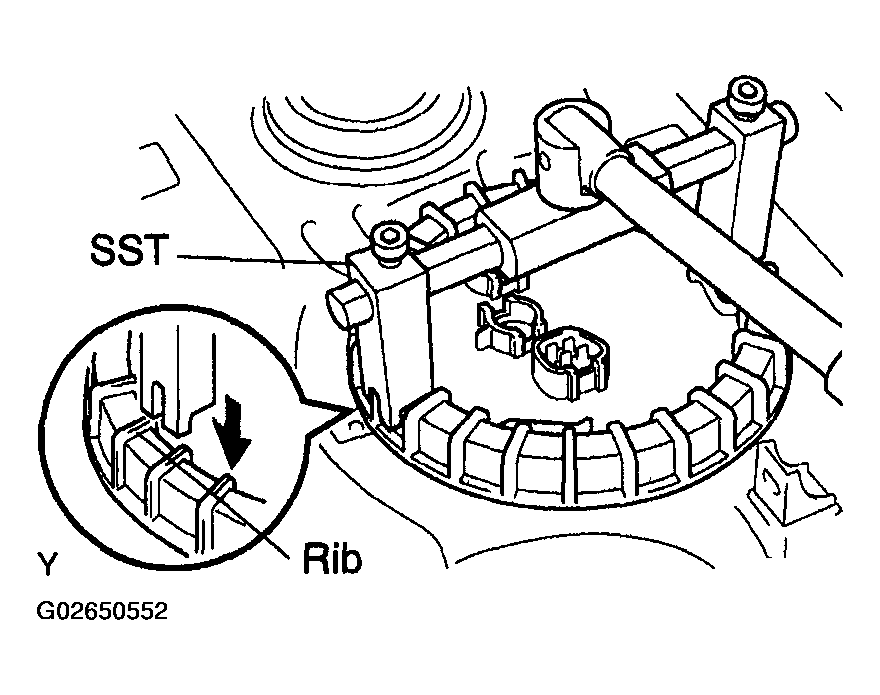

  Fig 3: Loosening Fuel Pump Gauge Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  SST 09808-14020 (09808-01410, 09808-01420, 09808-01430)

  HINT:

  A rib on the fuel pump gauge retainer fits into a tip of the SST.
2. Remove the fuel pump gauge retainer.
3. Remove the fuel suction tube.
  NOTE: Be careful not to bend the arm of the fuel sender gauge.
4. Remove the gasket from the fuel tank.
