Fuel Pump Relay: Inspection

REMOVE RELAY BOX COVER
REMOVE FUEL PUMP RELAY (Marking: F/P)
INSPECT FUEL PUMP RELAY CONTINUITY

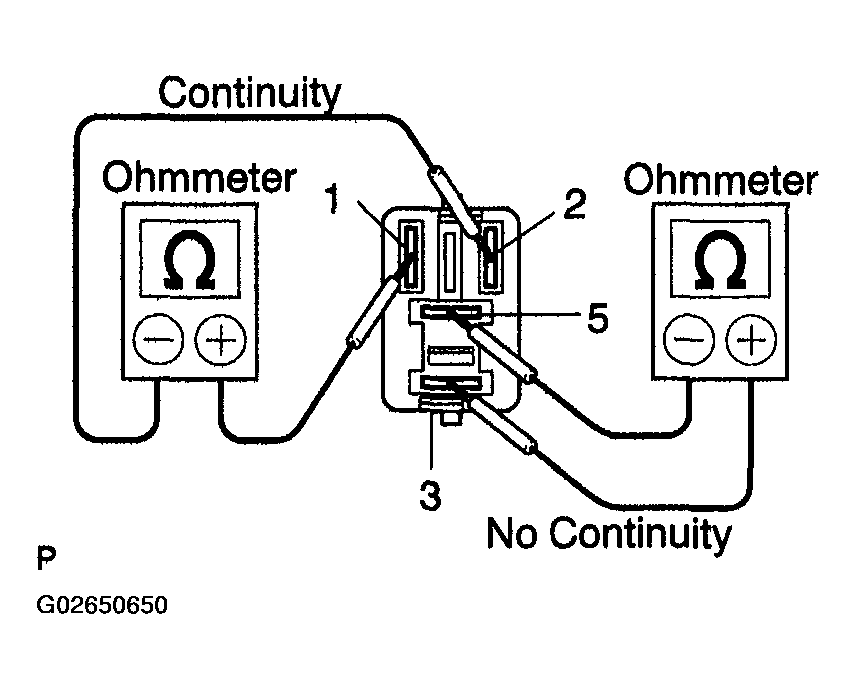

Fig 1: Inspecting Fuel Pump Relay Continuity
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Using an ohmmeter, check that there is continuity between terminals 1 and 2.
  If there is no continuity, replace the relay.
2. Check that there is continuity between terminals 3 and 4.
  If there is no continuity, replace the relay.
INSPECT FUEL PUMP RELAY OPERATION

Fig 2: Inspecting Fuel Pump Relay Operation
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
1. Apply battery positive voltage across terminals 1 and 2.
2. Using an ohmmeter, check that there is no continuity between terminals 3 and 4.
If there is continuity, replace the relay.
REINSTALL FUEL PUMP RELAY
REINSTALL RELAY BOX COVER
