Acoustic Control Induction System (ACIS): Installation

  1. INSTALL VSV FOR ACIS
    1. Install the VSV to the intake manifold with the bolt.

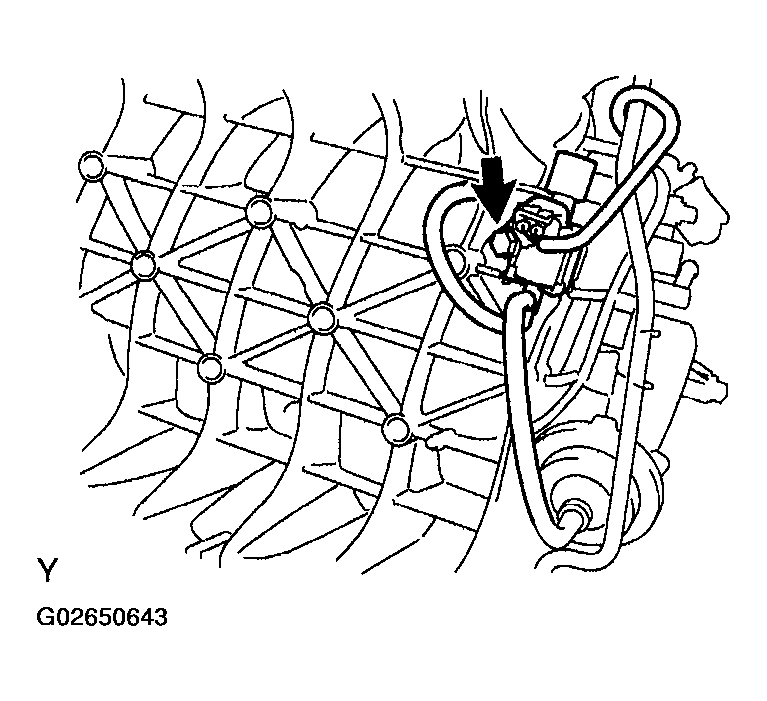

      Fig 1: Installing VSV To Intake Manifold
      G02650643Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      Torque: 7.5 N.m (76 kgf.cm, 66 in..lbf)

    2. Connect the 2 vacuum hoses to the VSV.
  2. INSTALL INTAKE MANIFOLD ASSEMBLY (See  INSTALLATION  )
  3. INSTALL THROTTLE BODY COVER
