Starting System: Starter: Components

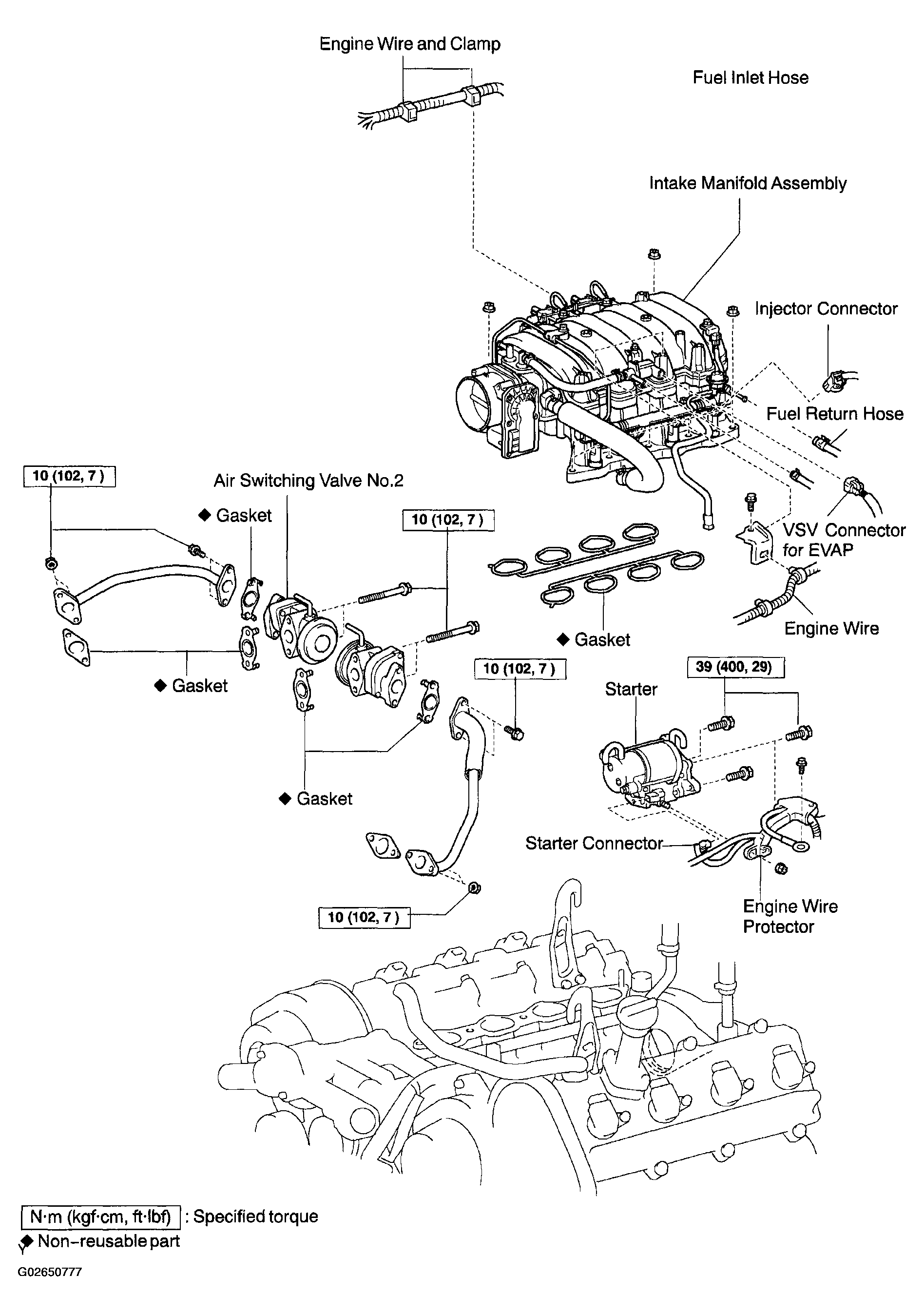

Fig 1: Identifying Starter Components (1 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

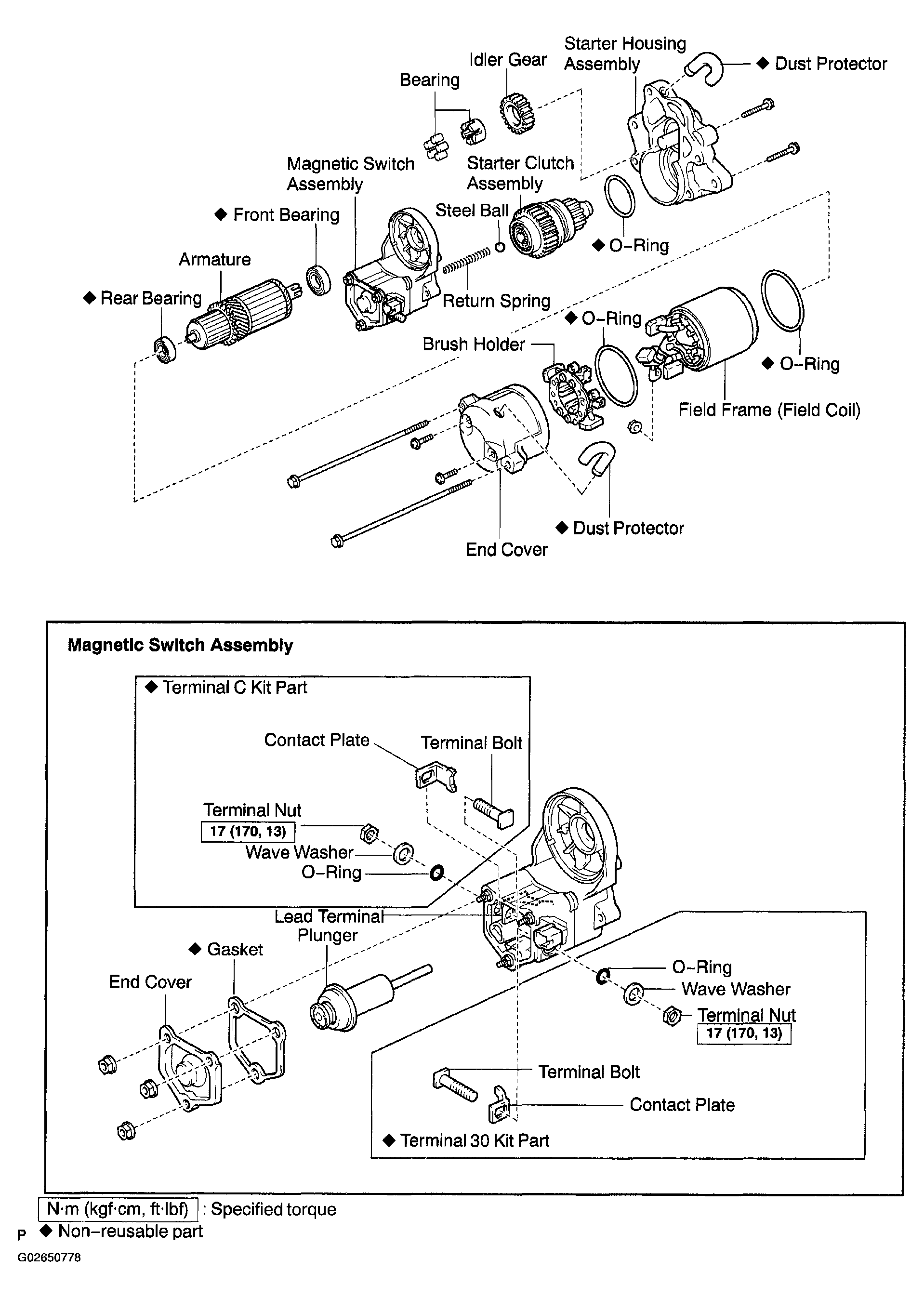

Fig 2: Identifying Starter Components (2 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

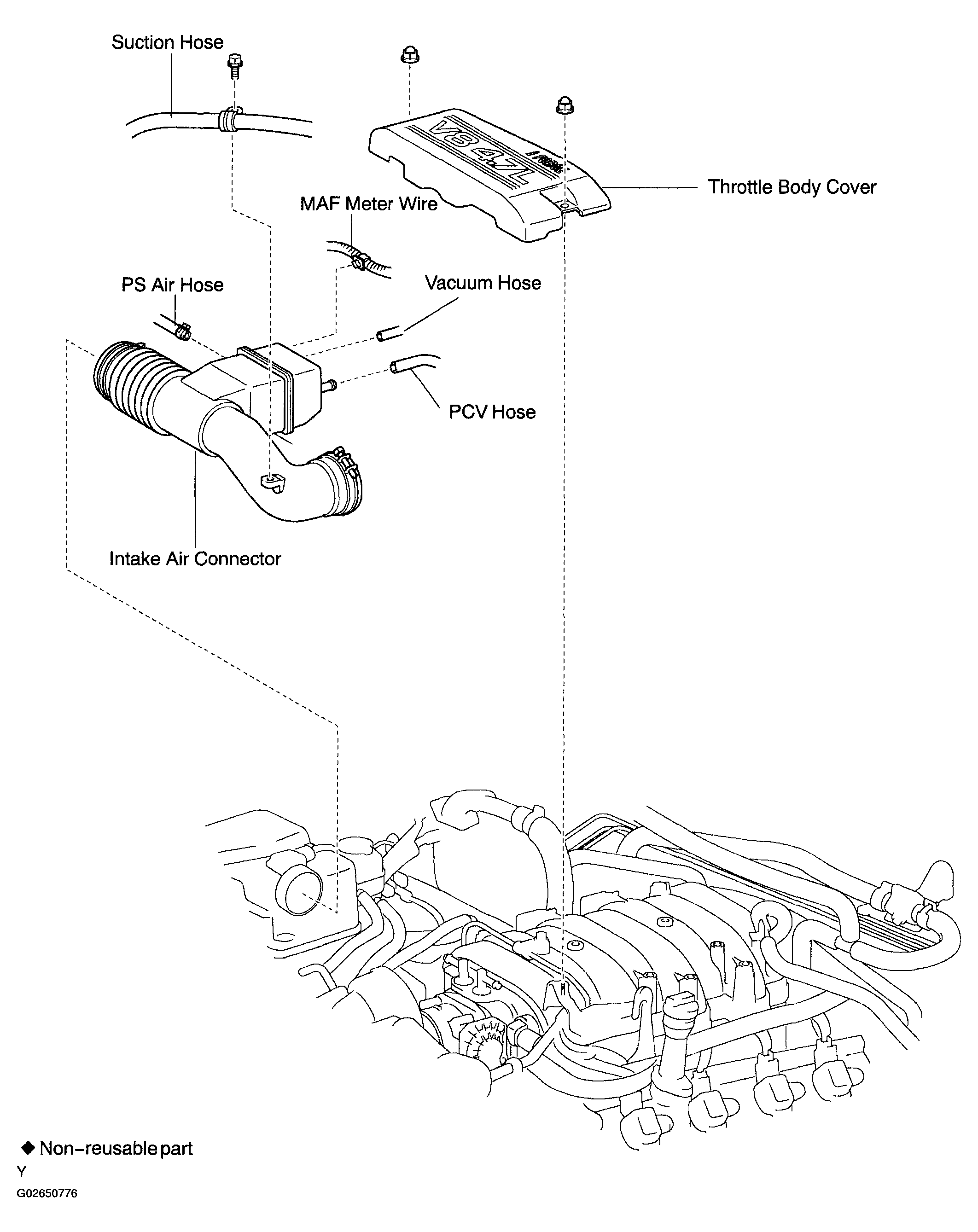

Fig 3: Identifying Starter Components (3 of 3)

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
