Charging System: Generator: Replacement

REPLACE FRONT BEARING
1. Remove the 4 screws, the bearing retainer and the bearing.

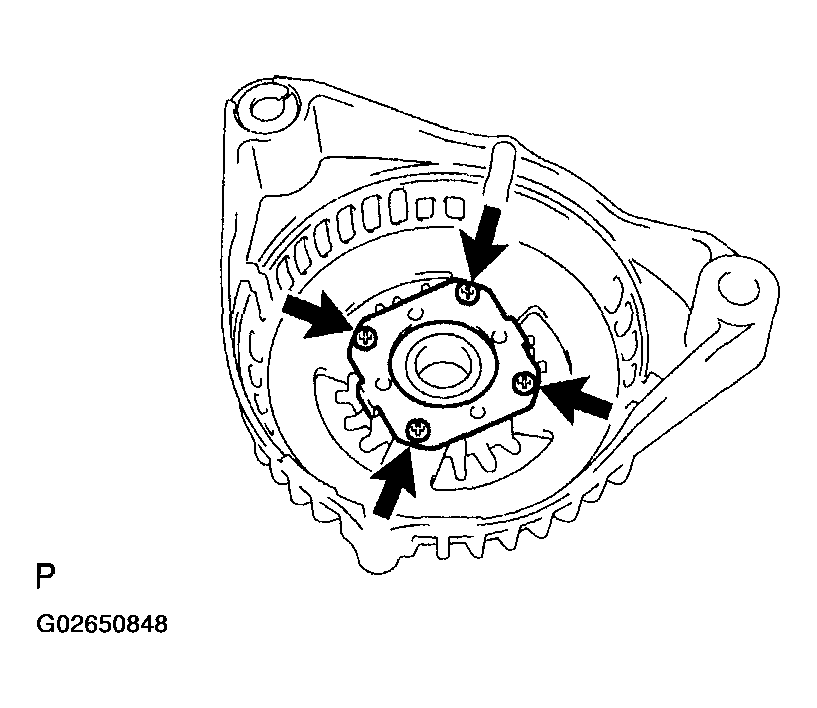

  Fig 1: Removing Bearing Retainer
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a hammer, tap out the bearing.
  SST 09950-60010 (09951-00250), 09950-70010 (09951-07100)

  Fig 2: Removing Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST and a press, press in a new bearing.
  SST 09950-60010 (09951-00470), 09950-70010 (09951-07100)
4. Install the bearing retainer with the 4 screws.
  Torque: 2.6 N.m (27 kgf.cm, 23 in.lbf)

  Fig 3: Installing Front Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REPLACE REAR BEARING
1. Using SST, remove the bearing cover (outside) and the bearing.
  SST 09820-00021

  NOTE: Be careful not to damage the fan.

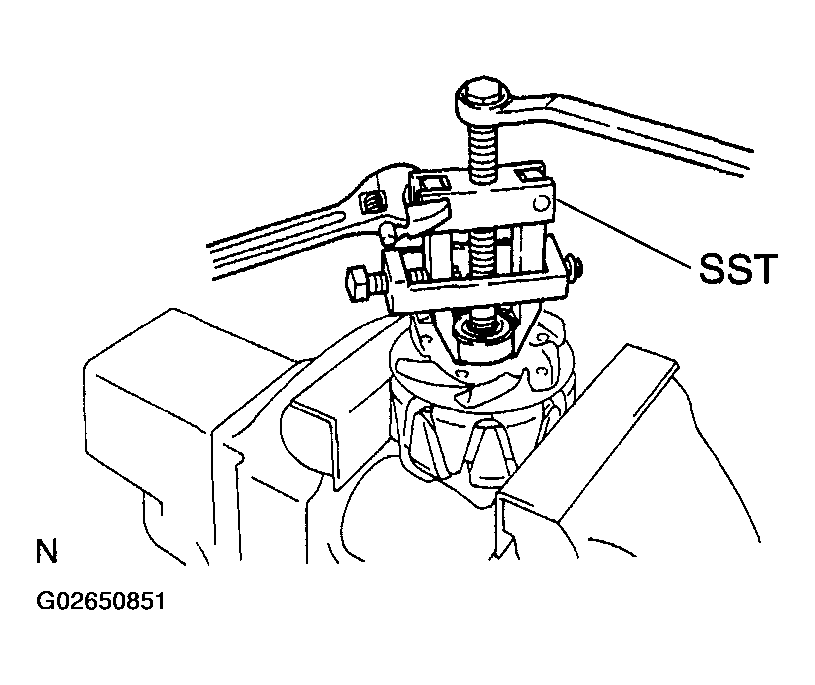

  Fig 4: Removing Rear Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using SST and a press, press in a new bearing.
  SST 09820-00031

  Fig 5: Installing Rear Bearing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Using SST, push in the bearing cover (outside). SST 09285-76010
Fig 6: Installing Bearing Cover
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
