Charging System: Generator: Removal

  1. REMOVE ENGINE UNDER COVER
  2. REMOVE THROTTLE BODY COVER
  3. DISCONNECT CABLE FROM NEGATIVE (-) BATTERY TERMINAL
  4. DISCONNECT INTAKE AIR CONNECTOR FROM THROTTLE BODY
  5. REMOVE DRIVE BELT

    Loosen the belt tension by turning the belt tensioner counterclockwise, and remove the drive belt.

    HINT:

    The pulley bolt for the belt tensioner has a left hand thread.

  6. REMOVE PS VANE PUMP FROM ENGINE (See  REMOVAL  )

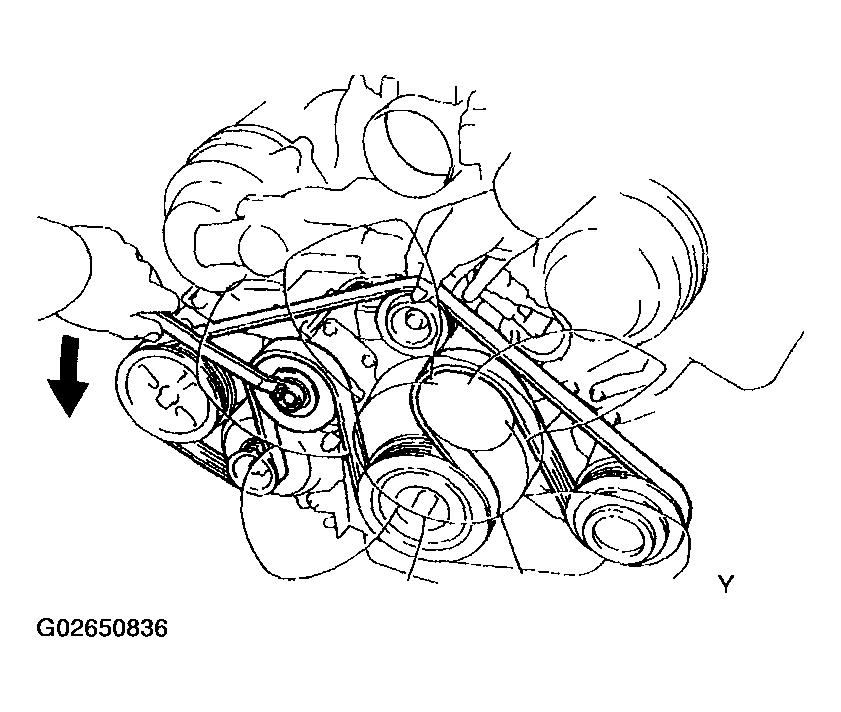

    Fig 1: Removing Drive Belt
    G02650836Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  7. REMOVE GENERATOR
    1. Disconnect the generator connector.
    2. Remove the terminal cap and nut, and disconnect the generator wire.
    3. Disconnect the wire clamp from the cord clip on the generator.
    4. Remove the bolt, the 2 nuts and the generator.
