Charging System: Generator: Disassembly

  1. REMOVE REAR END COVER
    1. Remove the 3 nuts the and end cover.
    2. Remove the terminal insulator.
  2. REMOVE BRUSH HOLDER
    1. Remove the 2 screws and brush holder.
    Fig 1: Removing Brush Holder & Screws
    G02650837Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. REMOVE PULLEY
    1. Hold SST (A) with a torque wrench, and tighten SST (B) clockwise to the specified torque.

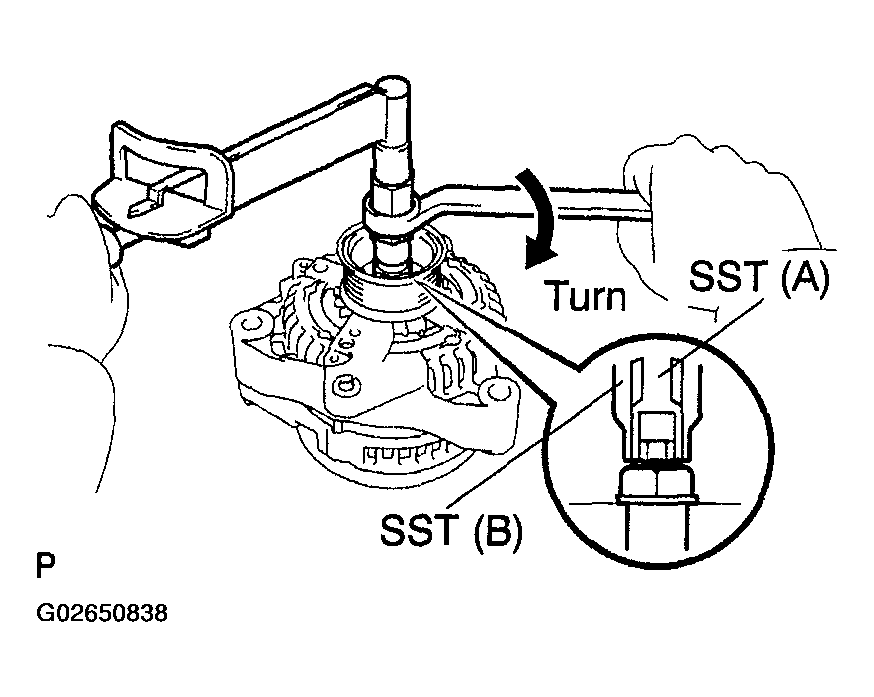

      Fig 2: Tightening SST Clockwise
      G02650838Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09820-63011

      Torque: 39 N.m (400 kgf.cm, 29 ft.lbf)

    2. Check that SST (A) is secured to the rotor shaft.
    3. Mount SST (C) in a vise.
    4. Insert SST (B) into SST (C), and attach the pulley nut to SST (C).
      Fig 3: Inserting SST (B) Into SST (C)
      G02650839Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. To loosen the pulley nut, turn SST (A) in the direction shown in the illustration.
      NOTE: To prevent damage to the rotor shaft, do not loosen the pulley nut more than one-half of a turn.
    6. Remove the generator from SST (C).
      Fig 4: Loosening Pulley Nut
      G02650840Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    7. Turn SST (B), and remove SST (A and B).
    8. Remove the pulley nut and pulley.

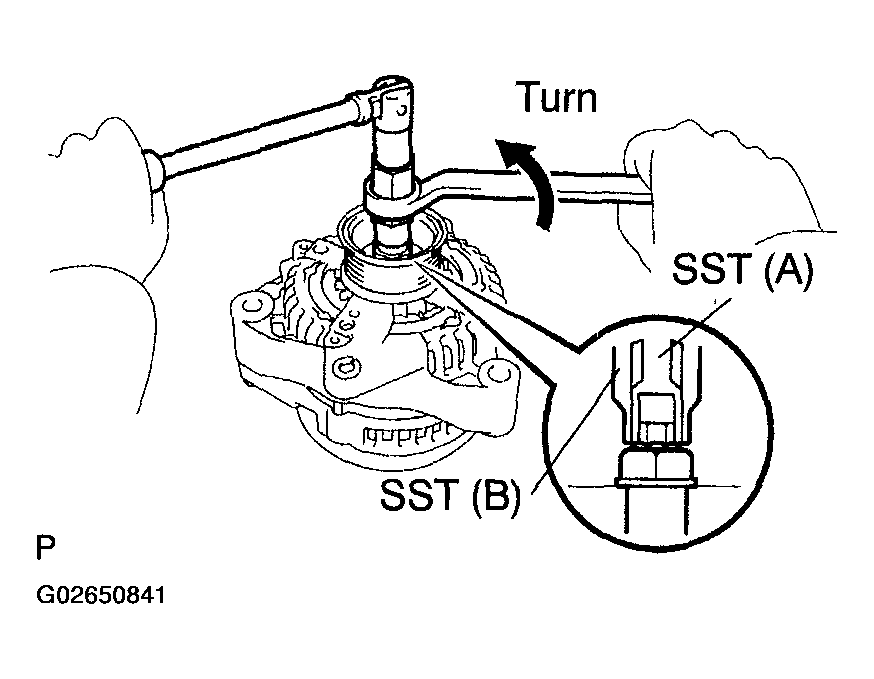

    Fig 5: Removing SST (A And B)
    G02650841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. REMOVE COIL ASSEMBLY
    1. Remove the 4 bolts.

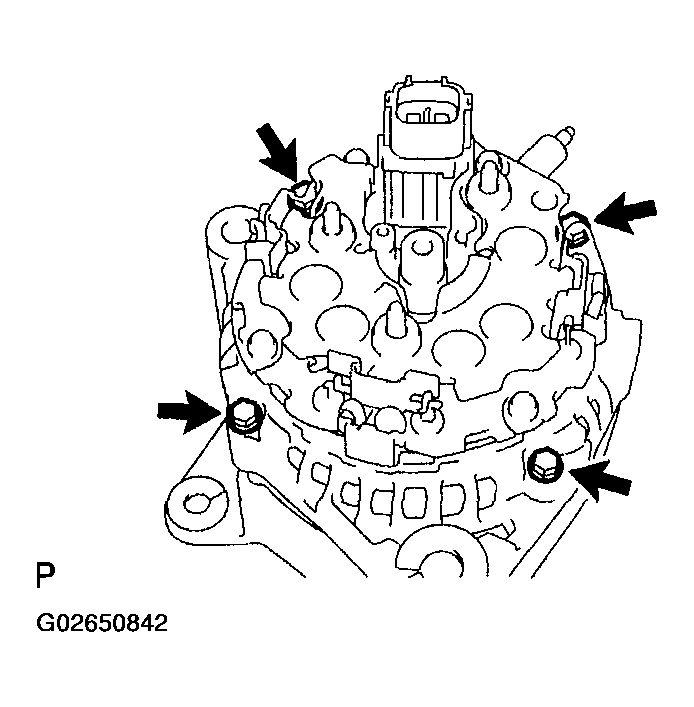

      Fig 6: Removing Bolts From Coil Assembly
      G02650842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Using SST, remove the coil assembly.

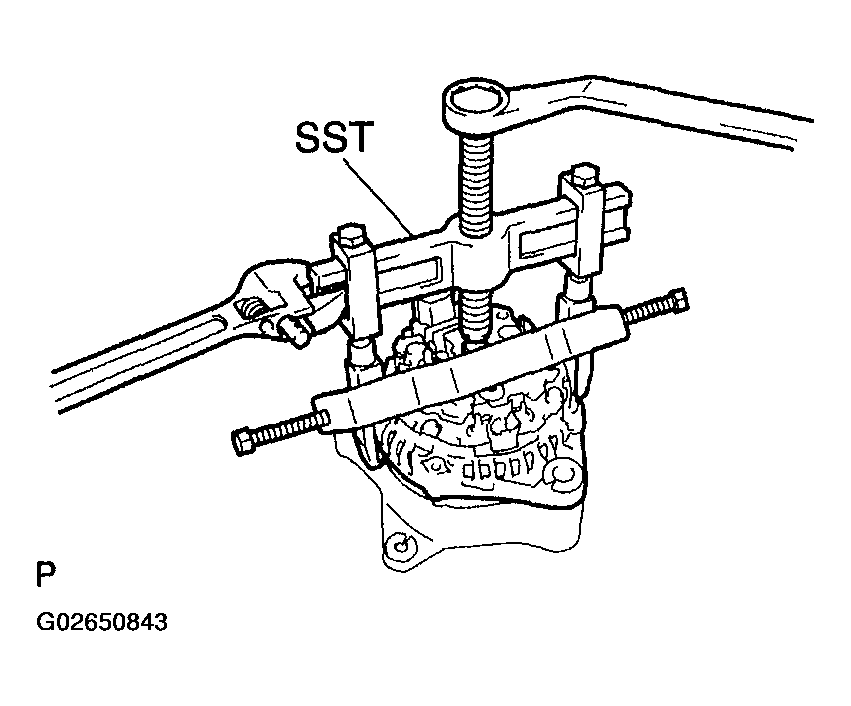

      Fig 7: Removing Coil Assembly
      G02650843Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

      SST 09950-40011 (09951-04020, 09952-04010 09953-04020, 09954-04010, 09955-04071, 09958-04011)

    3. Remove the generator washer.
  5. REMOVE ROTOR FROM DRIVE END FRAME
