Back Door Power Window Control System: Location

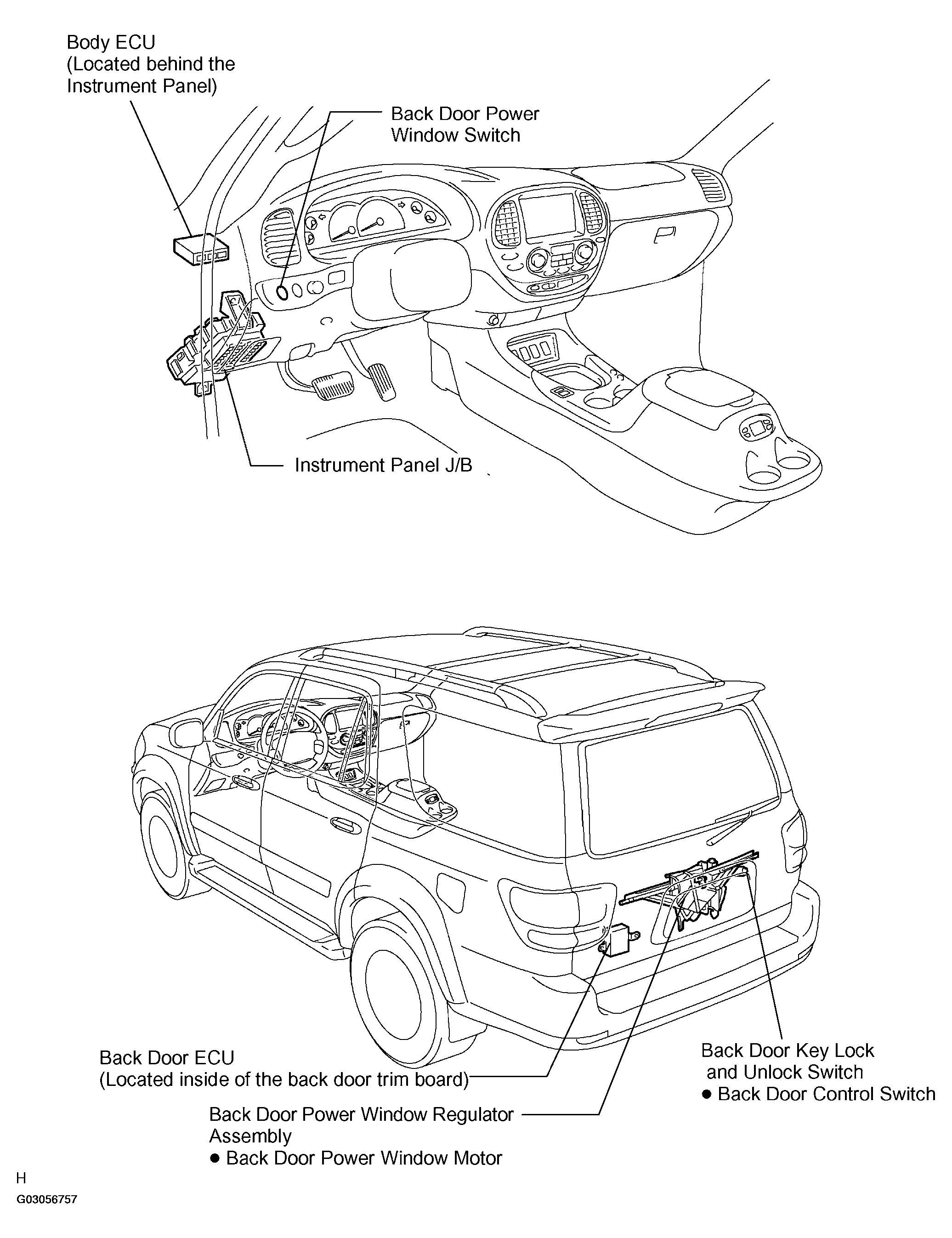

Fig 1: Identifying Back Door Power Window Control System Location

G03056757

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
