Front Wheel Hub Bolt: Replacement

REMOVE FRONT WHEEL
REMOVE FRONT BRAKE DISC (See REMOVAL )
REMOVE HUB BOLT
Using SST, remove the hub bolt.

SST 09628-10011

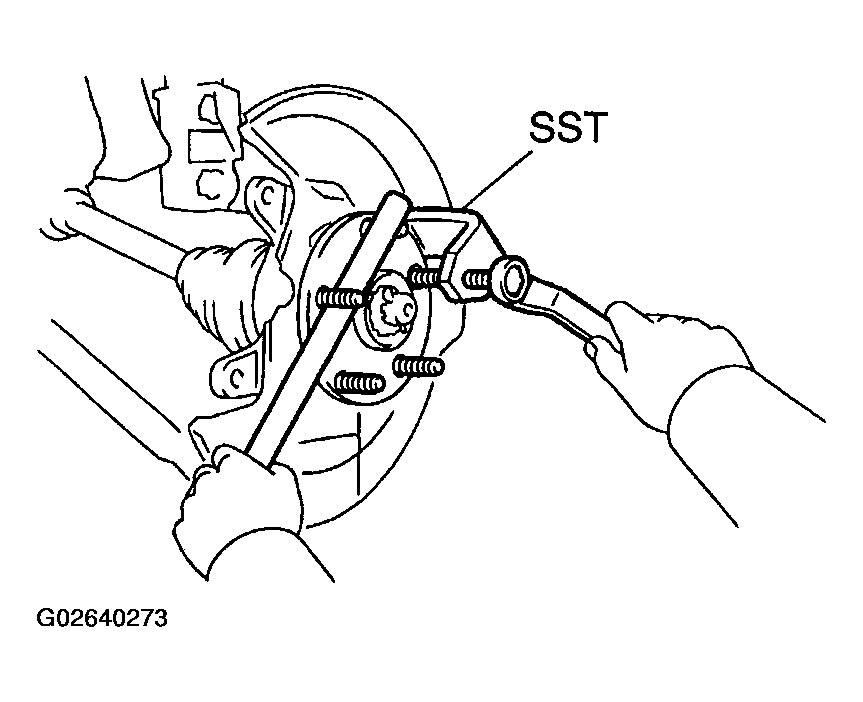

Fig 1: Removing Hub Bolt Using Special Tool
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HUB BOLT
1. Install a washer and a nut to a new hub bolt, as shown.
2. Using a brass bar to hold, install the hub bolt by tightening the nut.
INSTALL FRONT BRAKE DISC AND CALIPER (See INSTALLATION )
INSTALL FRONT WHEEL
Torque: 103 N.m (1,050 kgf.cm 76 ft.lbf)

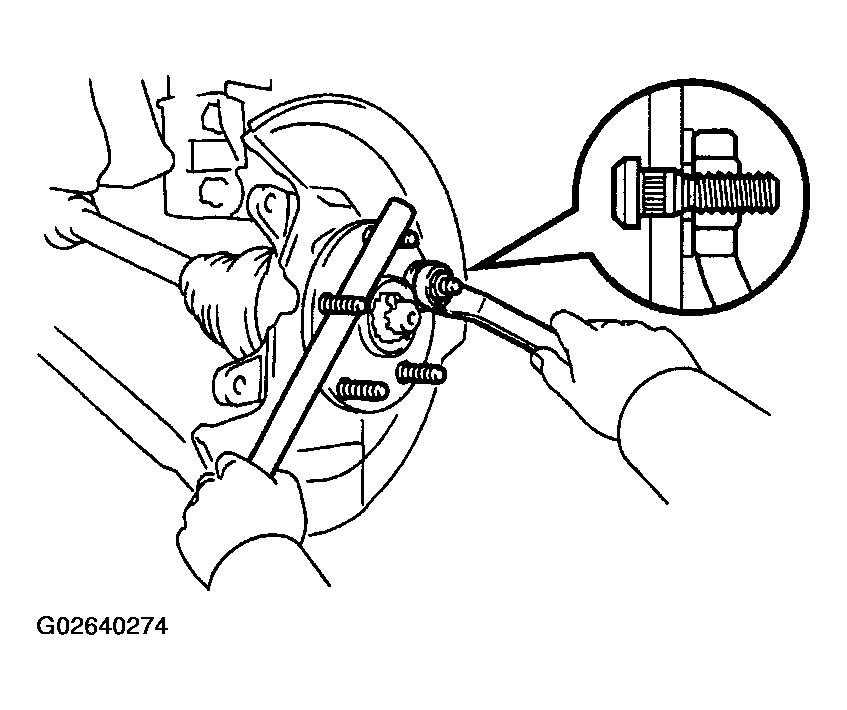

Fig 2: Installing Hub Bolt By Tightening Nut
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
