Front Stabilizer Bar: Removal

REMOVE STABILIZER BAR LINKS
1. Remove the 2 nuts and stabilizer bar link.
  Torque: 44 N.m (450 kgf.cm, 32 ft.lbf)

  HINT:

  If the ball joint turns together with the nut, use a hexagon (5 mm) wrench to fix the stud.
2. Employ the same manner described above to the other side.

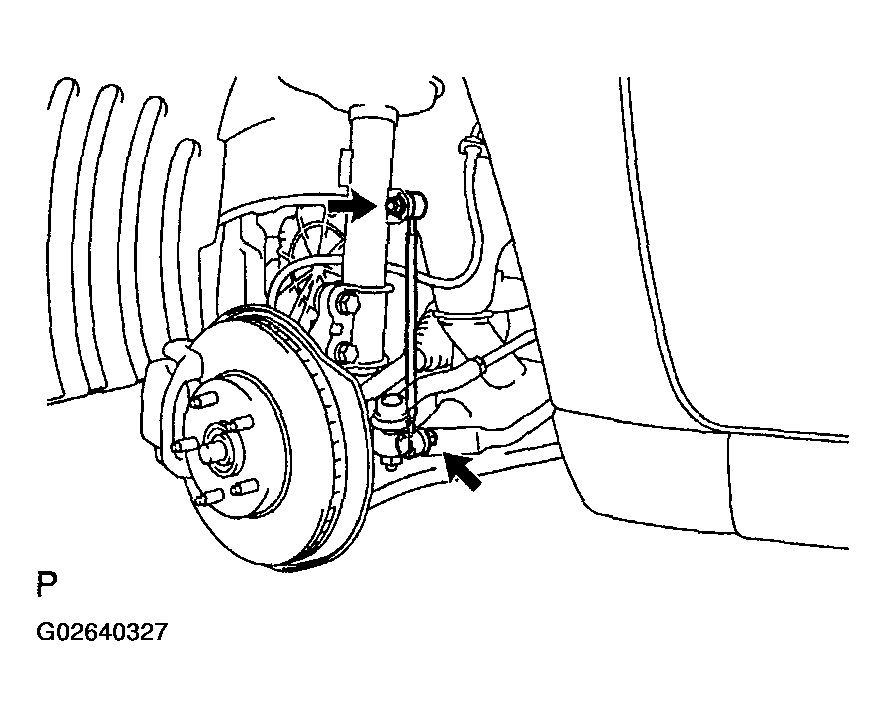

  Fig 1: Removing Stabilizer Bar Link
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE STABILIZER BAR
1. Remove the 2 bolts, bracket and bushing.
  Torque: 29 N.m (300 kgf.cm, 22 ft.lbf)
2. Employ the same manner described above to the other side.
3. Remove the stabilizer bar.

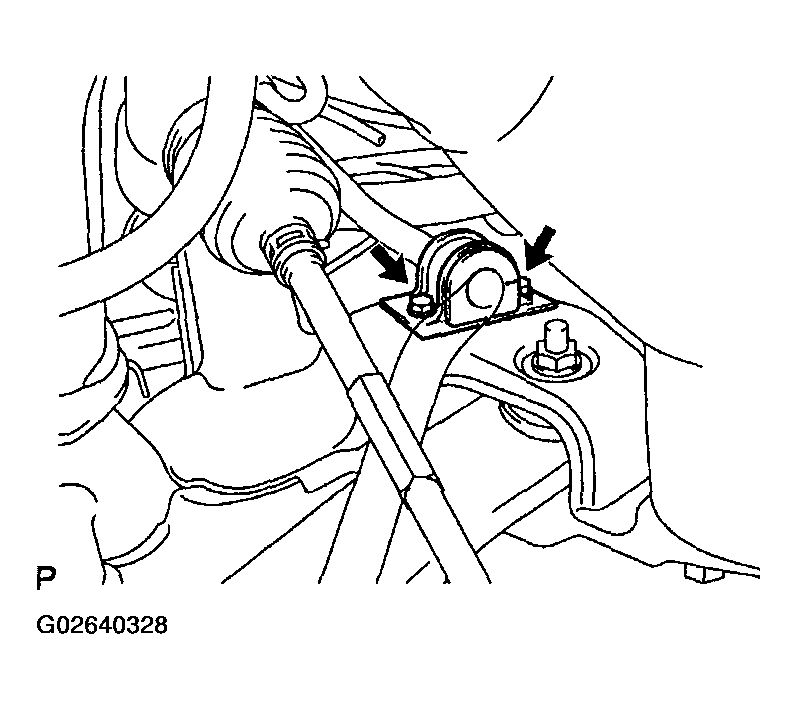

  Fig 2: Removing Bolts, Bracket And Bushing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  At the time of installation, please refer to the following items.
  - Install the bushing so that the cutout will face to the rear.
  - Install the bushing to the outside of the bushing stopper.

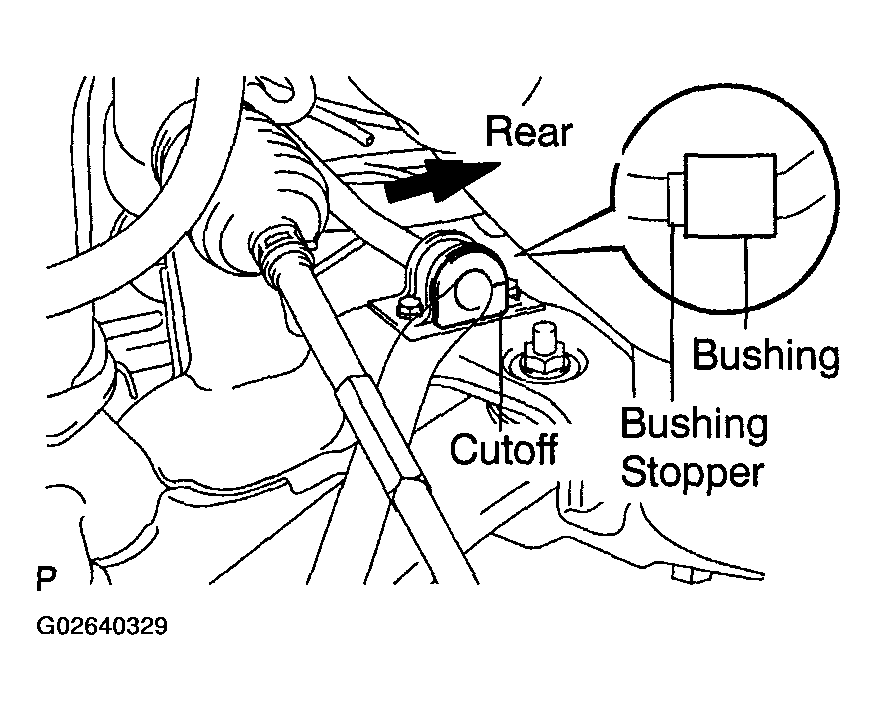

    Fig 3: Installing Bushing
    Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
