Front Lower Suspension Arm: Components

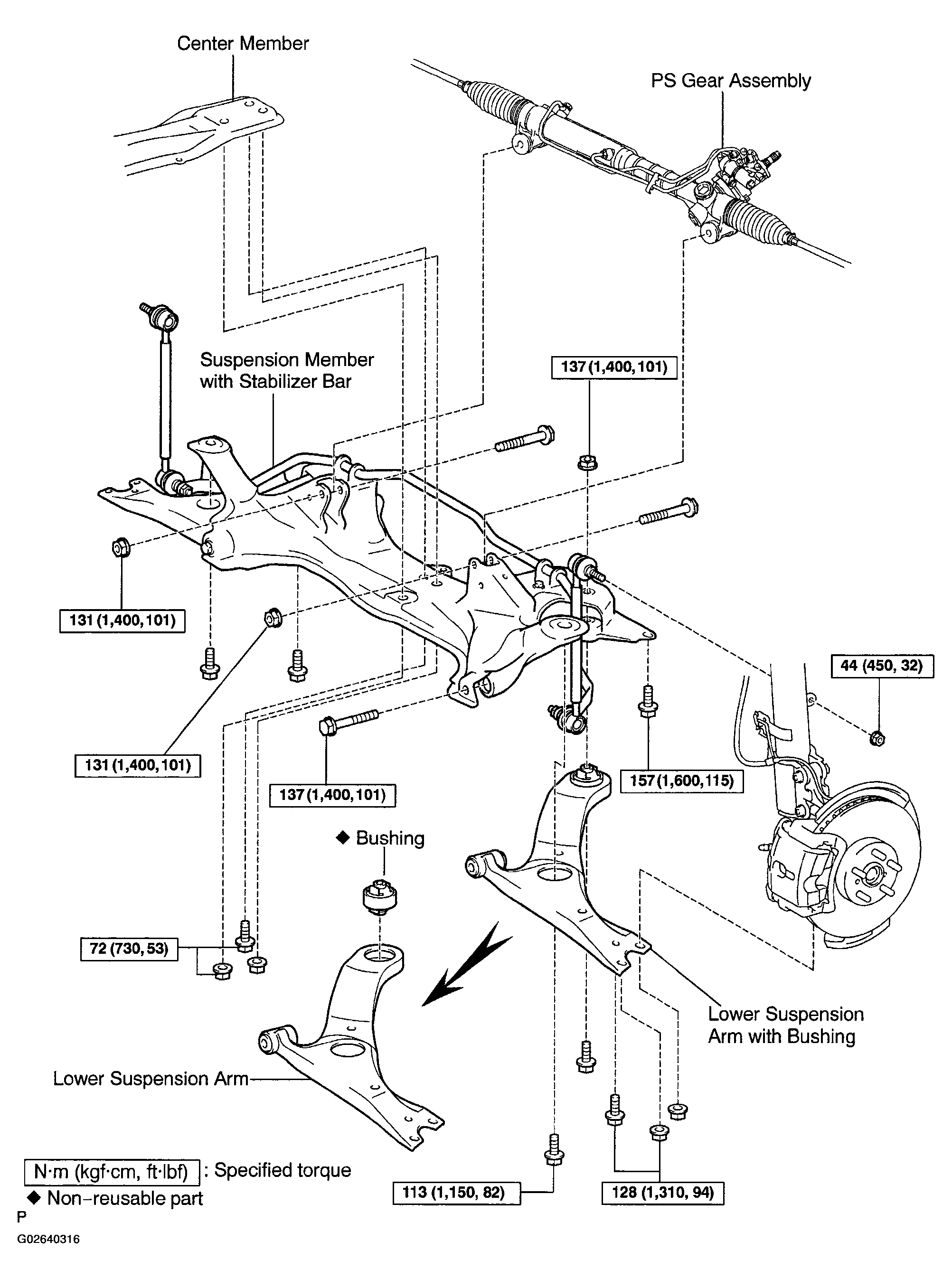

Fig 1: Front Lower Suspension Arm Replacement Components With Torque Specifications

G02640316

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
