Home >> Toyota >> 2005 >> RAV4 L, FWD, Standard >> Repair and Diagnosis >> Transmission >> Manual Trans >> Manual Transmission >> Output Shaft >> Components

Output Shaft: Components

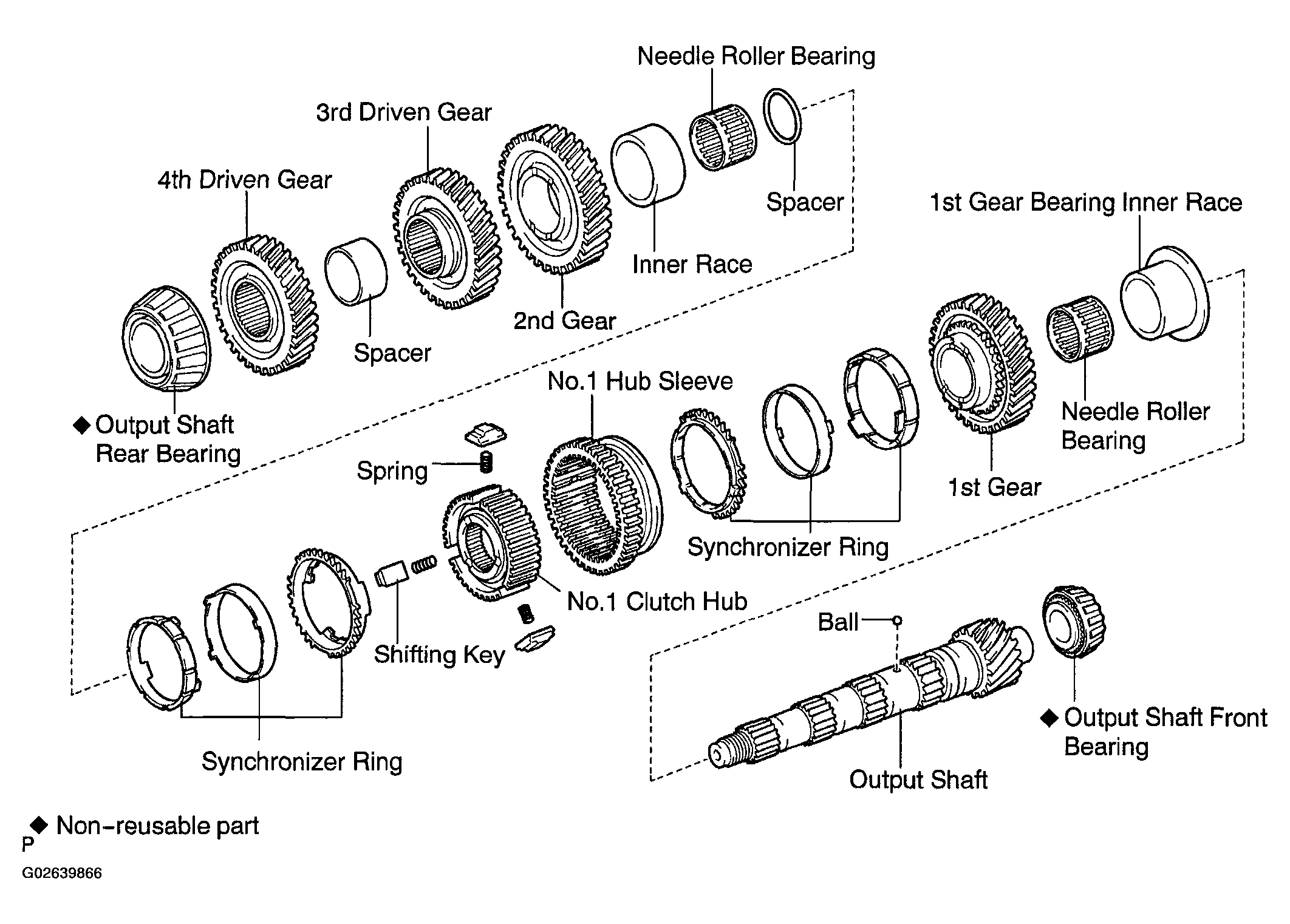

Fig 1: Exploded View Of Output Shaft

G02639866

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
