Power Steering Vane Pump: Removal

REMOVE RH ENGINE UNDER COVER
REMOVE DRIVE BELT
Hook SST on the hexagonal portion of the drive belt tensioner bracket, compress the drive belt tension by turning the drive belt tensioner bracket clockwise, and remove the drive belt.

SST 09249-63010

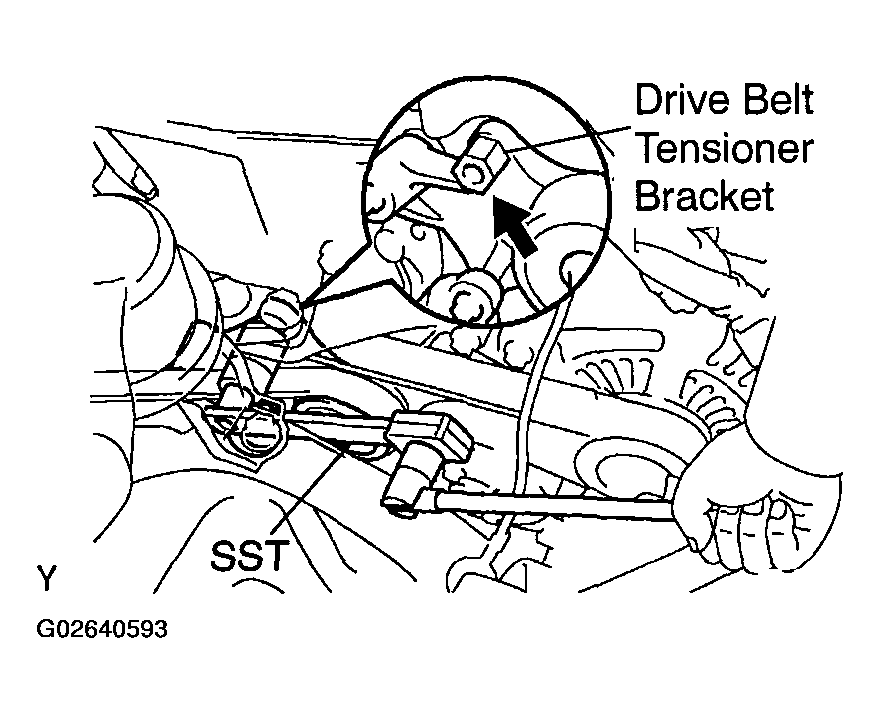

Fig 1: Removing Drive Belt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT SUCTION HOSE
Loosen the clip and disconnect the suction hose.

NOTE: Take care not to spill fluid on the drive belt.
DISCONNECT PRESSURE FEED TUBE
Remove the union bolt and gasket, and disconnect the pressure feed tube.

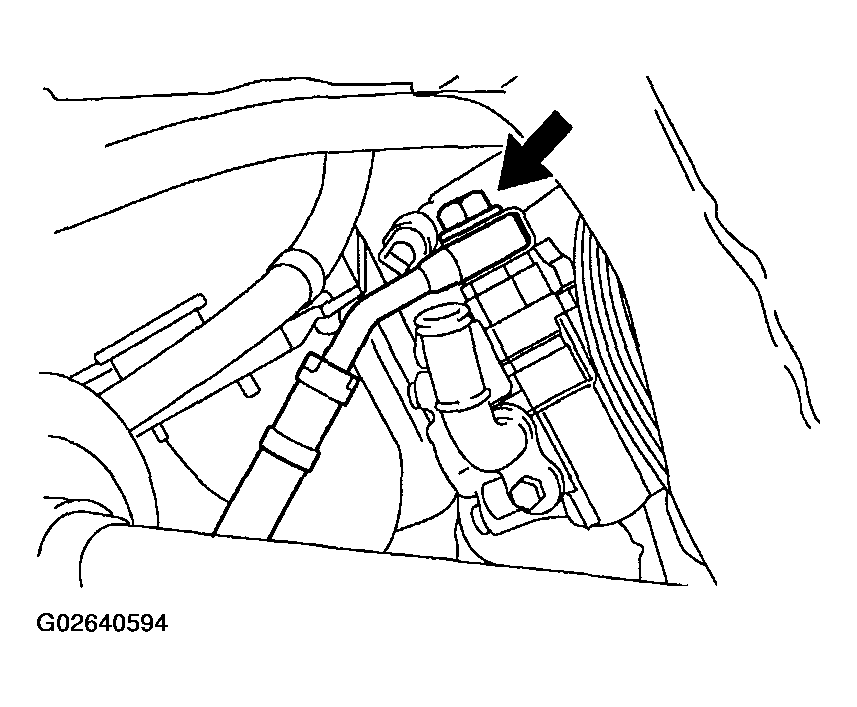

Fig 2: Disconnecting Pressure Feed Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
DISCONNECT OIL PRESSURE SWITCH CONNECTOR
REMOVE PS VANE PUMP ASSEMBLY
1. Using SST, loosen the bolt A sufficiently so that pump assembly can be removed.
  SST 09249-63010

  HINT:

  Bolt A cannot be removed.
2. Remove the bolt B and PS vane pump assembly.

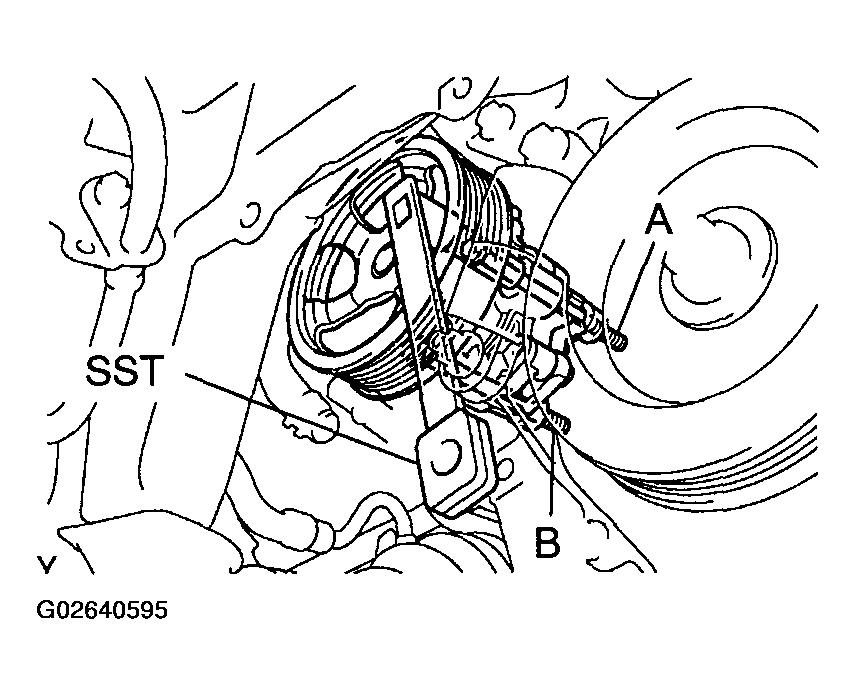

  Fig 3: Removing PS Vane Pump Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
