Seat Position Sensor Assembly: Installation

NOTE:
  • Never use SRS parts from another vehicle. When replacing parts, use new parts.
  • Never reuse the seat position sensor assembly involved in a collision when the airbag has deployed.
  • Never repair a sensor in order to reuse it.

HINT:

For step 2, refer to INSTALLATION .

  1. INSTALL SEAT POSITION SENSOR ASSEMBLY
    1. Connect the connector.
    2. Install the seat position sensor assembly with the bolt.

      Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

      NOTE:
      • Connection of the connector will be completed after the sensor assembly is installed.
      • Make sure the sensor assembly is installed with the specified torque.
      • If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
      • When installing the sensor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
      • After installation, shake the sensor assembly to check that there is no looseness.

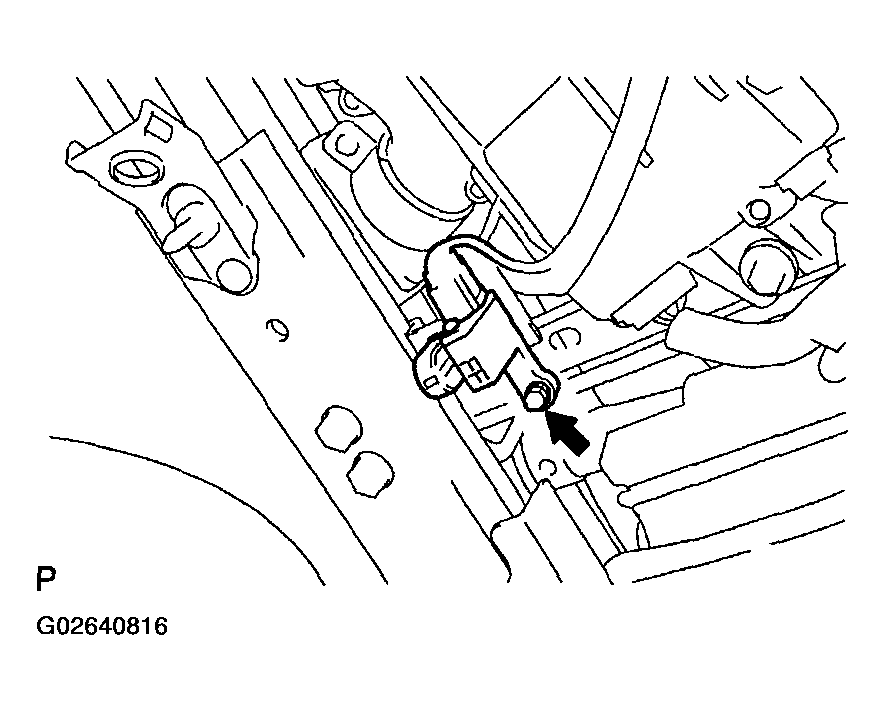

        Fig 1: Installing Seat Position Sensor Assembly
        G02640816Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL FRONT SEAT ASSEMBLY
