Airbag Sensor Assembly: Installation

NOTE:

Never use SRS parts from another vehicle. When replacing parts, replace them with new ones.
Never reuse the airbag sensor assembly involved in a collision with the airbag has deployed.
Never repair a sensor in order to reuse it.

INSTALL AIRBAG SENSOR ASSEMBLY
1. Install the airbag sensor assembly with the 3 bolts.
  Torque: 15 N.m (155 kgf.cm, 11 ft.lbf)

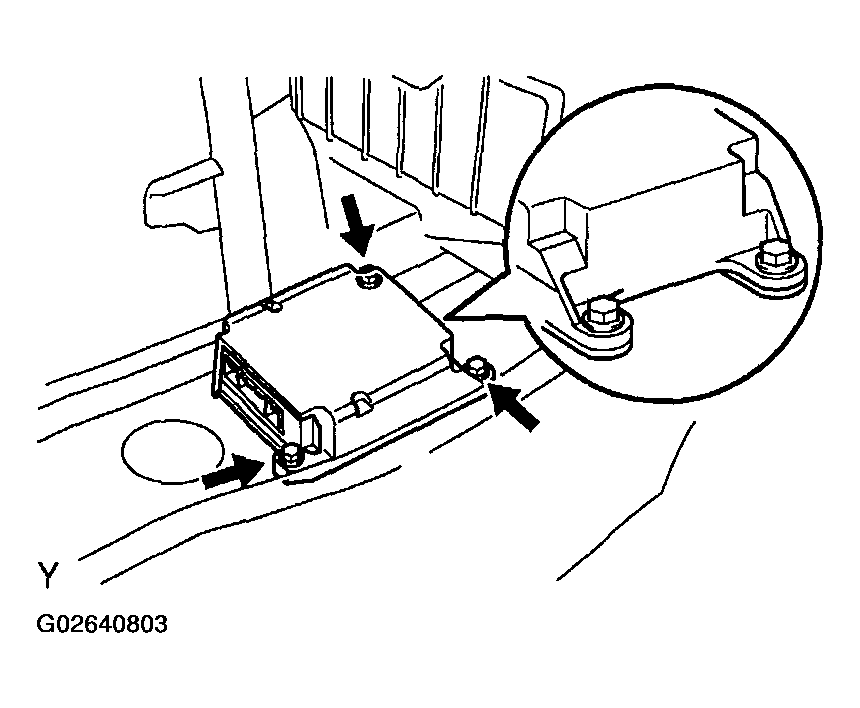

  Fig 1: Installing Airbag Sensor Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the airbag sensor connectors.
  NOTE:
  - Connection of the connector is done after the sensor assembly has been installed.
  - Make sure the sensor assembly is installed with the specified torque.
  - If the sensor assembly has been dropped, or there are cracks, dents or other defects in the case, bracket or connector, replace the sensor assembly with a new one.
  - When installing the senor assembly, take care that the SRS wiring does not interfere with other parts and is not pinched between other parts.
  - After installing, shake the sensor assembly to check for looseness.
A/T: INSTALL FLOOR SHIFT ASSEMBLY
M/T: INSTALL SHIFT LEVER ASSEMBLY
INSTALL NO. 1 AND NO. 2 INSTRUMENT PANEL UNDER COVERS
INSTALL FRONT CONSOLE BOX
INSTALL REAR CONSOLE BOX
INSTALL UPPER CONSOLE PANEL
INSTALL INSTRUMENT CLUSTER FINISH CENTER PANEL
