Airbag Sensor Assembly: Components

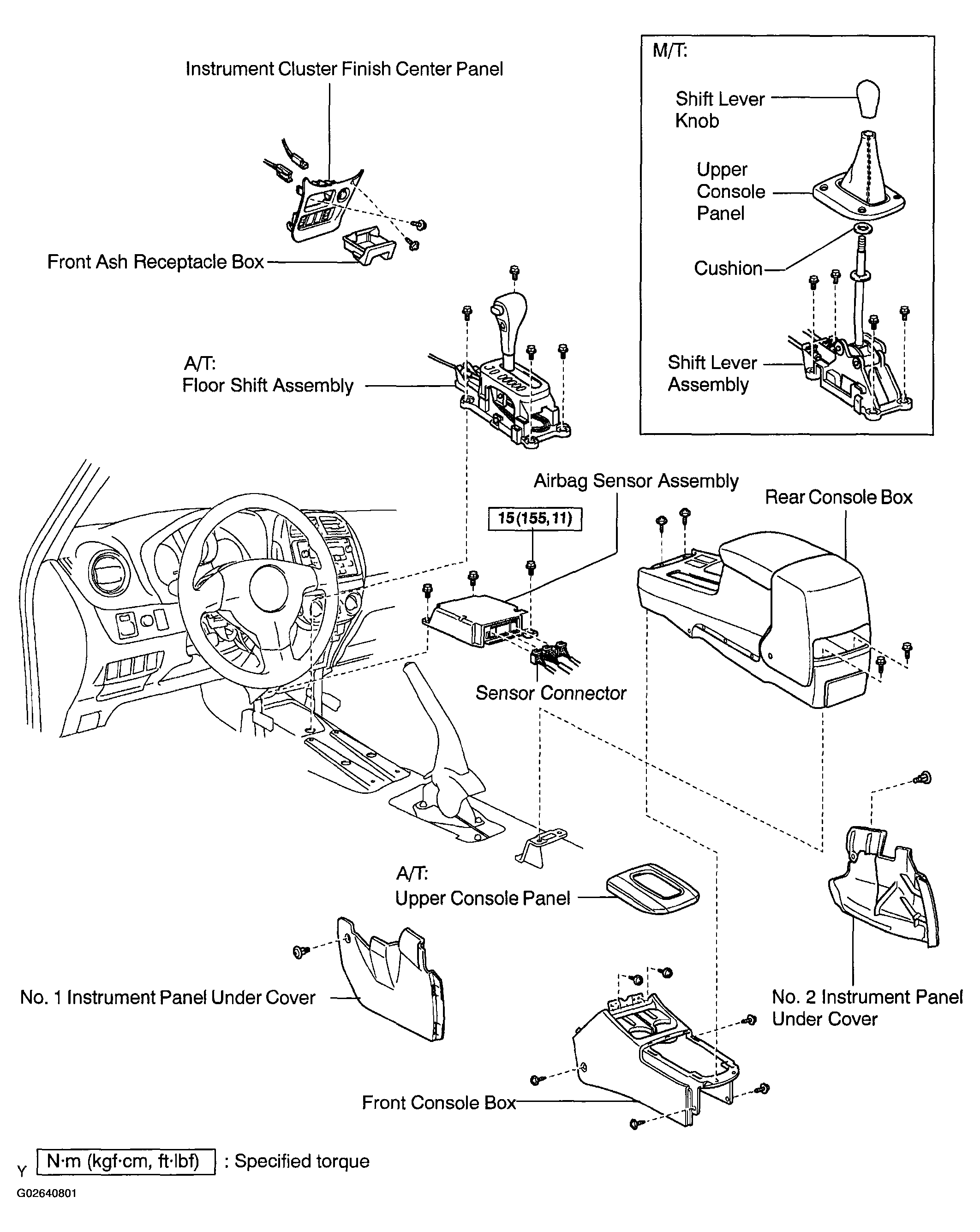

Fig 1: Airbag Sensor Assembly Replacement Components With Torque Specifications

G02640801

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
