DTC P0500: Vehicle Speed Sensor Malfunction: Wiring Diagram

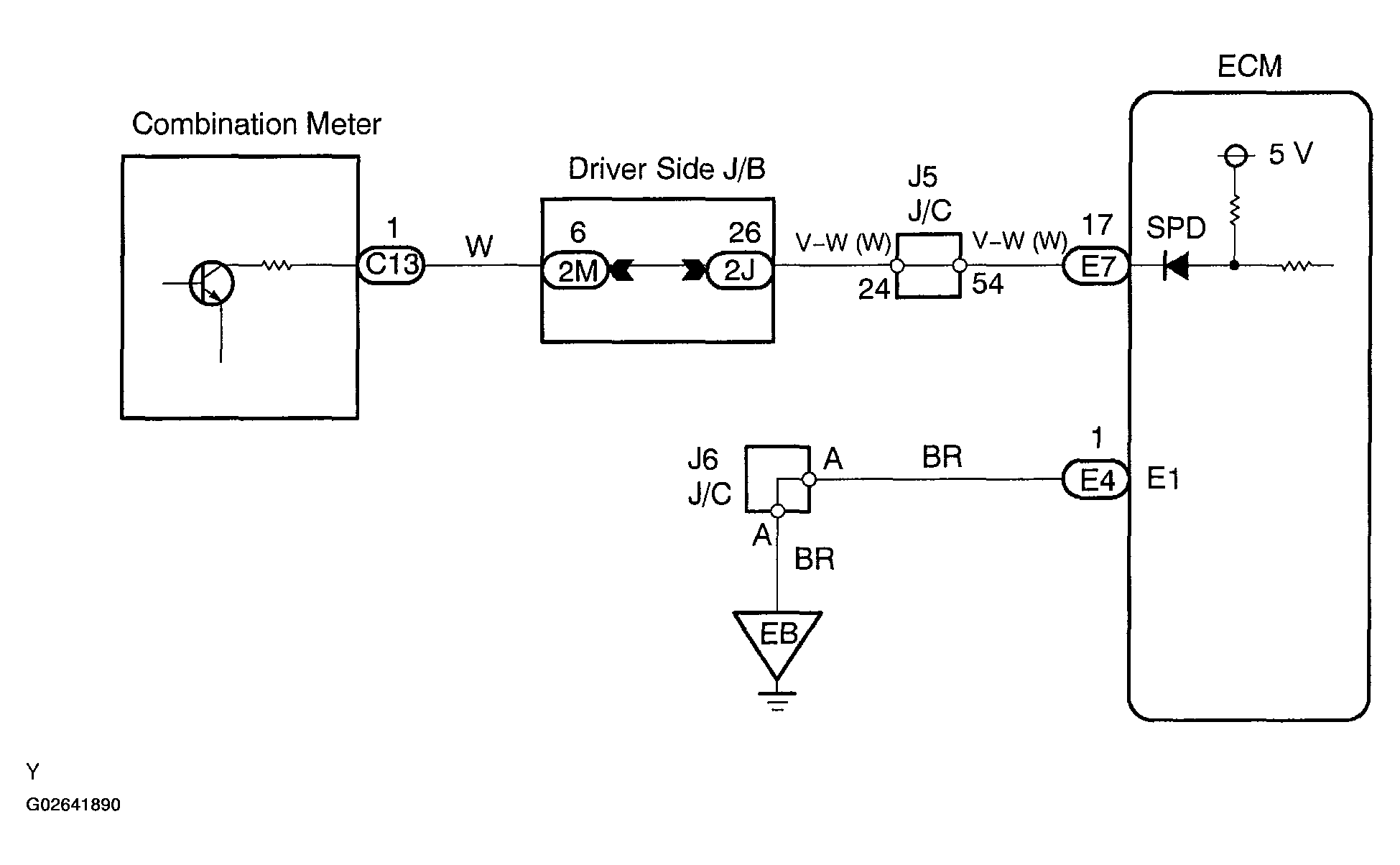

Fig 1: Wiring Diagram - Vehicle Speed Sensor Circuit

G02641890

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
