Inspection Procedure

PREPARATION

1. Remove the ECM with the connectors being connected.
2. Turn the ignition switch ON.

CHECK:

Measure the voltage between terminal PI of the ECM connector and the body ground when the main switch is ON and OFF.

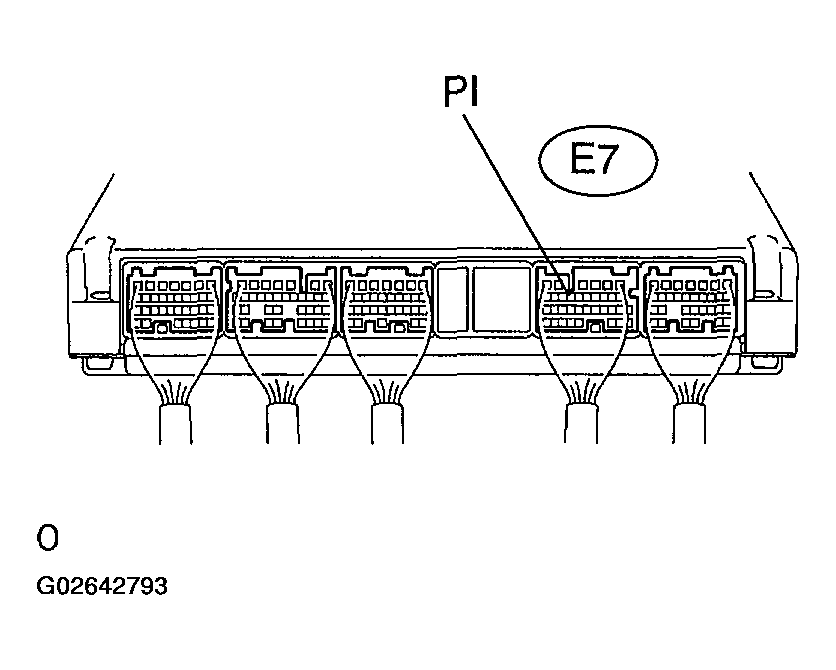

Fig 1: Identifying PI Of ECM Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

OK:

1. OK: Proceed to next circuit inspection shown on problem symptoms table (See  PROBLEM SYMPTOMS TABLE  ).
2. NG: Go To Next Step.

1. NG: Replace combination meter.
2. OK: Check and replace engine ECU (See  HOW TO USE THE DIAGNOSTIC CHART AND INSPECTION PROCEDURE  ).
