Seat Belt: Components

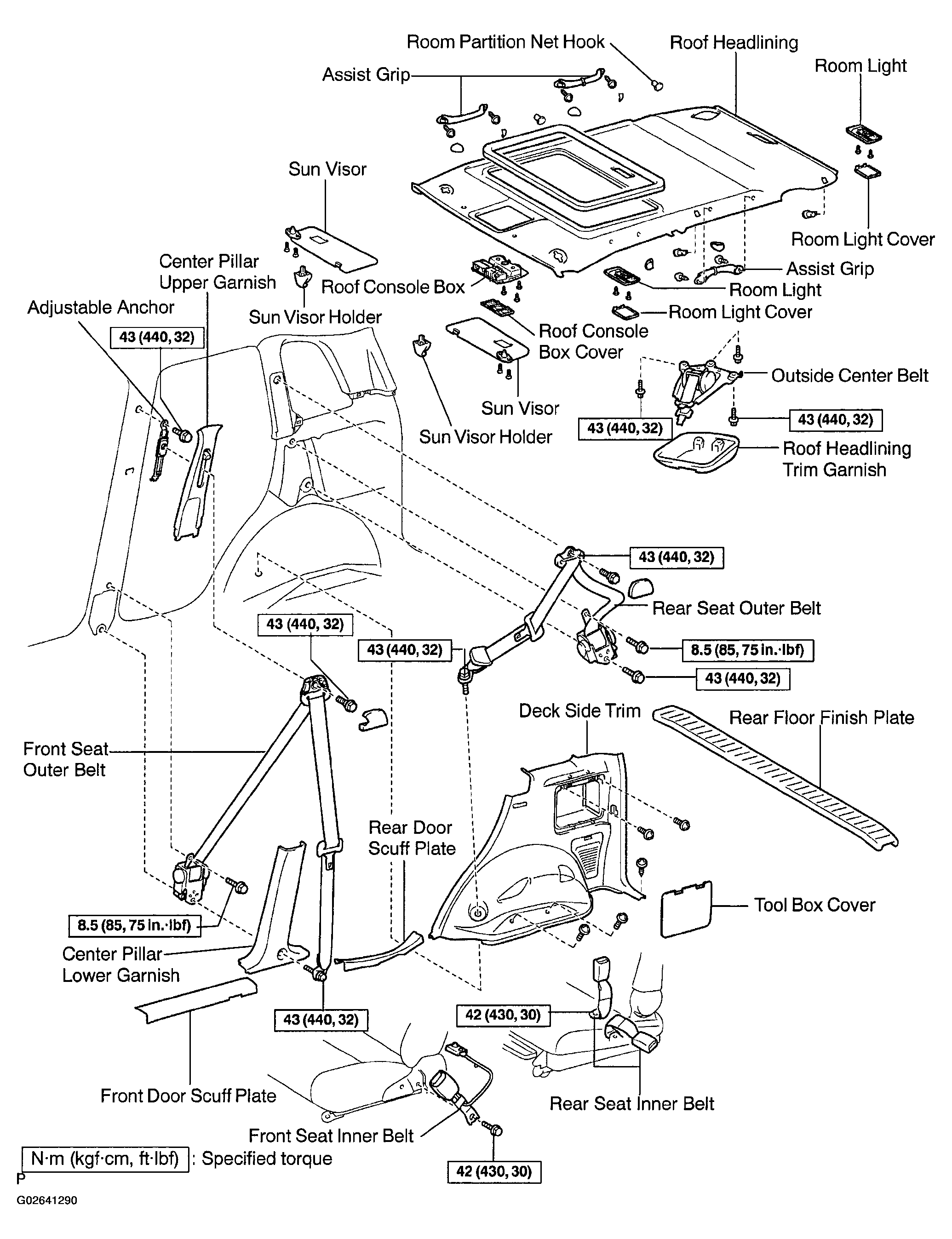

Fig 1: Seat Belt Replacement Components With Torque Specifications

G02641290

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
