VSV For Canister Closed Valve (CCV): Components

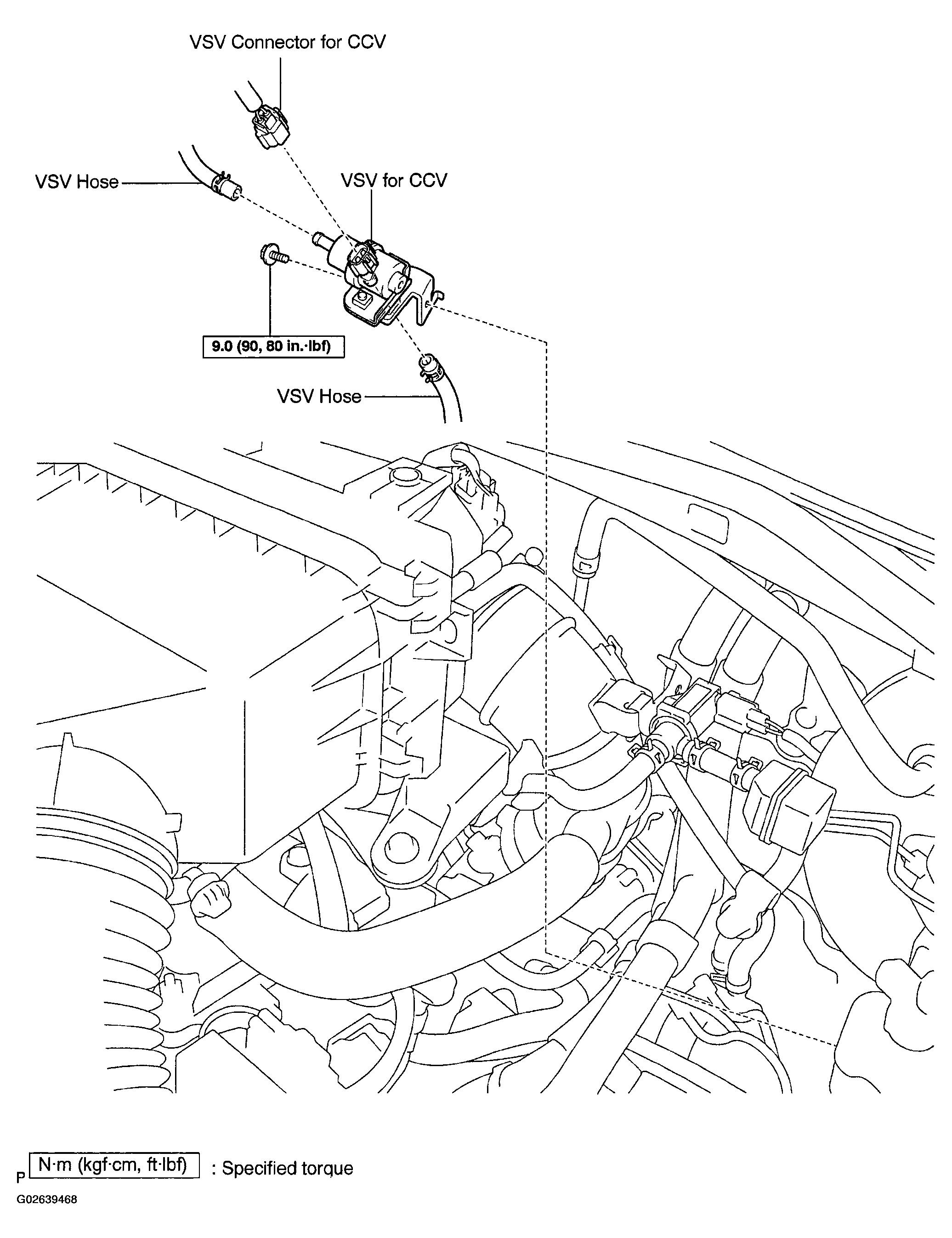

Fig 1: Identifying VSV For Canister Closed Valve (CCV) Components & Torque specification

G02639468

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
