Parts Layout And Schematic Drawing: Drawing

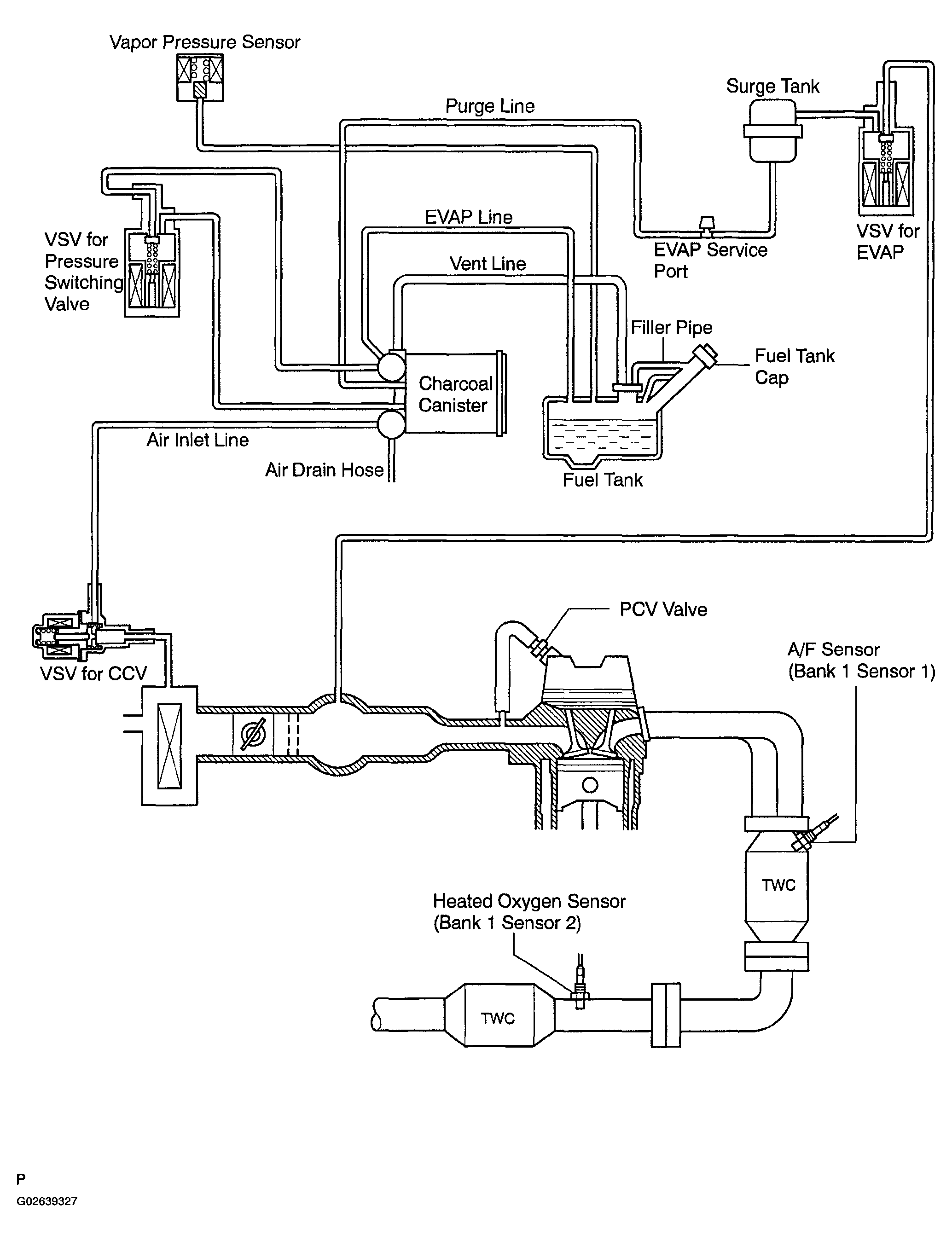

Fig 1: Drawing - Emission Control Systems

G02639327

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
