Combination Meter: Circuit

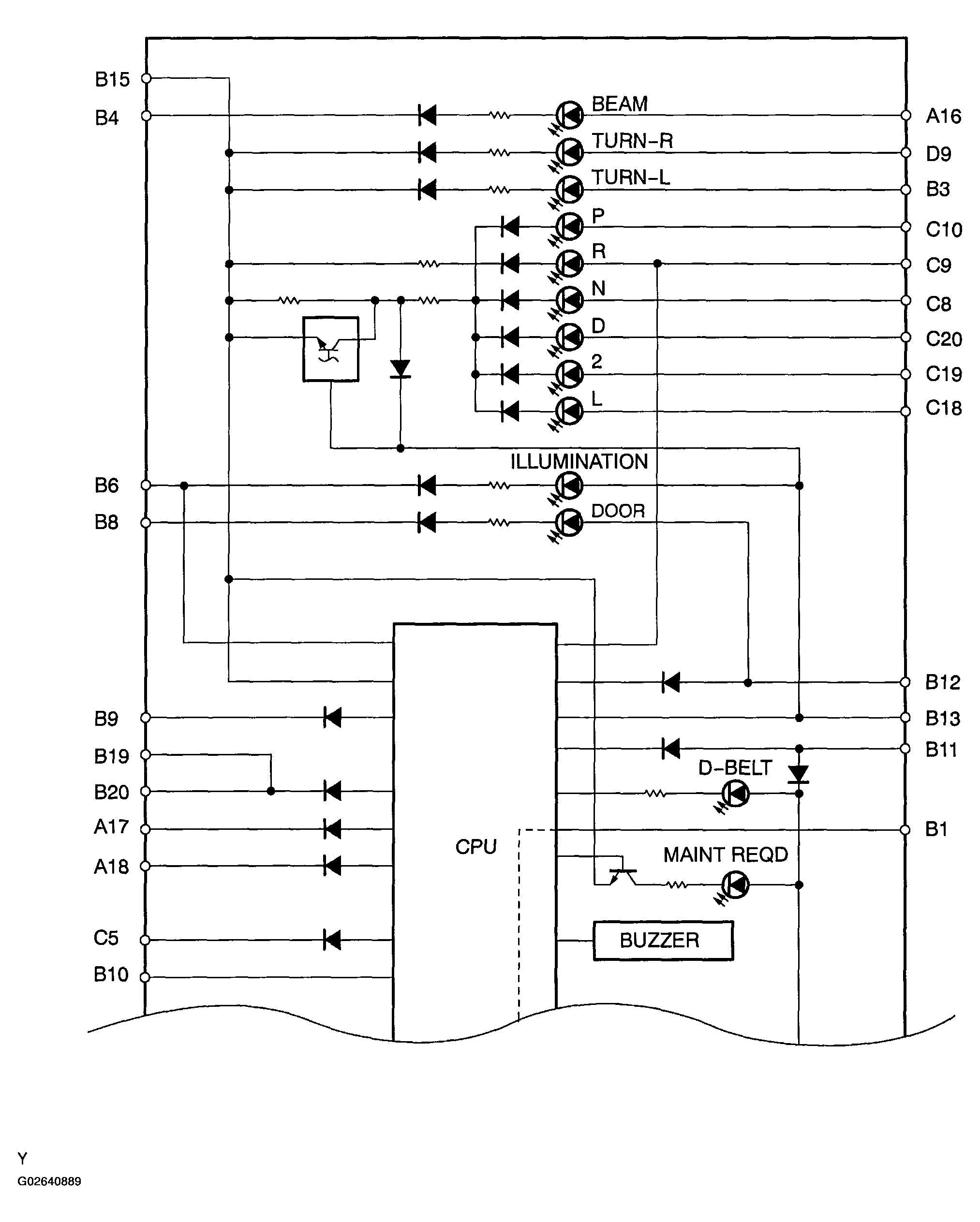

Fig 1: Circuit Diagram - Combination Meter (1 Of 3)
G02640889Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

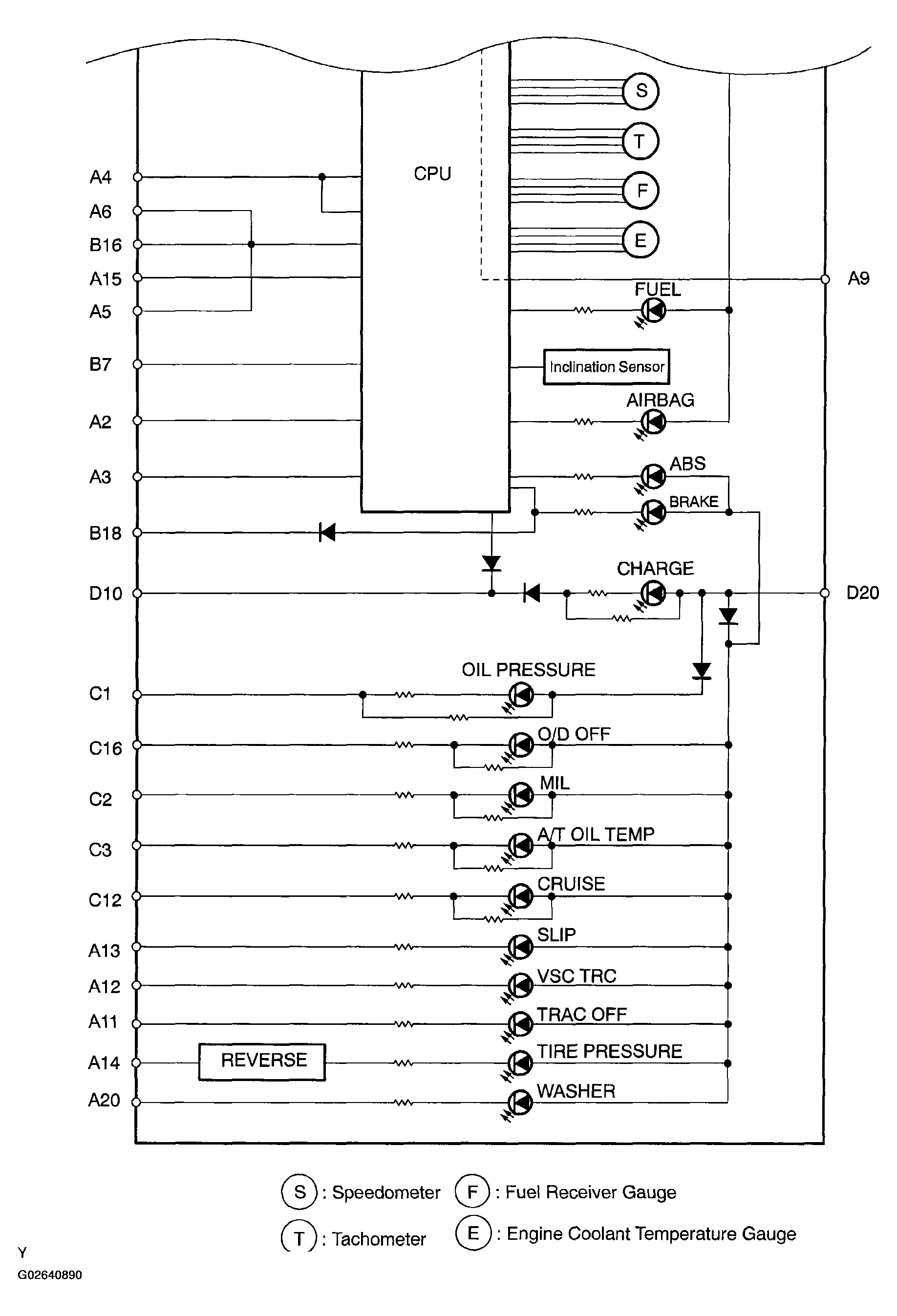

Fig 2: Circuit Diagram - Combination Meter (2 Of 3)
G02640890Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

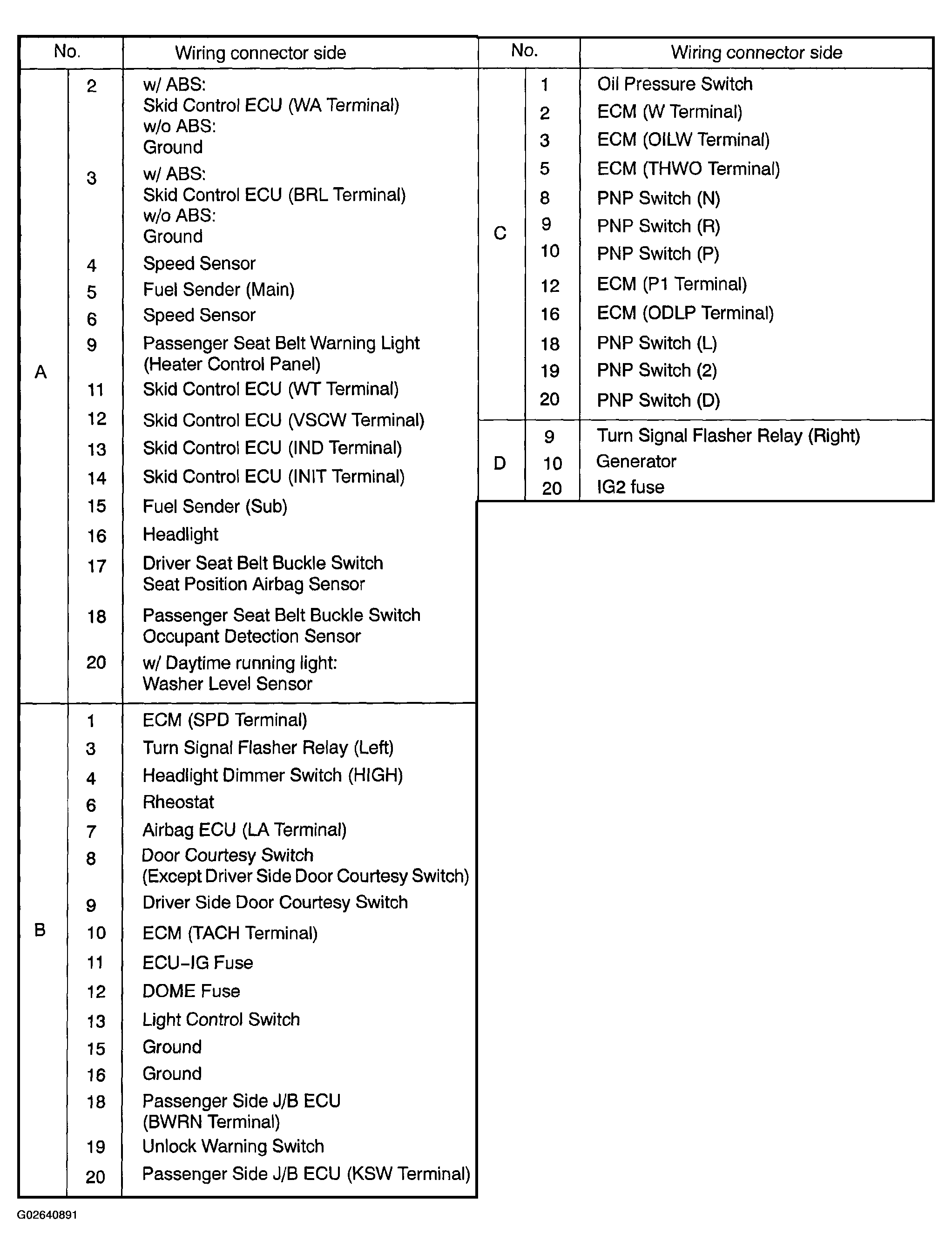

Fig 3: Circuit Diagram - Combination Meter (3 Of 3)
G02640891Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
