Rear Door: Components

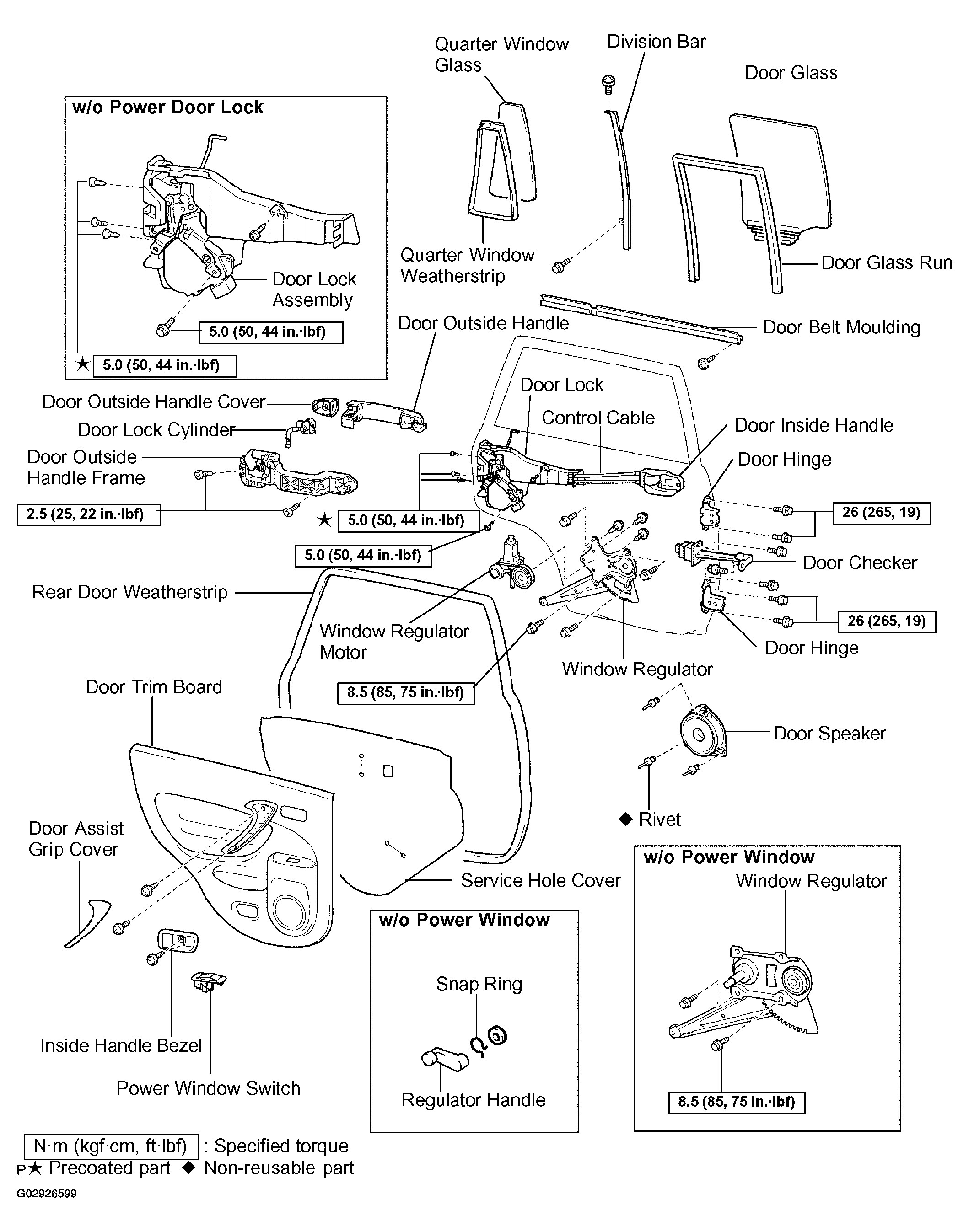

Fig 1: Rear Door Replacement Components With Torque Specifications

G02926599

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
