Front Door: Adjustment

Using SST, adjust the door by loosening the body side hinge bolts.

SST 09812-00010

Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

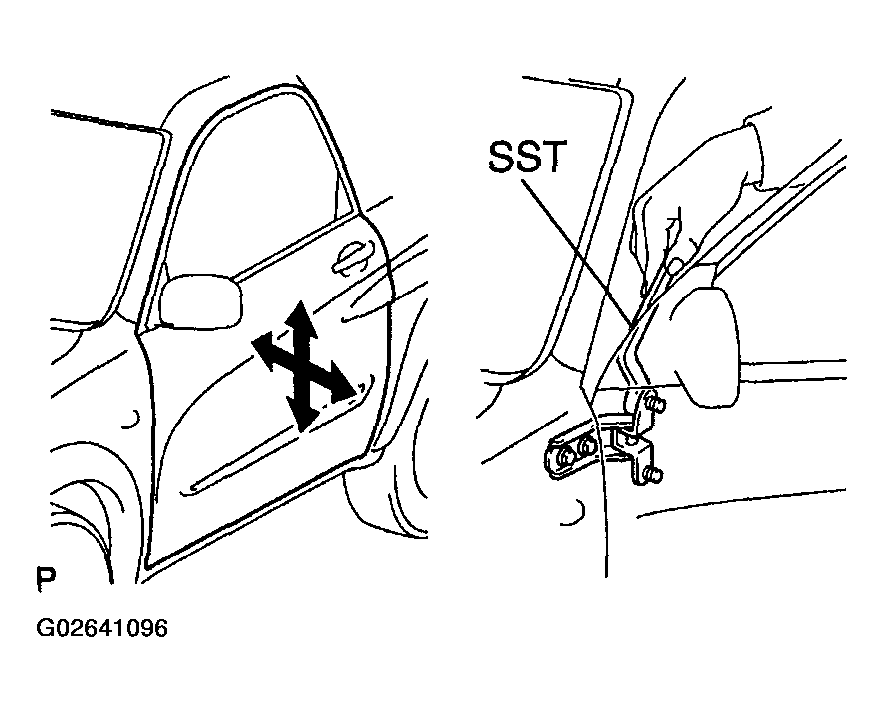

Fig 1: Adjusting Door In Forward/Rearward And Vertical Directions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Loosen the door side hinge bolts to adjust.

HINT:

Substitute the standard bolt for the centering bolt (See ADJUSTMENT ).

Torque: 26 N.m (265 kgf.cm, 19 ft.lbf)

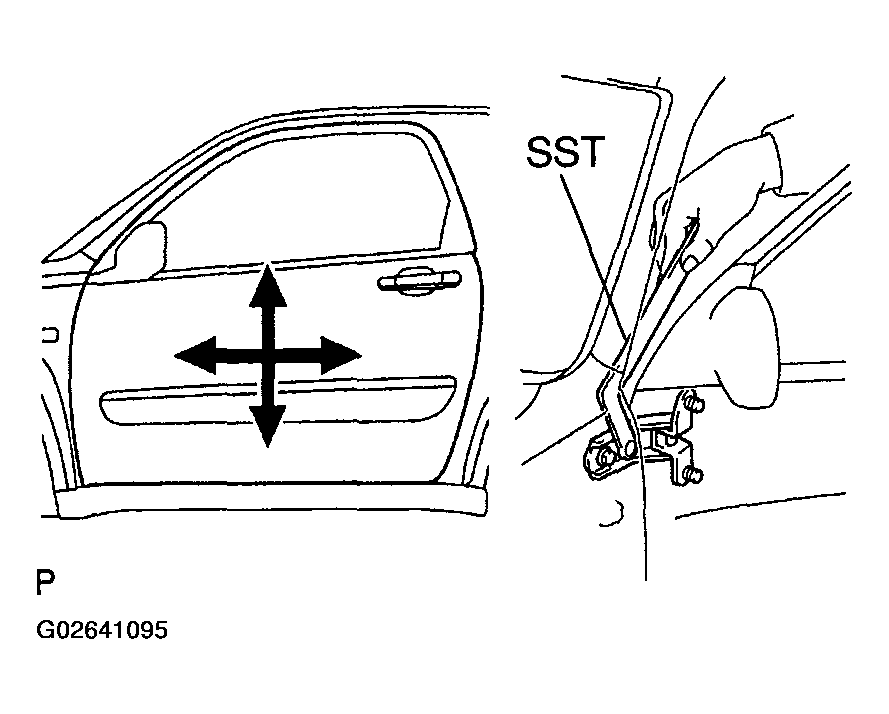

Fig 2: Adjusting Door In Left/Right And Vertical Directions

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Check that the door fits and door lock linkages are adjusted correctly.
2. Loosen the striker mounting screws to adjust.

   Torque: 23 N.m (235 kgf.cm, 17 ft.lbf)

3. Using a plastic hammer, tap the striker to adjust it.
   Fig 3: Adjusting Door Lock Striker

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
