Back Door Glass: Installation

1. Using a knife, cut away any rough areas on the body.

   HINT:

   Leave as much of the adhesive on the body as possible.

Fig 1: Cleaning And Shaping Contact Surface Of Adhesive
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Clean the cutting surface of the adhesive with a piece of shop rag saturated in cleaner.

   HINT:

   Even if all the adhesive has been removed, clean the body.

1. Remove the damaged spacers.
2. Using a scraper, remove the adhesive sticking to the glass.
Fig 2: Cleaning Removed Glass
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Clean the glass with cleaner.
   NOTE:

   • Be careful not to damage the glass.
   • Do not touch the glass after cleaning it.

Attach 2 new spacers on the edge of the glass as shown.

Fig 3: Installing New Spacers On Edge Of Glass

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Place the glass in correct position.
2. Check that all contacting parts of the glass rim are perfectly even and do not make contact with the fasteners.
3. Place the reference marks between the glass and body.
4. Remove the glass.
   Fig 4: Placing Reference Marks Between Glass And Body

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

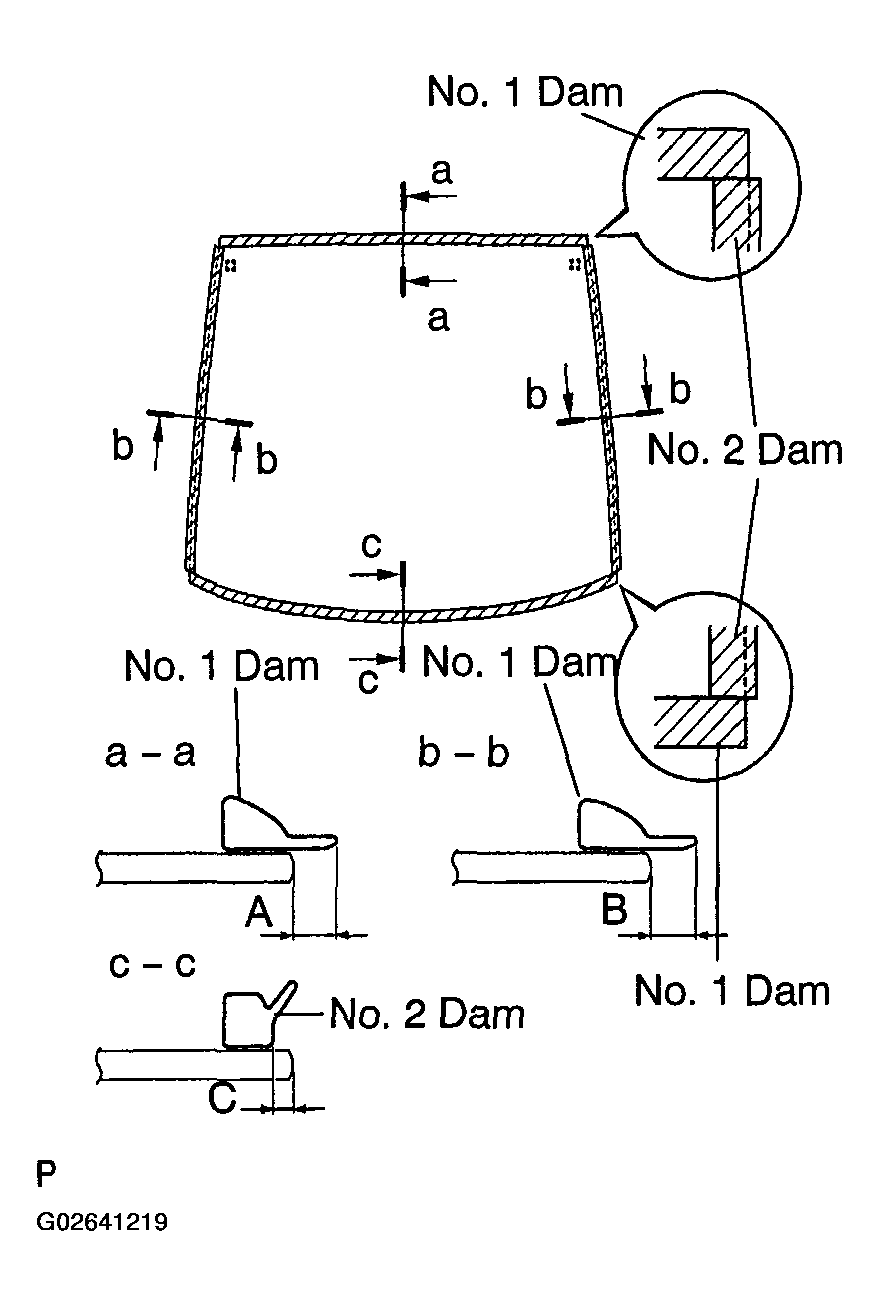

Install 2 new dams and the outside lower moulding with adhesive tape as shown.

A:  5.2 mm (0.205 in.)

B:  5.2 mm (0.205 in.)

C:  1.7 mm (0.067 in.)

Fig 5: Installing New Dams And Outside Lower Moulding

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

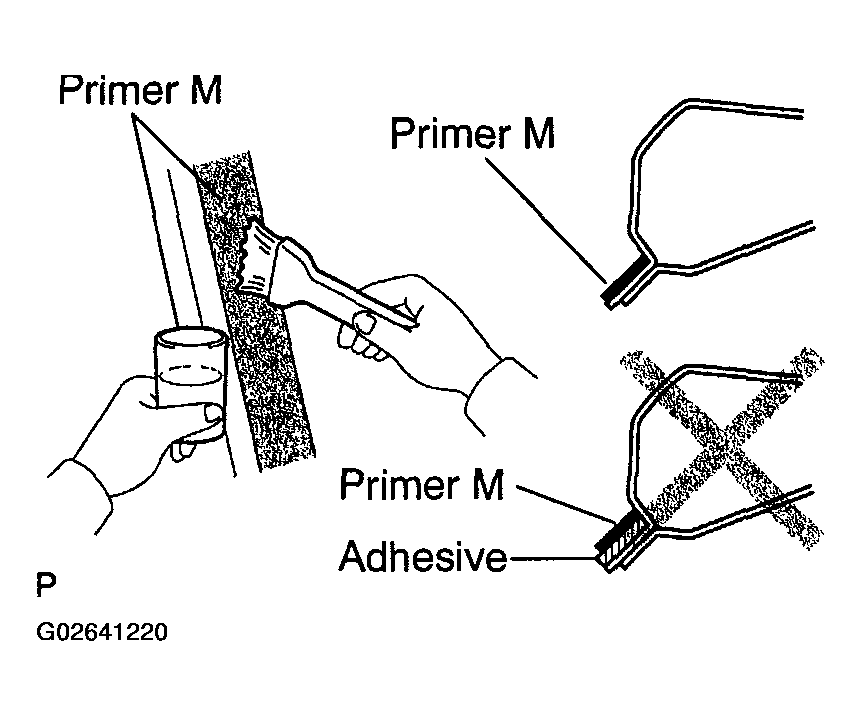

Using a brush, coat Primer M to the exposed part of body on the vehicle side.

Fig 6: Coating Contact Surface Of Body With Primer "M"

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a brush or sponge, coat the edge of the glass and the contact surface with Primer G as shown.
2. When the primer is coated wrongly to the area other than the specified, wipe it off with a clean shop rag before the primer dries.

Fig 7: Coating Contact Surface Of Glass With Primer "G"

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Cut off the tip of the cartridge nozzle.

   Part No. 08850-00801 or equivalent

   HINT:

   After cutting off the tip, use all adhesive within the time described in the table below.

   TEMPERATURE TACKFREE TIME



   Temperature	Tackfree time
   35° C (95° F)	15 minutes
   20°C (68°F)	100 minutes
   5°C (41°F)	8 hours

2. Load the cartridge into the sealer gun.

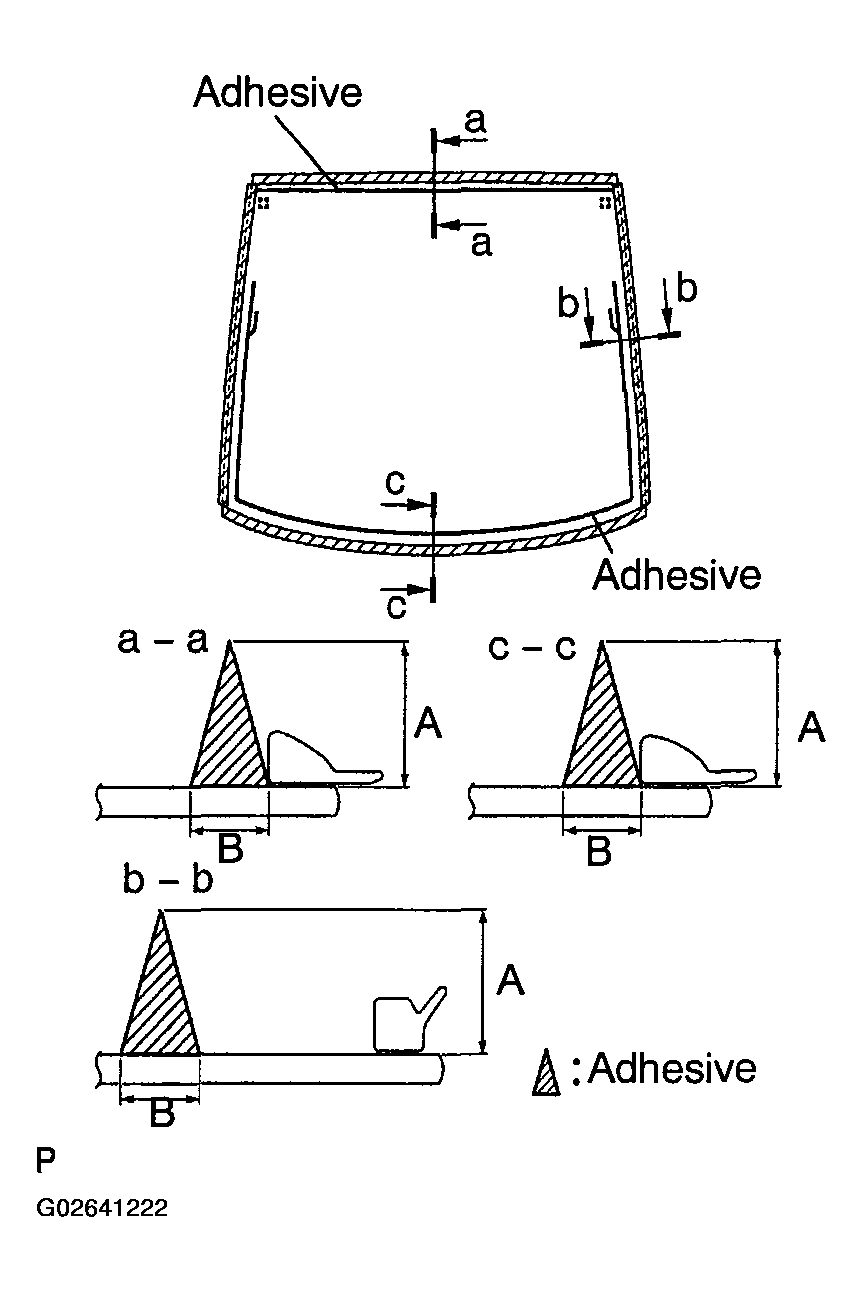

3. Coat the glass with adhesive as shown.

   A:  12.0 mm (0.472 in.)

   B:  8.0 mm (0.315 in.)

Fig 8: Coating Glass With Adhesive
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Install the back door glass to the back door.

   HINT:

   Confirm that the dams is attached to the back door panel.

2. Hold the back door glass in place securely with a protective tape or equivalent until the adhesive hardenes.
   NOTE: Take care not to drive the vehicle during the time described in the table below.
   TEMPERATURE MINIMUM TIME PRIOR TO DRIVING VEHICLE



   Temperature	Minimum time prior to driving the vehicle
   35°C(95°F)	1.5 hours
   20°C(68°F)	5 hours
   5°C(41°F)	24 hours

1. Conduct a leak test after the hardening time has elapsed.
2. Seal any leak with auto glass sealer.

   Part No. 08833-00030 or equivalent
