Back Door Glass: Components

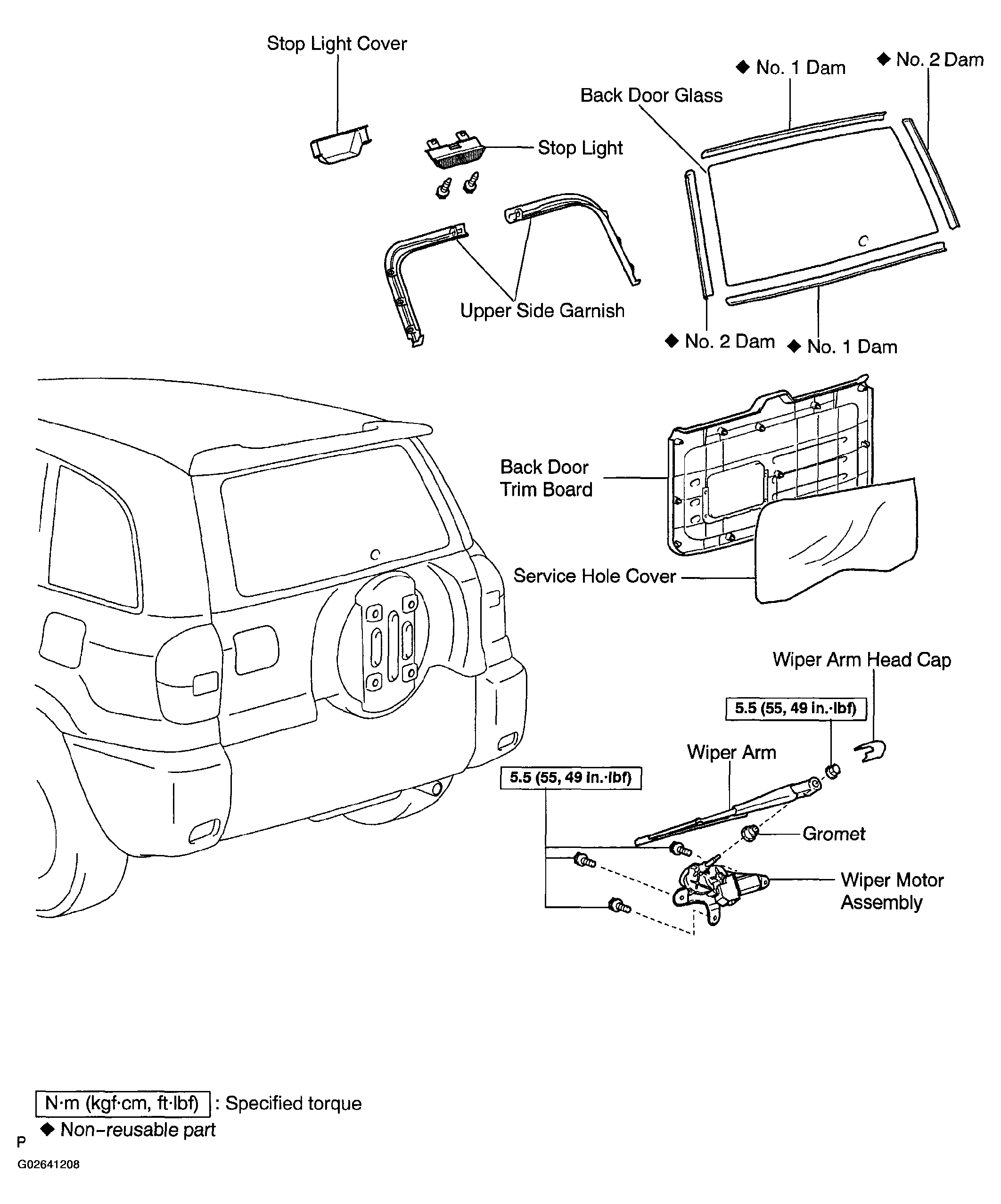

Fig 1: Back Door Glass Replacement Components With Torque Specifications

G02641208

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
