Ignition Switch And Key Unlock Warning Switch: Location

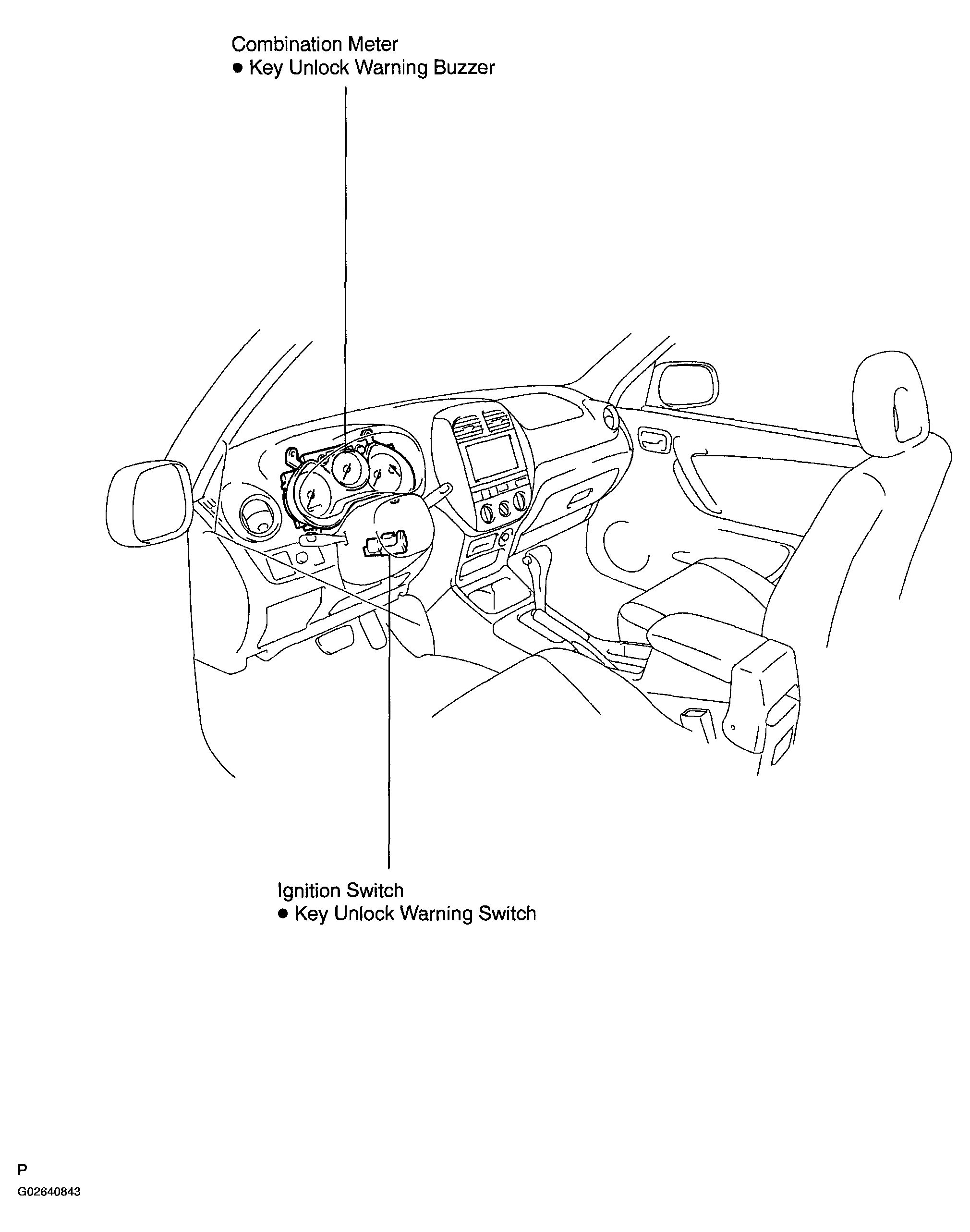

Fig 1: Identifying Ignition Switch And Key Unlock Warning Switch Location

G02640843

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
