Power Door Lock Control System: Location

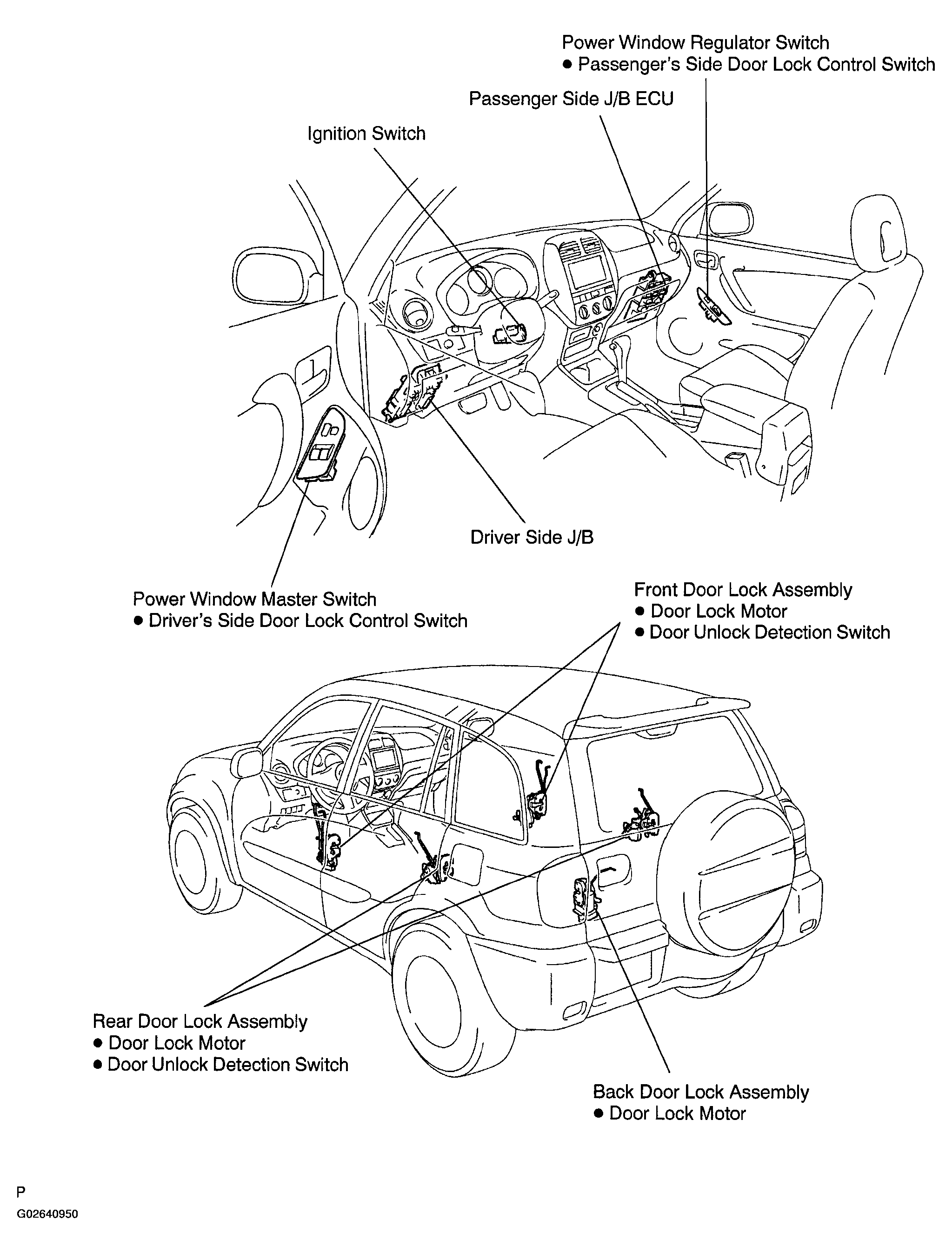

Fig 1: Identifying Location Of Power Door Lock Control System Components

G02640950

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
