Pressure Switch: Removal

  1. DISCHARGE REFRIGERANT FROM REFRIGERANT SYSTEM (See  EVACUATING  )
  2. REMOVE PRESSURE SWITCH
    1. Disconnect the pressure switch connector.
    2. Remove the pressure switch from the liquid tube.

      HINT:

      Lock the switch mount on the tube with an open end wrench, being careful not to deform the tube, and remove the switch.

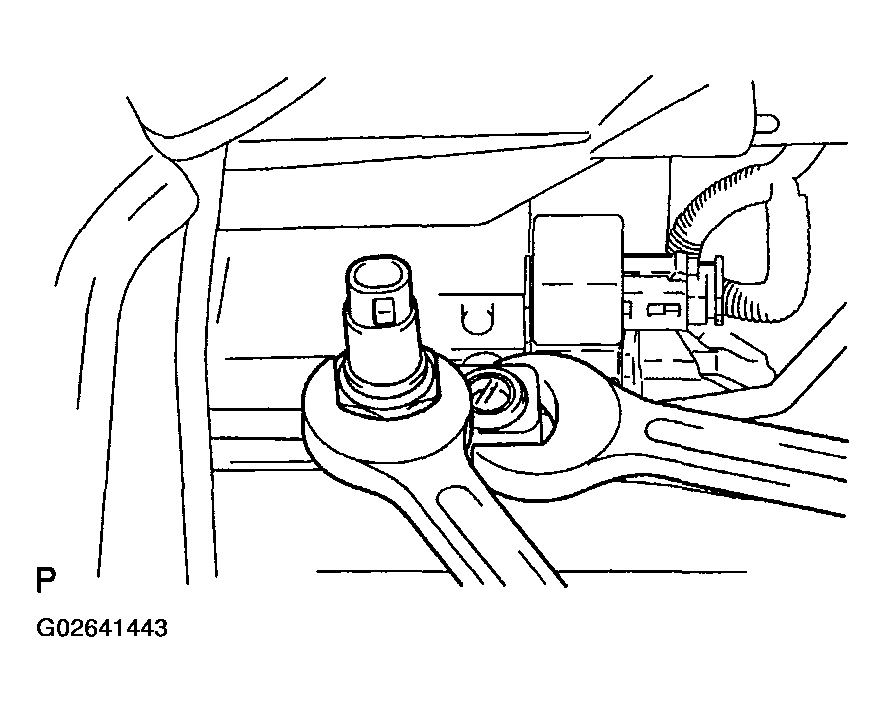

      Fig 1: Removing Pressure Switch
      G02641443Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
