Pressure Switch: Installation

INSTALL PRESSURE SWITCH
1. Coat a new O-ring with compressor oil.
2. Install the pressure switch to the liquid tube.
  Torque: 9.8 N.m (100 kgf.cm, 87 in.lbf)

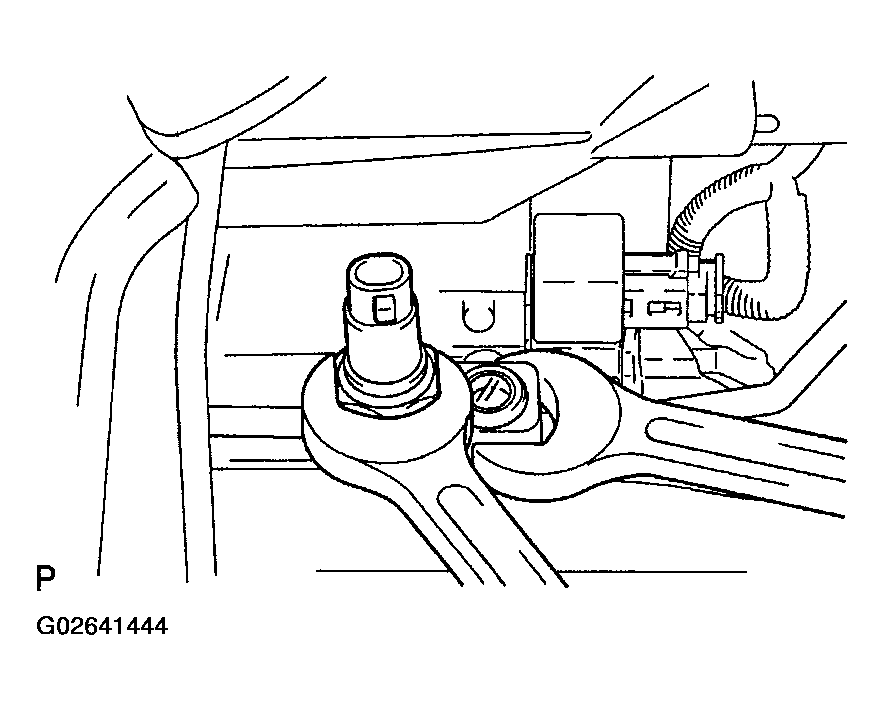

  Fig 1: Installing Pressure Switch To Liquid Tube
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
CHARGE REFRIGERANT TO REFRIGERANT SYSTEM (See CHARGING )
1. Evacuate air from the refrigeration system.
2. Charge system with refrigerant and inspect for leakage of refrigerant.
  Specified amount: 500 +/- 50 g (17.64 +/- 1.76 oz.)
