Heater Control Assembly: Components

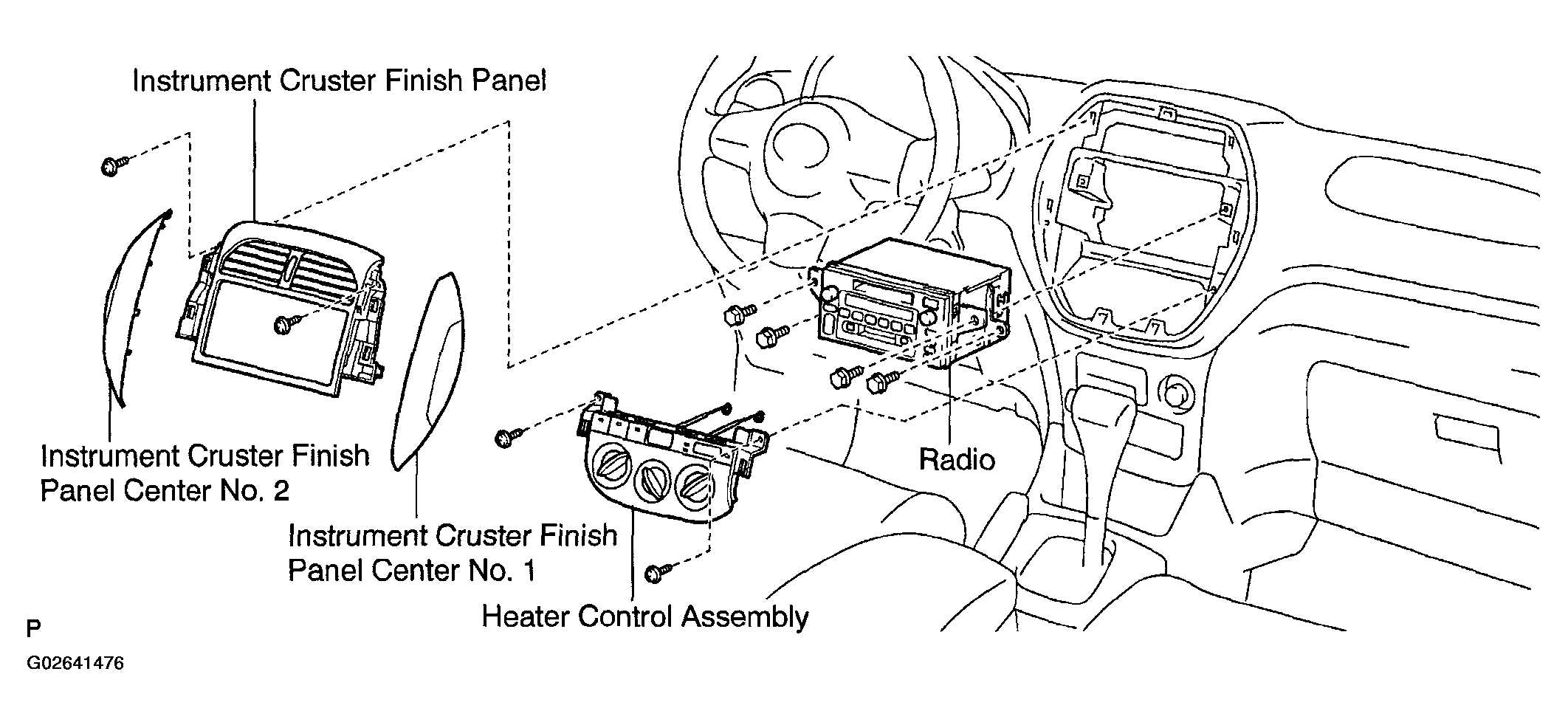

Fig 1: Identifying Heater Control Assembly Components (1 Of 2)
G02641476Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

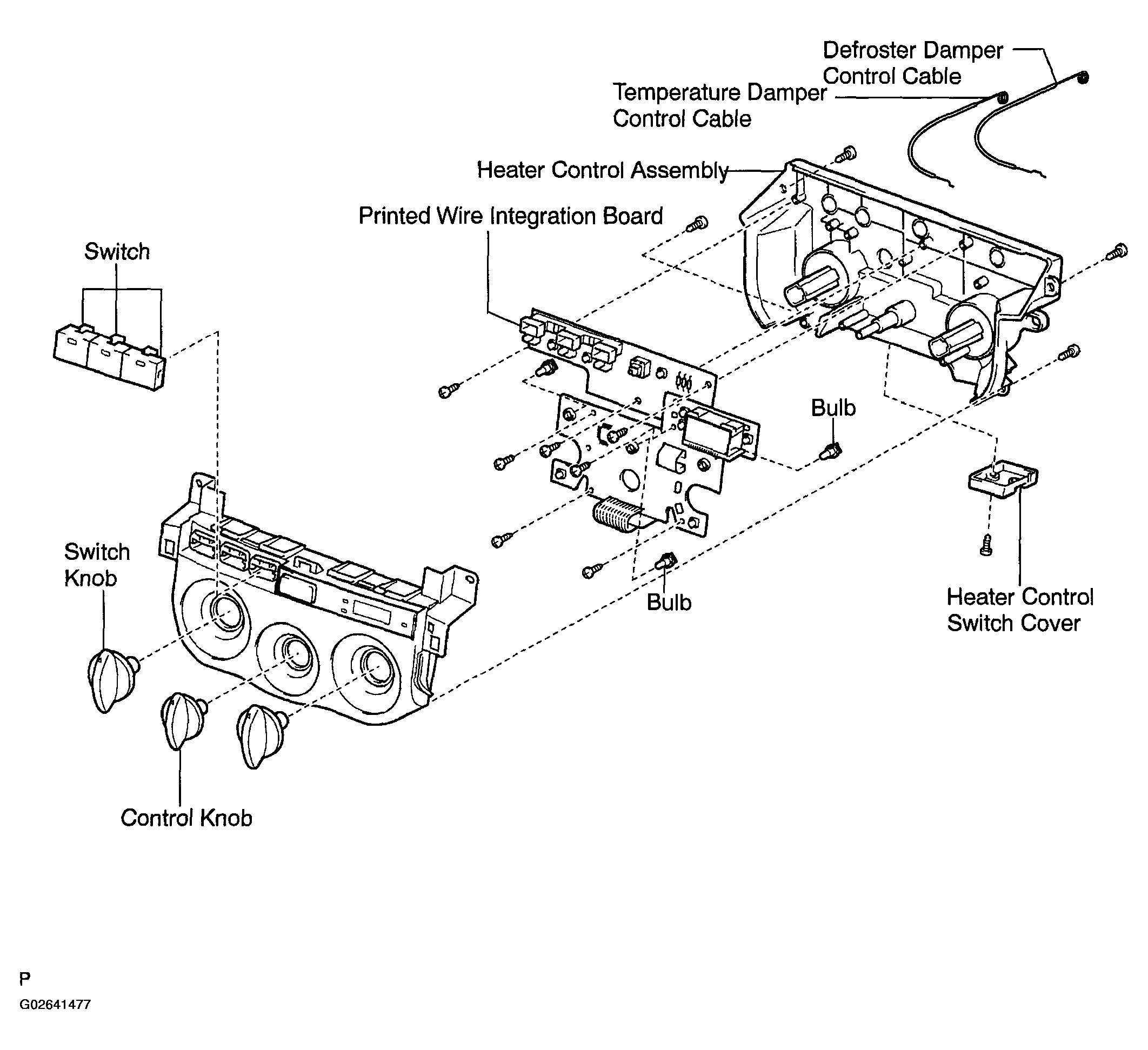

Fig 2: Identifying Heater Control Assembly Components (2 Of 2)
G02641477Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
