Drive Belt: Replacement

  1. REMOVE DRIVE BELT

    Hook SST on the hexagonal portion of the drive belt tensioner bracket, compress the drive belt tension by turning the drive belt tensioner bracket clockwise, and remove the drive belt.

    SST 09249-63010

  2. REINSTALL DRIVE BELT

    Hook SST on the hexagonal portion of the drive belt tensioner bracket, compress the drive belt tension by turning the drive belt tensioner bracket clockwise, and install the drive belt.

    SST 09249-63010

    NOTE: Compress the drive belt tensioner by taking 3 seconds or more and installed the drive belt.

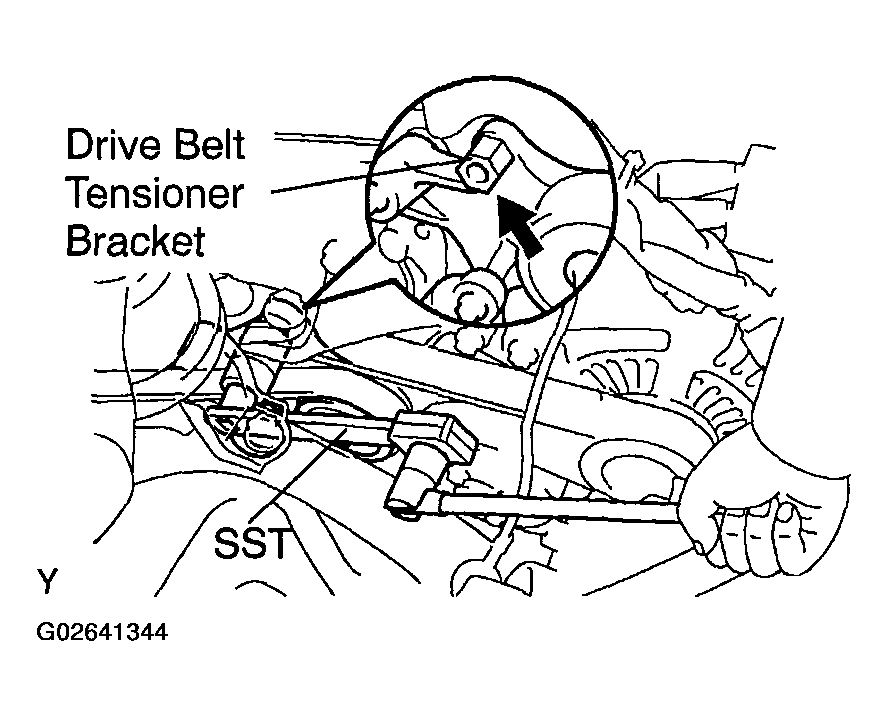

    Fig 1: Removing/Installing Drive Belt
    G02641344Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. CHECK DRIVE BELT INSTALLATION CONDITION
    1. Check that the belt tensioner movers downward when the drive belt is pressed down at the points indicated in Fig 2.
    2. Check the alignment of the belt tensioner pulley to make sure the drive belt will not slip off the pulley.

      If necessary, replace the belt tensioner.

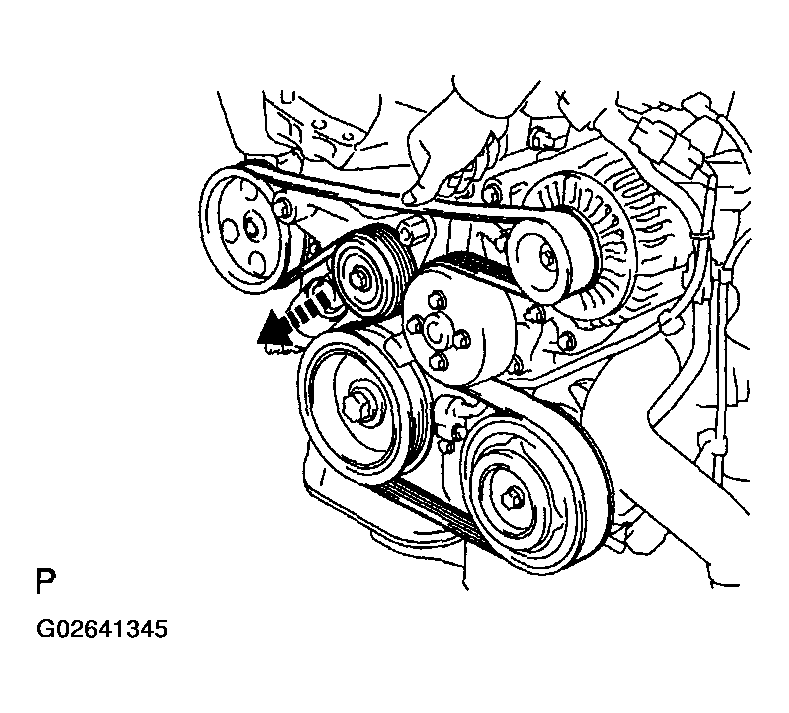

      Fig 2: Checking Drive Belt Installed Condition
      G02641345Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
