Air Conditioning: Condenser: Removal

DISCHARGE REFRIGERANT FROM REFRIGERATION SYSTEM
REMOVE FRONT BUMPER (See COMPONENTS )
REMOVE LIQUID TUBE AND DISCHARGE TUBE
Remove the 2 bolts and both tubes.

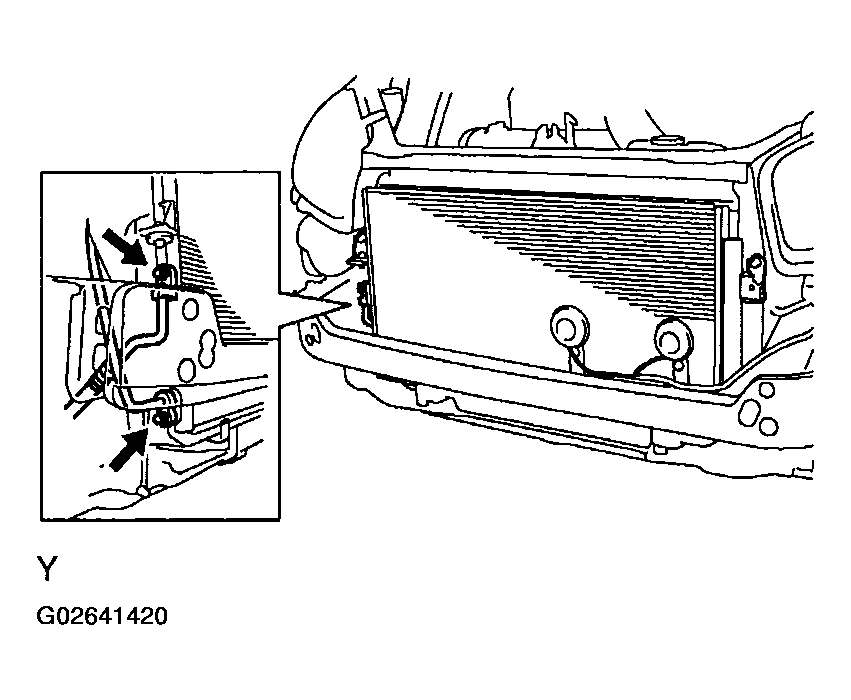

Fig 1: Removing Liquid Tube And Discharge Tube
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

NOTE: Cap the open fittings immediately to keep moisture out of the system.
REMOVE CONDENSER
1. Remove the 2 bolts.
2. Pull up the condenser.
  NOTE: Be careful not to damage the radiator and condenser.

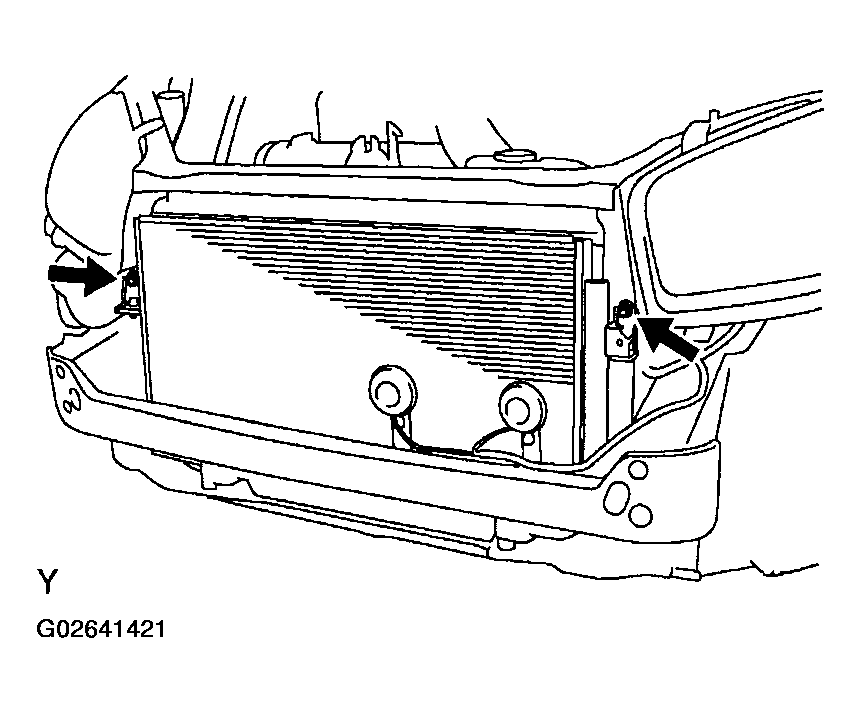

  Fig 2: Removing Condenser
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
