Condenser Fan: Reassembly

  1. INSTALL NO. 2 FAN MOTOR
    1. Install the fan motor with the 3 screws.

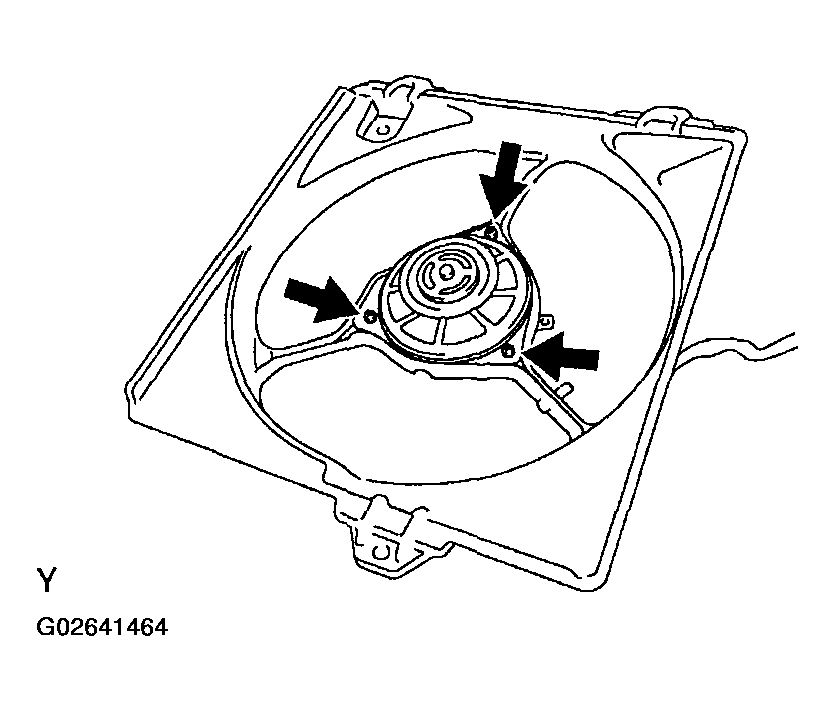

      Fig 1: Installing No. 2 Fan Motor
      G02641464Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Install the fan motor cover with the screw.

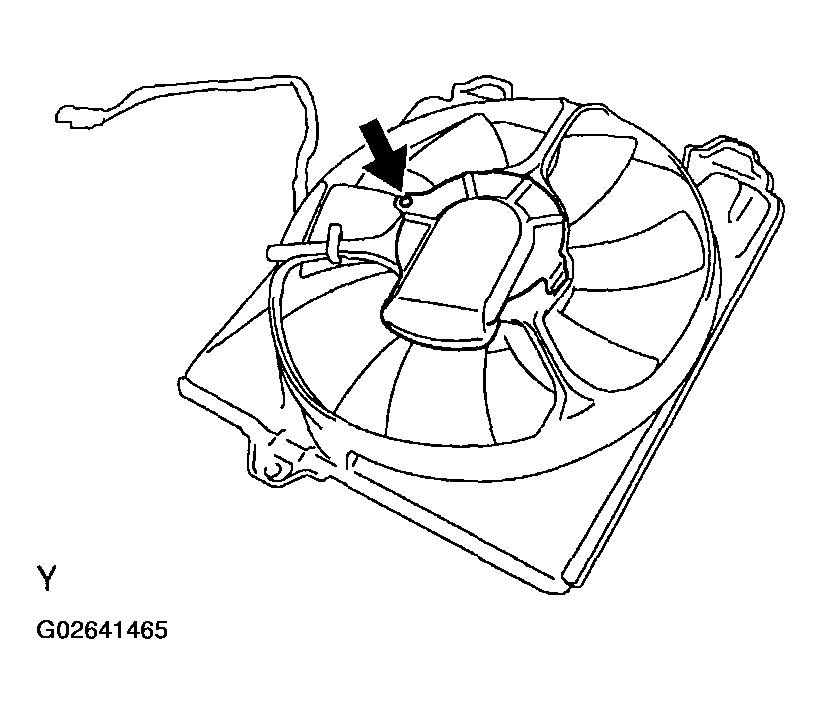

      Fig 2: Installing No. 2 Fan Motor Cover
      G02641465Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL NO. 2 FAN

    Install the fan with the 3 screws.

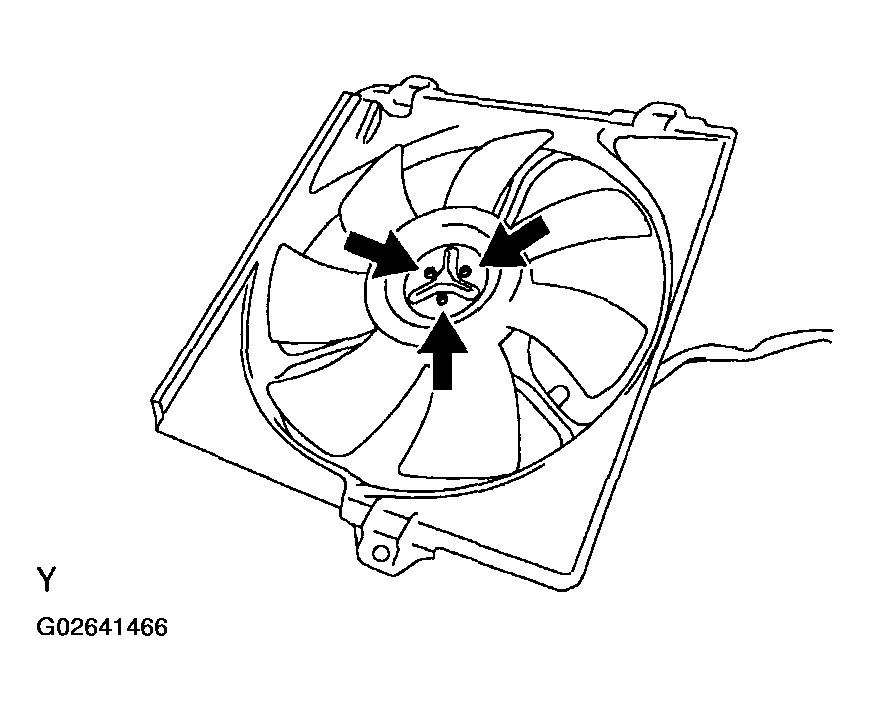

    Fig 3: Installing No. 2 Fan
    G02641466Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
