Condenser Fan: Installation

INSTALL NO. 2 ELECTRIC COOLING FAN AND FAN SHROUD ASSEMBLY
1. Install the cooling fan and fan shroud assembly with the 3 bolts.

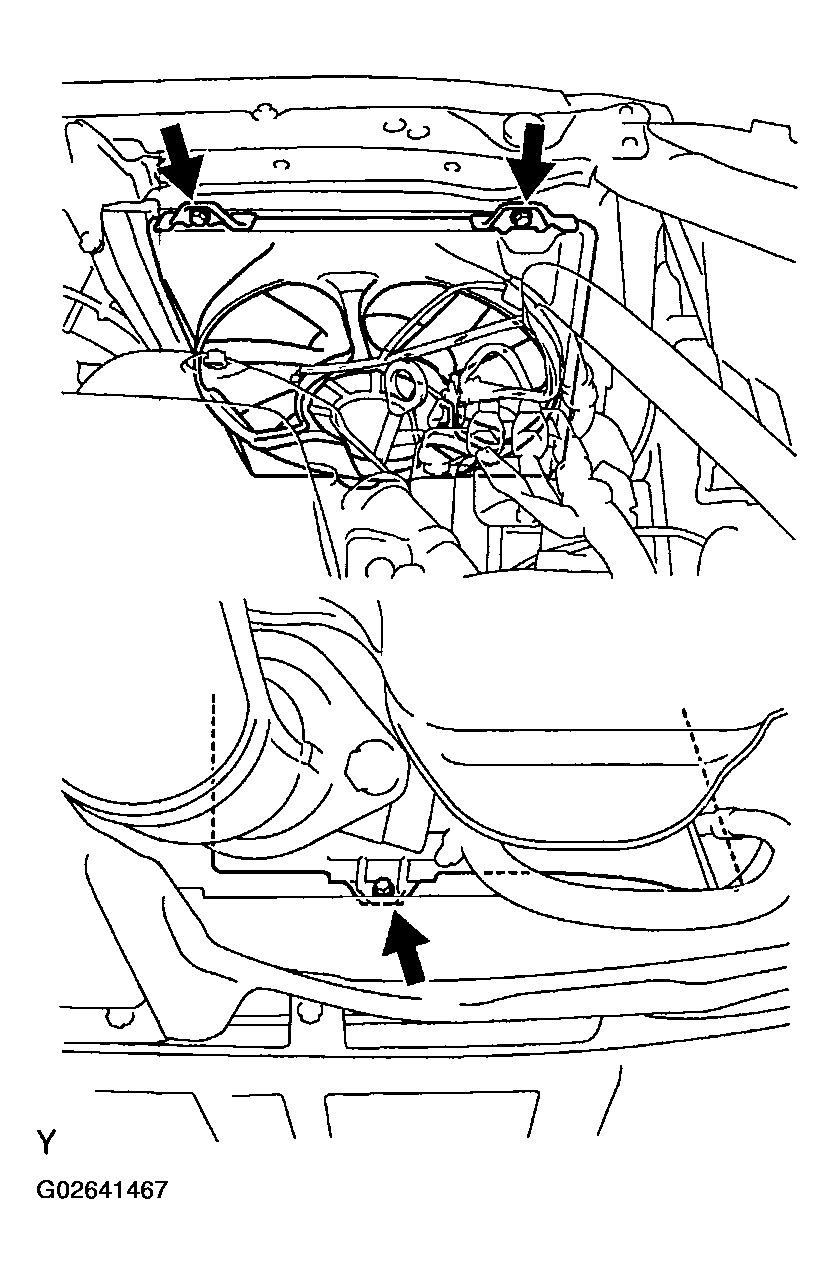

  Fig 1: Installing No. 2 Electric Cooling Fan And Fan Shroud Assembly
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Connect the cooling fan connector and clamp.

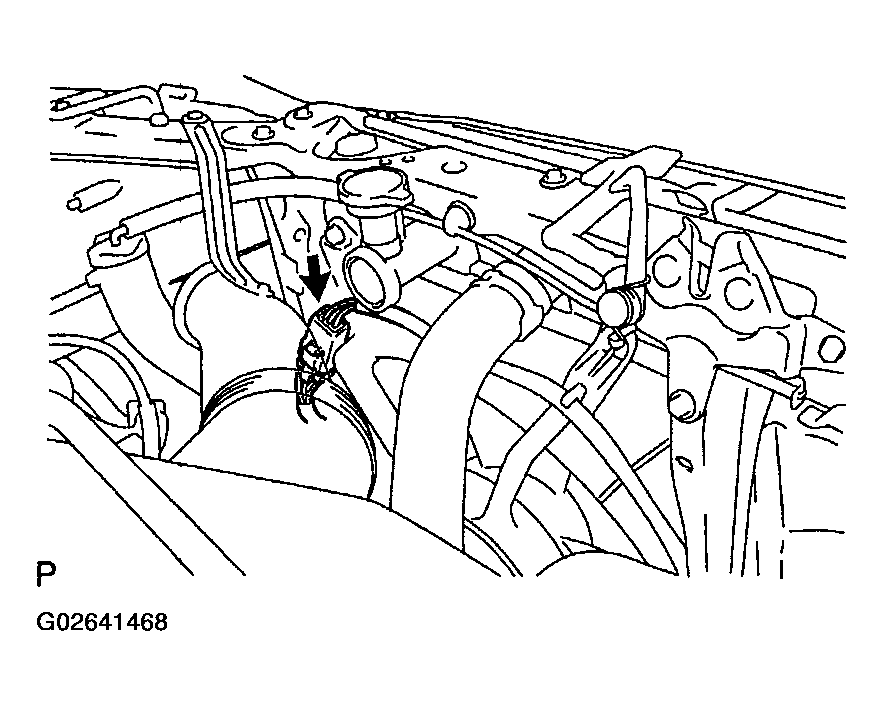

  Fig 2: Connecting Cooling Fan Connector And Clamp
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK SUPPORT BRACE
Install the bolt.

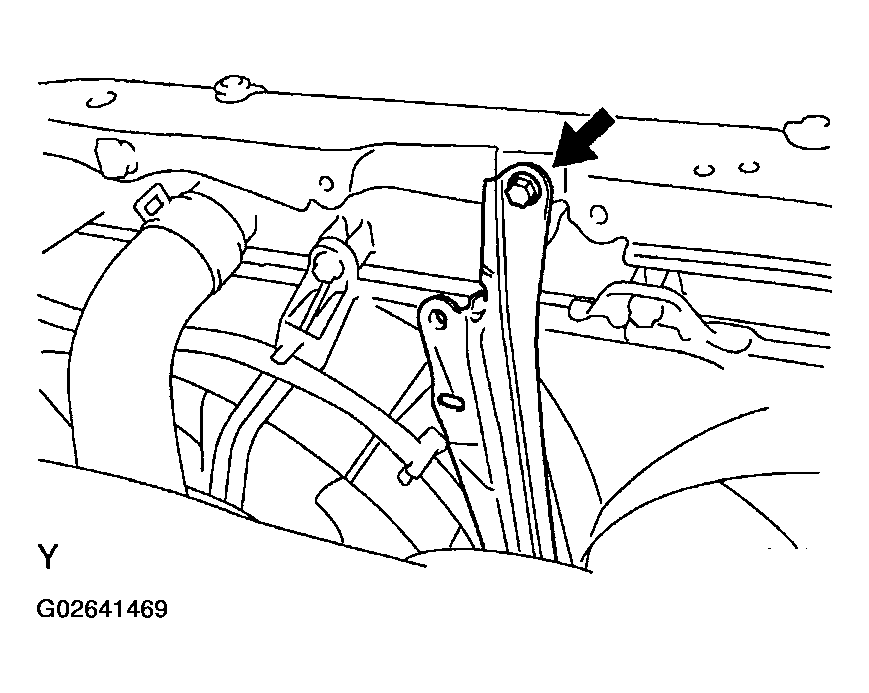

Fig 3: Installing Hood Lock Support Brace
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
INSTALL HOOD LOCK
Install the hood lock with the 3 bolts.

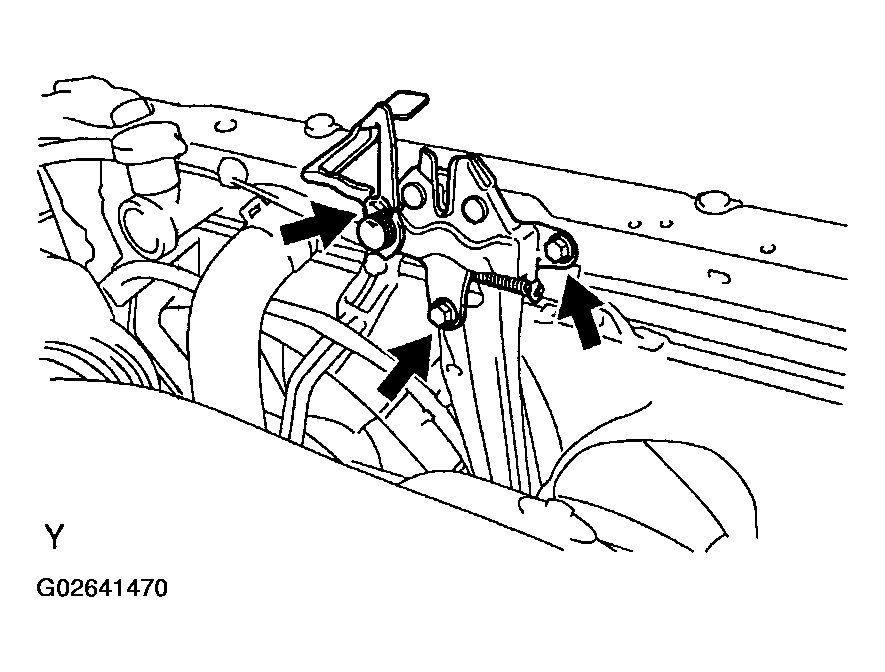

Fig 4: Installing Hood Lock
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
