Condenser Fan: Disassembly

  1. REMOVE NO. 2 FAN

    Remove the 3 screws and fan.

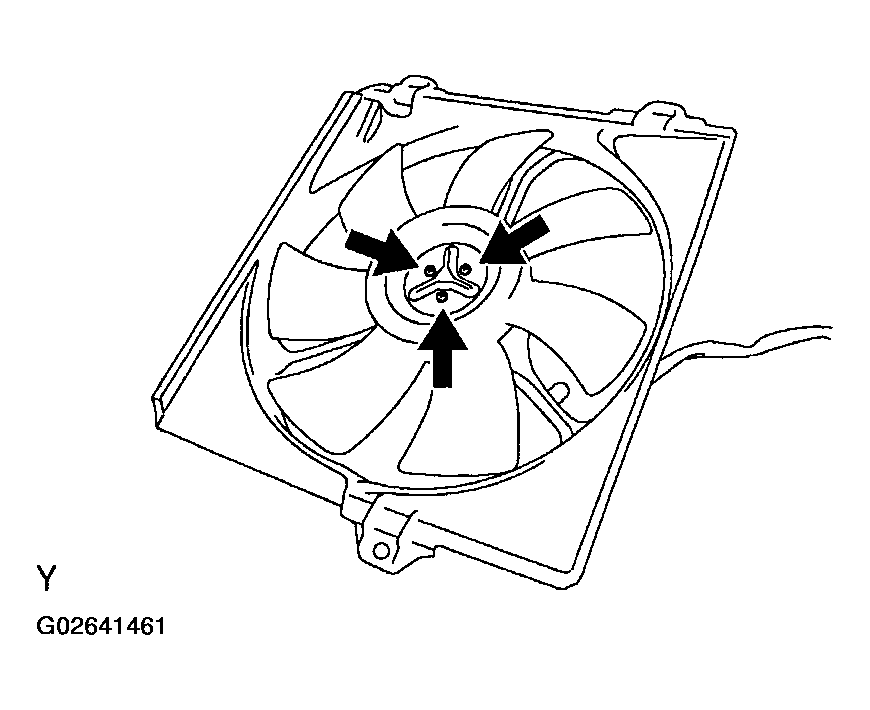

    Fig 1: Removing No. 2 Fan
    G02641461Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. REMOVE NO. 2 FAN MOTOR
    1. Remove the screw and fan motor cover.

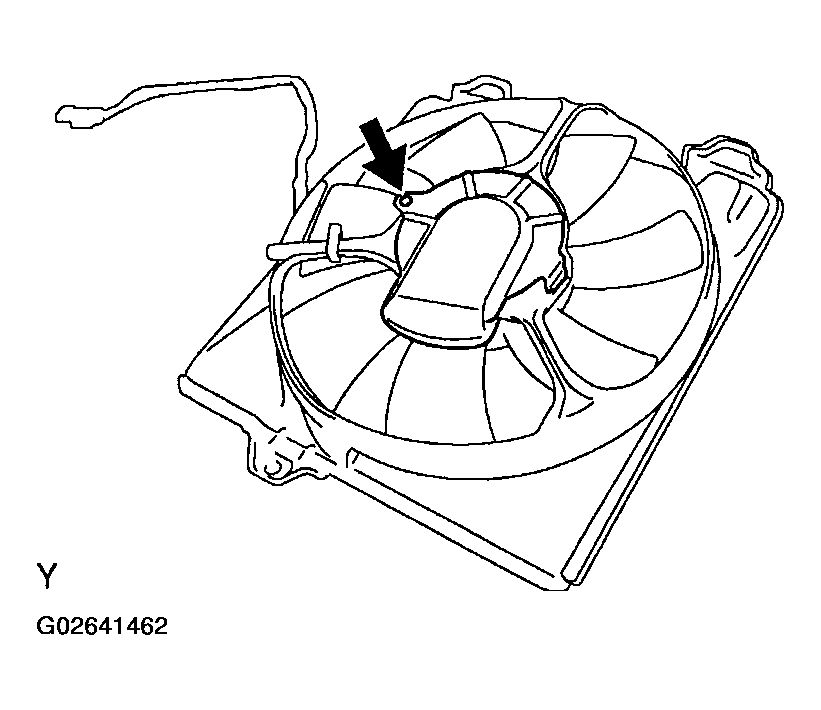

      Fig 2: Removing Fan Motor Cover
      G02641462Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Remove the 3 screws and fan motor.

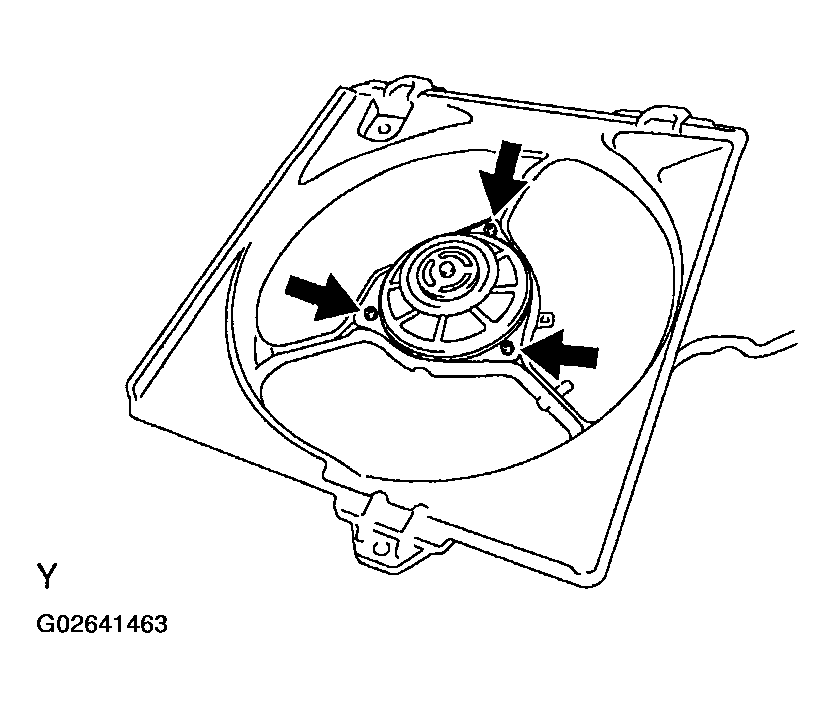

      Fig 3: Removing Fan Motor
      G02641463Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
