Compressor And Magnetic Clutch: Components

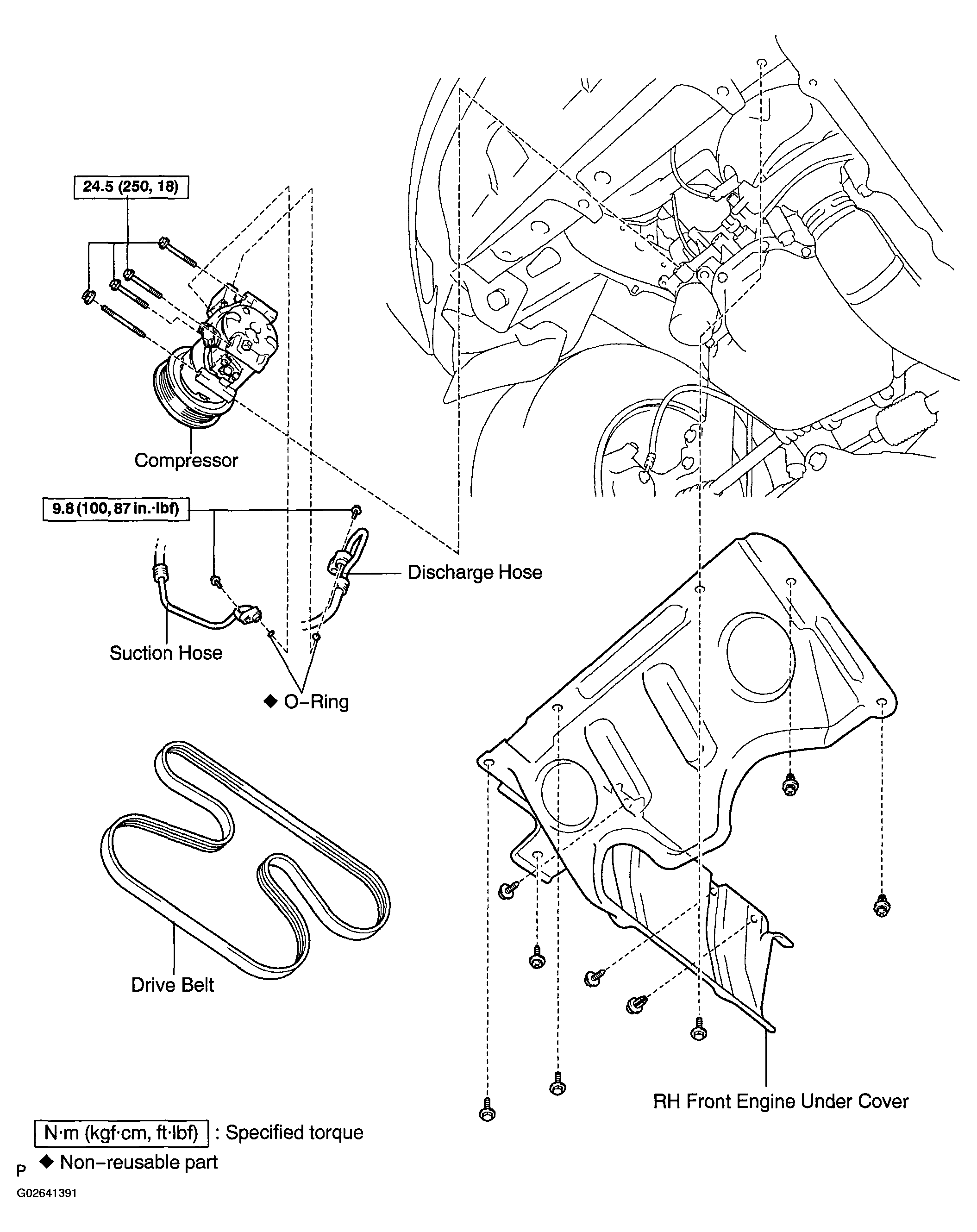

Fig 1: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (1 Of 2)
G02641391Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

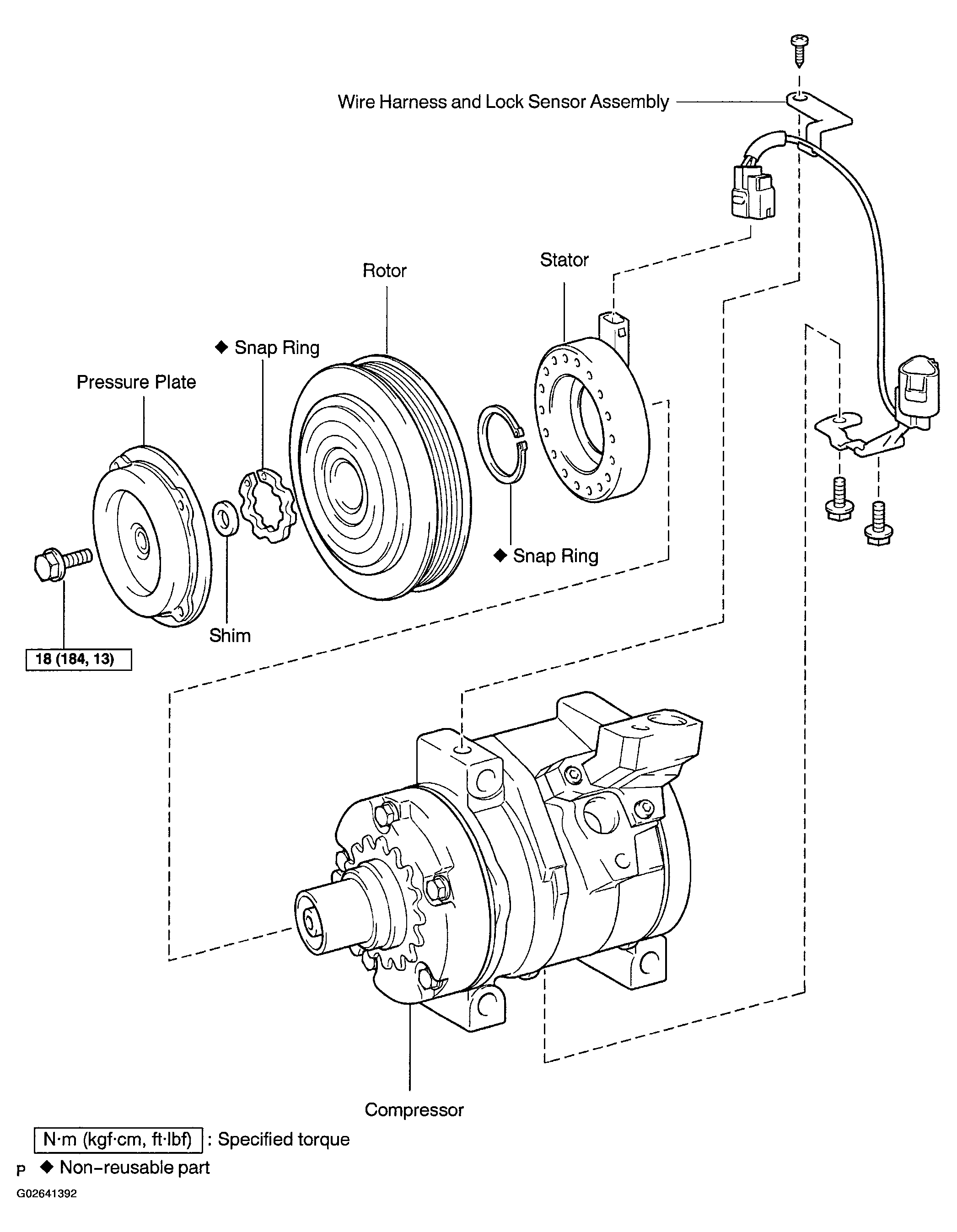

Fig 2: Compressor And Magnetic Clutch Replacement Components With Torque Specifications (2 Of 2)
G02641392Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
