Blower Unit: Removal

REMOVE GLOVE COMPARTMENT DOOR
1. Open the glove compartment door.
  Push both side inward one after another and pull out the glove compartment door.

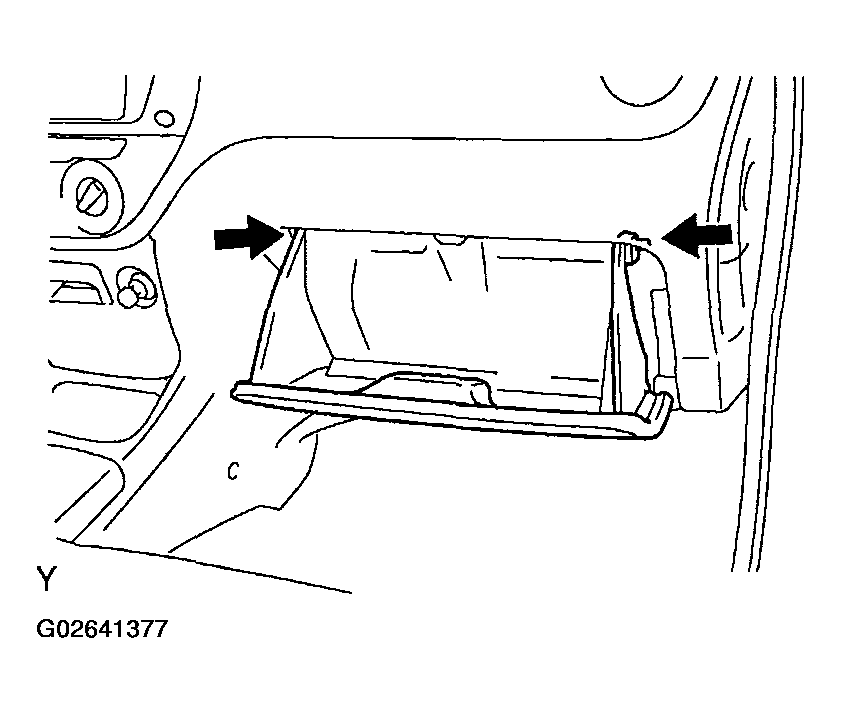

  Fig 1: Removing Glove Compartment Door
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 screws and glove compartment door.
3. Cut out the instrument panel as shown in Fig 2.

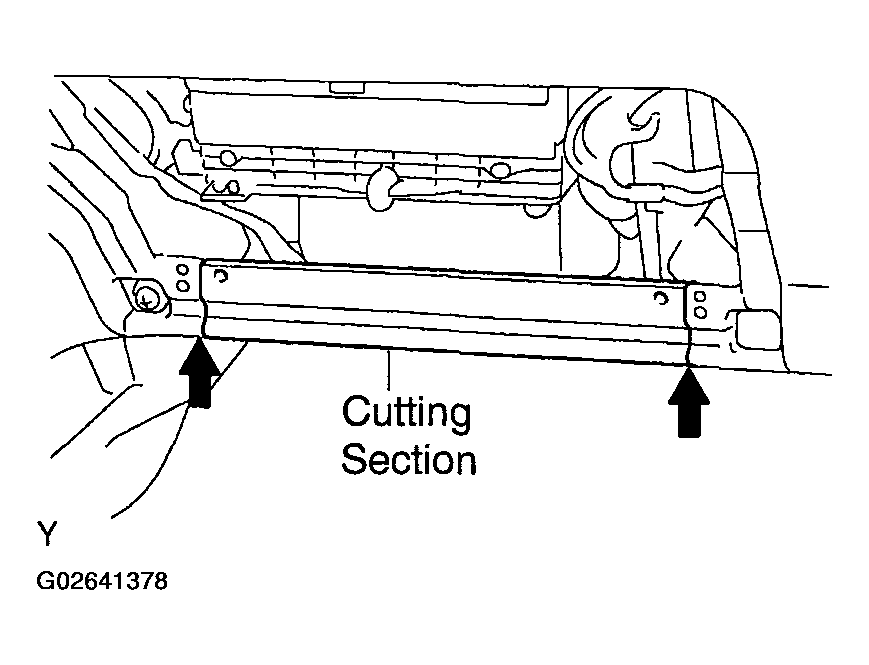

  Fig 2: Identifying Cutting Section Of Instrument Panel
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  HINT:

  After cutting out the instrument panel, file the cutting face and smooth the surface.

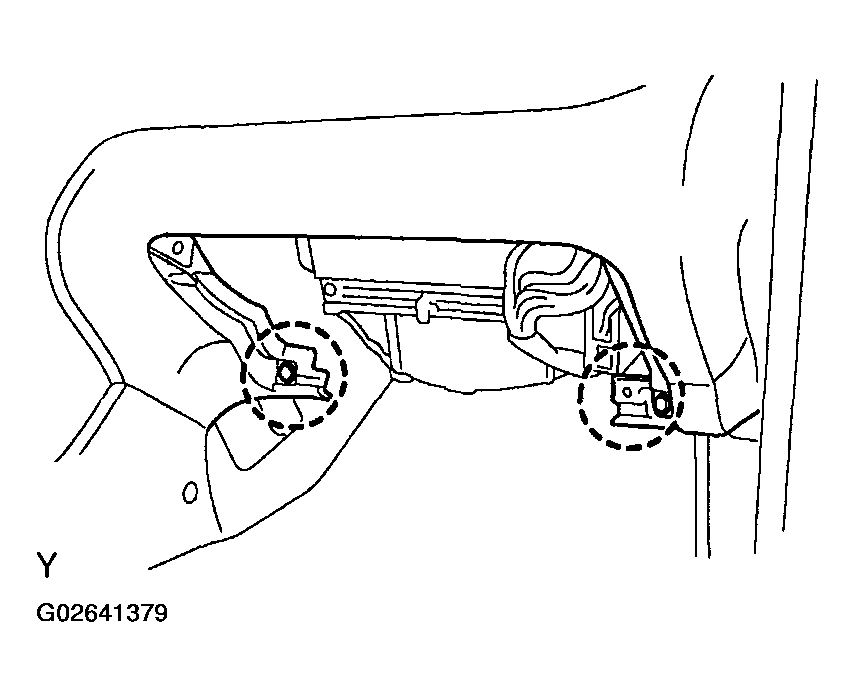

  Fig 3: Identifying Cutting Face For Filing
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER UNIT
1. Disconnect the blower resistor, blower motor connectors and harness clamps to the blower unit.
2. Disconnect the air inlet servomotor connector.

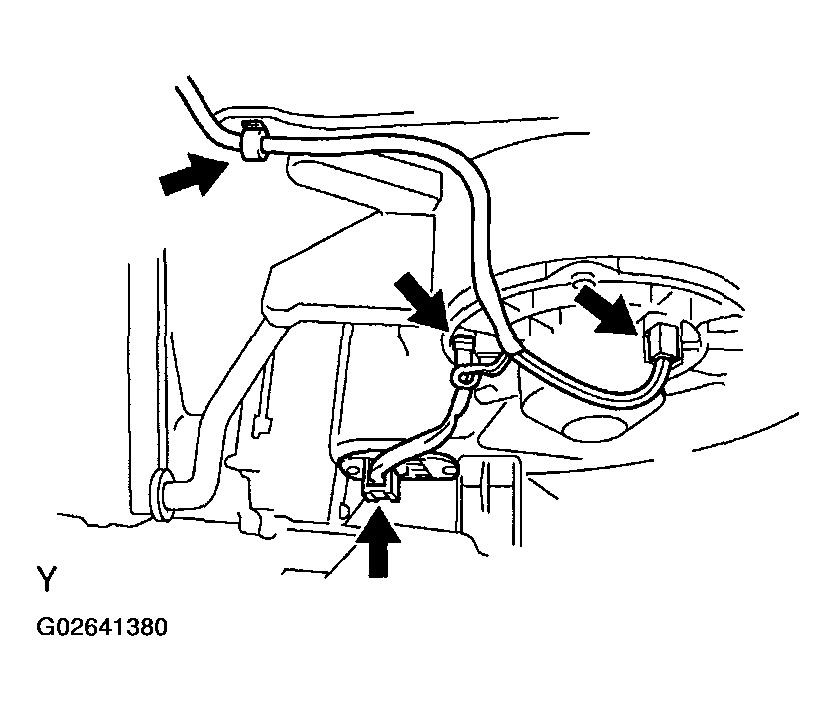

  Fig 4: Disconnecting Blower Resistor, Blower Motor Connectors & Harness Clamps
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 2 screws, 2 nuts and blower unit.

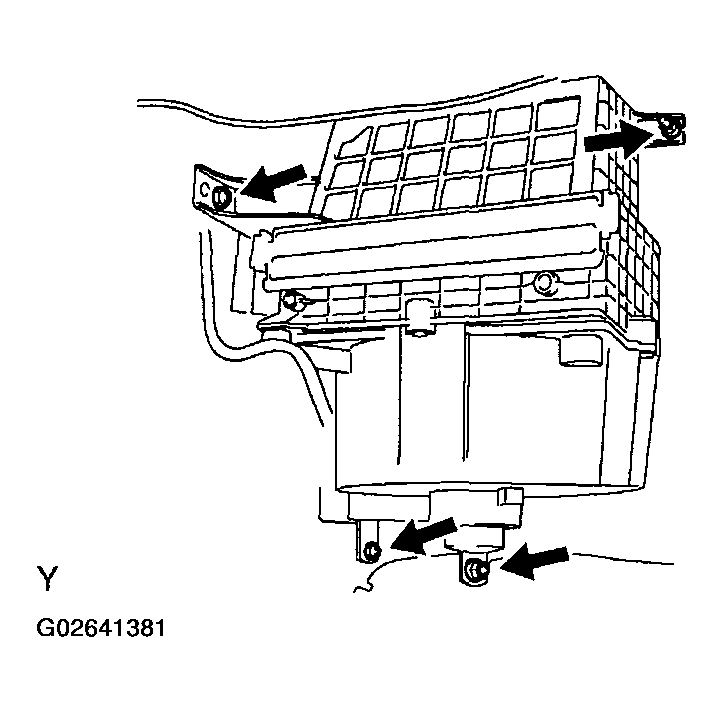

  Fig 5: Removing Blower Unit
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
