Blower Unit: Reassembly

  1. INSTALL BLOWER MOTOR

    Using a Torx® wrench, install the blower motor with the 3 screws.

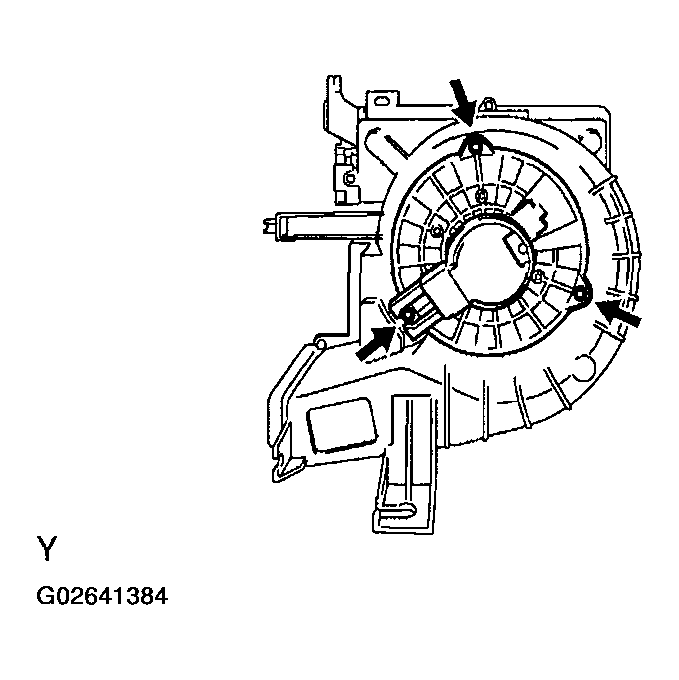

    Fig 1: Installing Blower Motor
    G02641384Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL AIR REFINER FILTER
    1. Install the filter to the frame.
    2. Push into the filter cover.
  3. INSTALL BLOWER RESISTOR

    Install the blower resistor with the 2 screws.

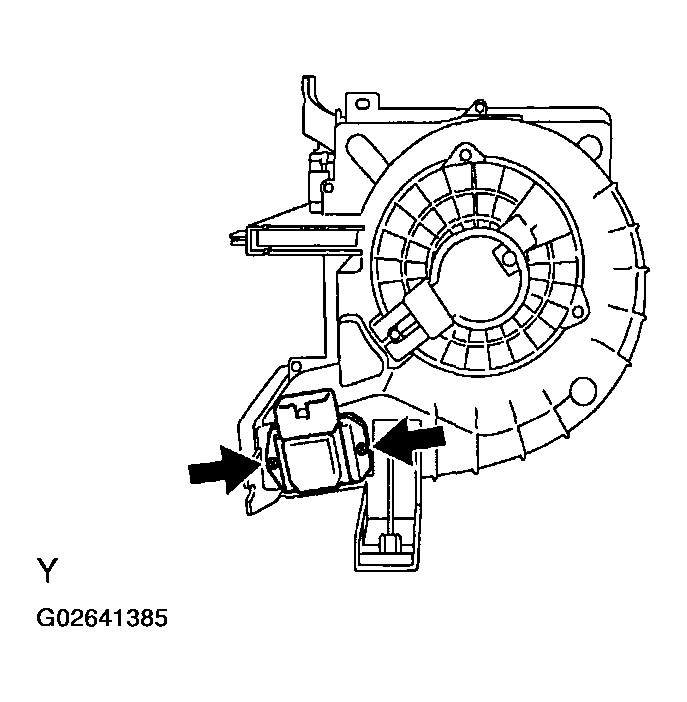

    Fig 2: Installing Blower Resistor
    G02641385Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
