Blower Unit: Installation

  1. INSTALL BLOWER UNIT
    1. Install the blower unit with the 2 screws and 2 nuts.

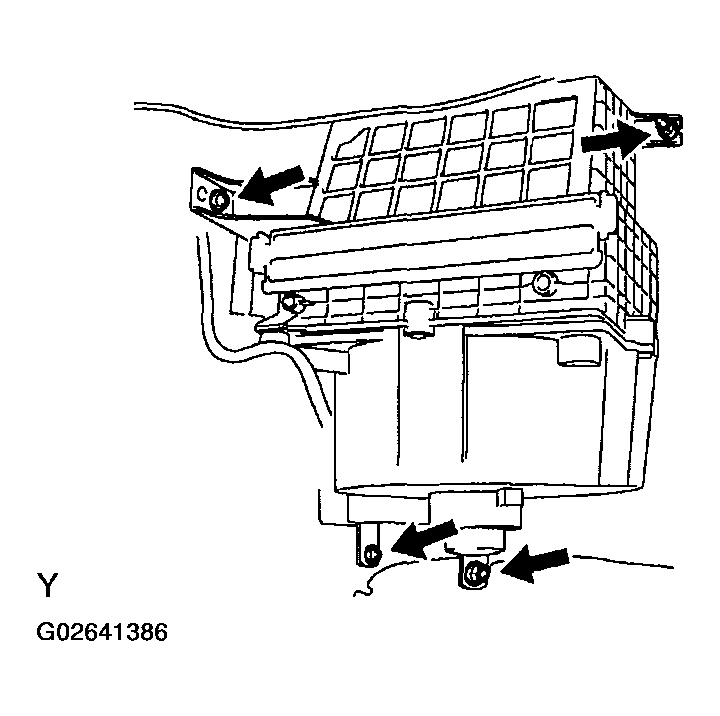

      Fig 1: Installing Blower Unit
      G02641386Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Connect the blower resistor, blower motor connectors and harness clamps to the blower unit.
    3. Connect the air inlet servomotor connector.

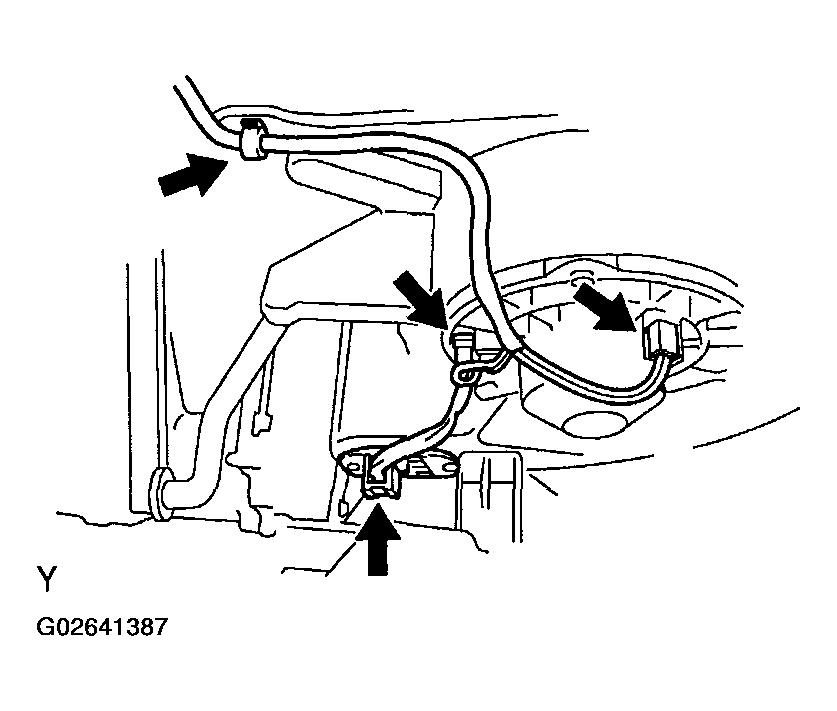

      Fig 2: Connecting Blower Resistor, Blower Motor Connectors & Harness Clamps
      G02641387Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. Install the glove compartment door reinforcement (supply part) with the 2 screws.

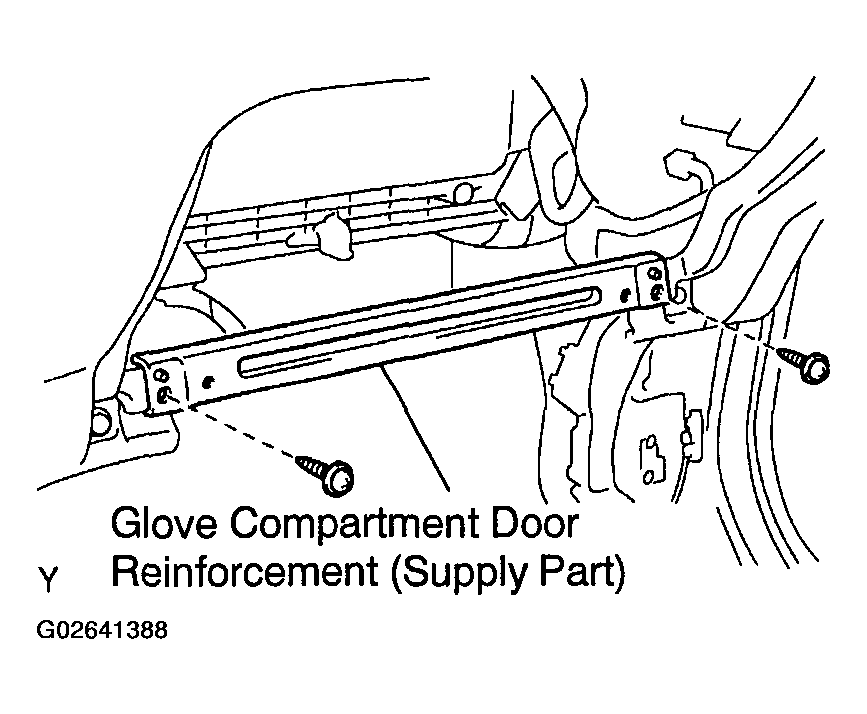

      Fig 3: Installing Glove Compartment Door Reinforcement
      G02641388Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSTALL GLOVE COMPARTMENT DOOR
