Blower Unit: Disassembly

  1. REMOVE BLOWER RESISTOR

    Remove the 2 screws and blower resistor.

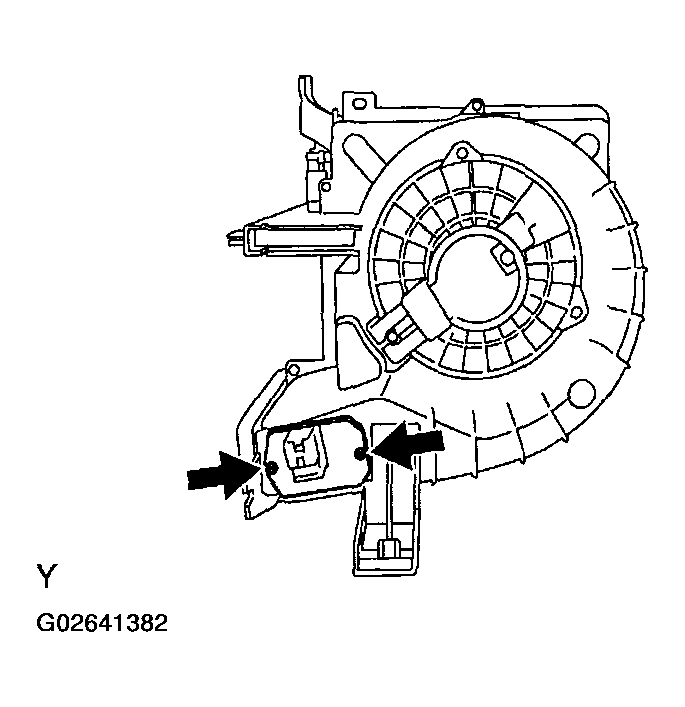

    Fig 1: Removing Blower Resistor
    G02641382Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. INSPECT BLOWER RESISTOR (See  BLOWER RESISTOR  )
  3. REMOVE AIR REFINER FILTER
    1. Pull out the filter cover.
    2. Remove the filter from the frame.
  4. REMOVE BLOWER MOTOR

    Using a Torx® wrench, remove the 3 screws and blower motor.

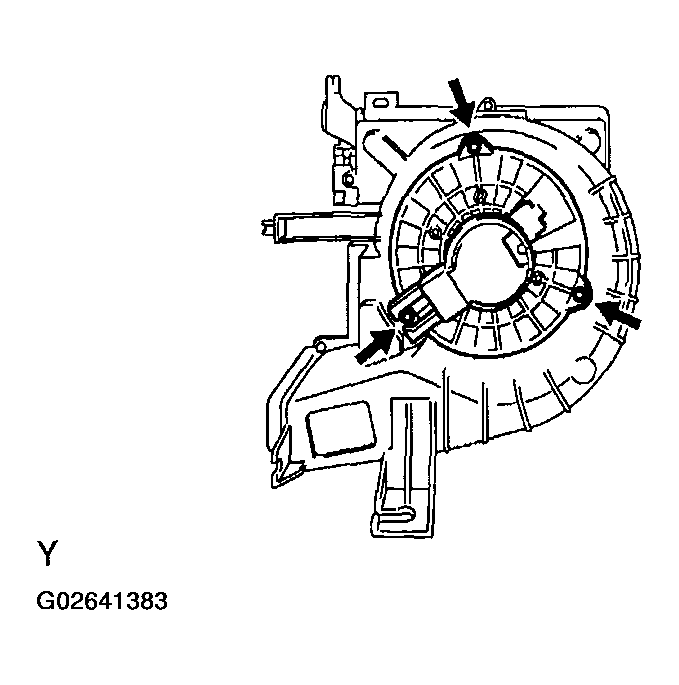

    Fig 2: Removing Blower Motor
    G02641383Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  5. INSPECT BLOWER MOTOR (See  BLOWER MOTOR  )
