Blower Unit: Component

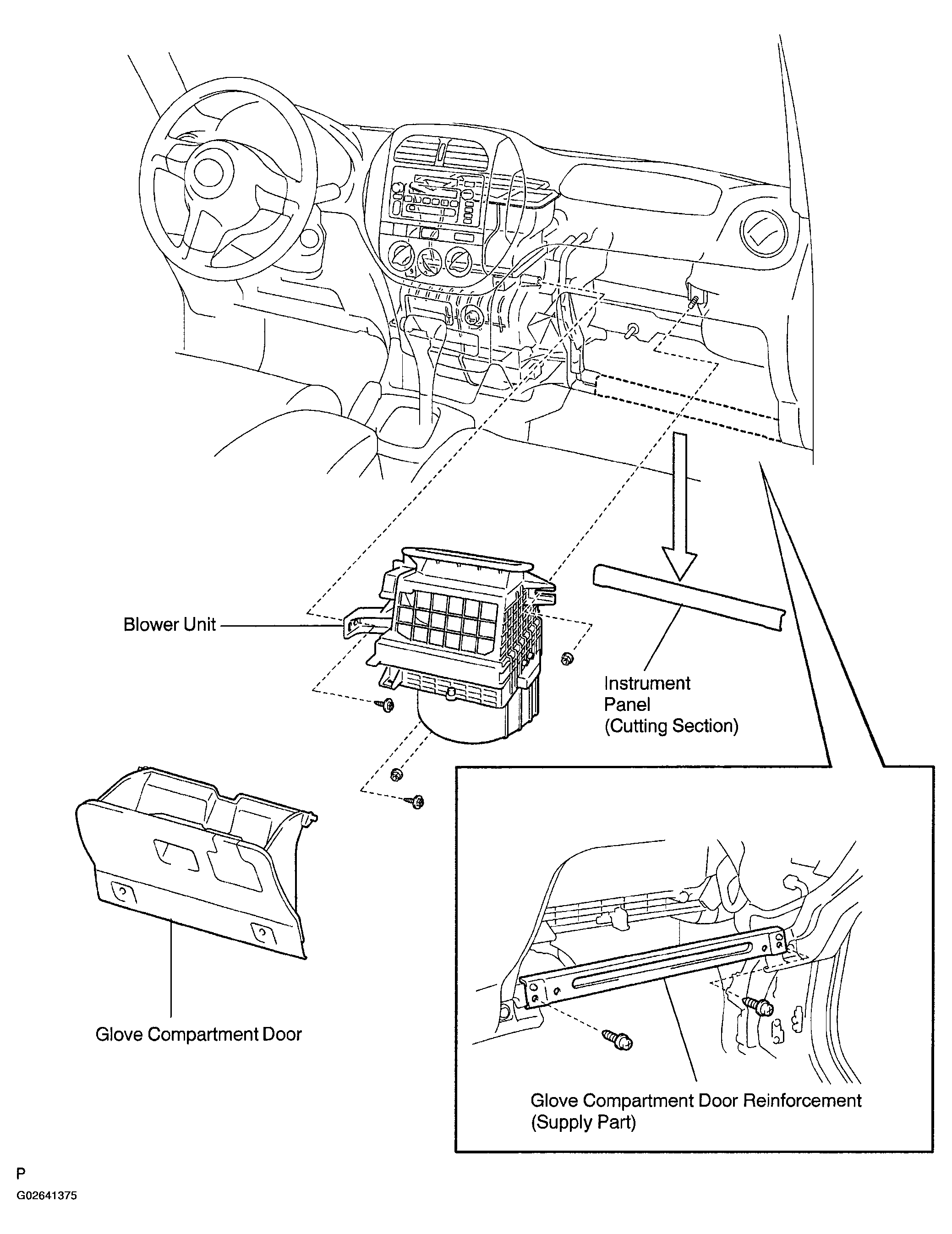

Fig 1: Identifying Blower Unit Component (1 Of 2)
G02641375Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

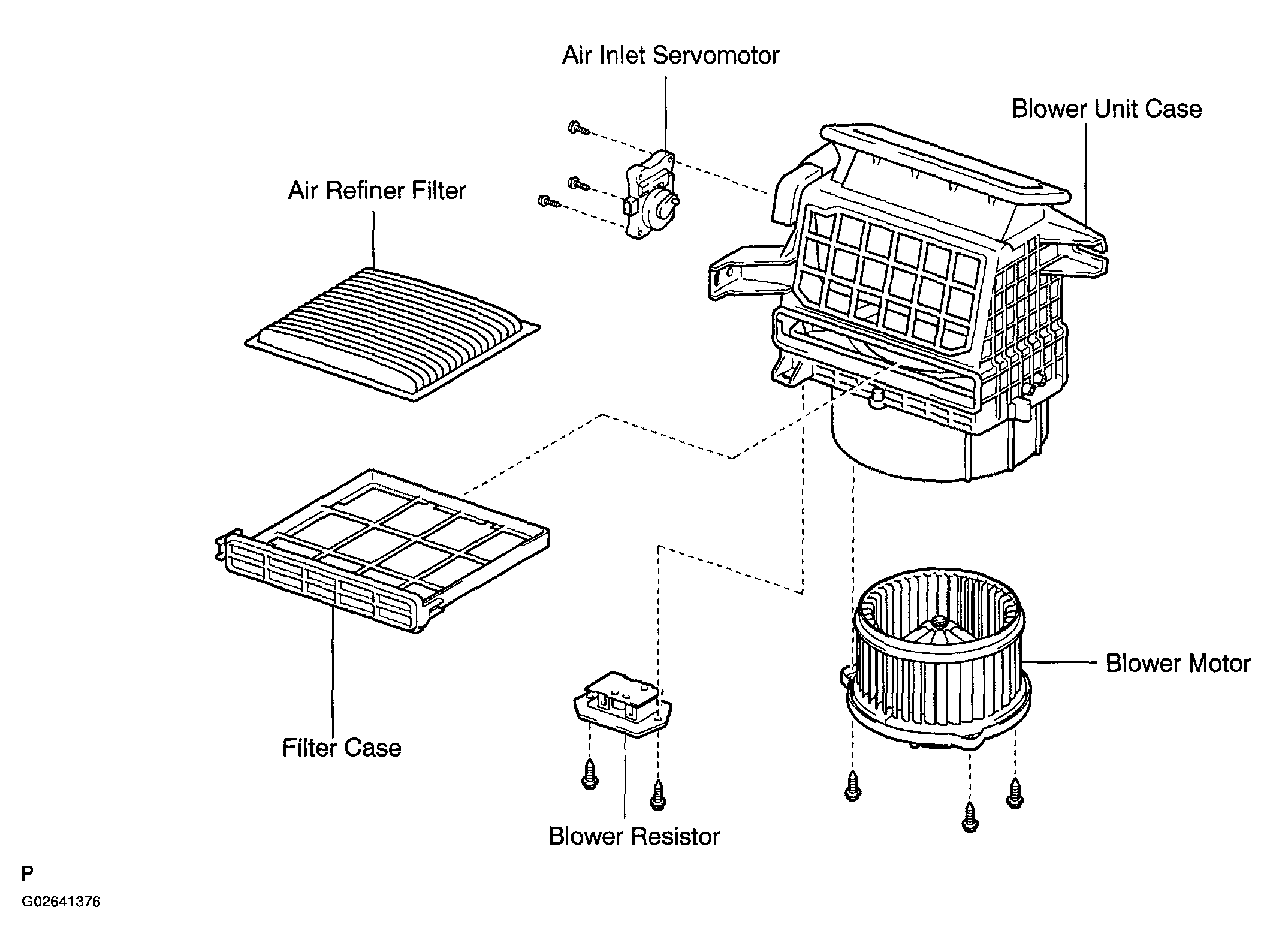

Fig 2: Identifying Blower Unit Component (2 Of 2)
G02641376Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
