Air Conditioning Unit: Reassembly

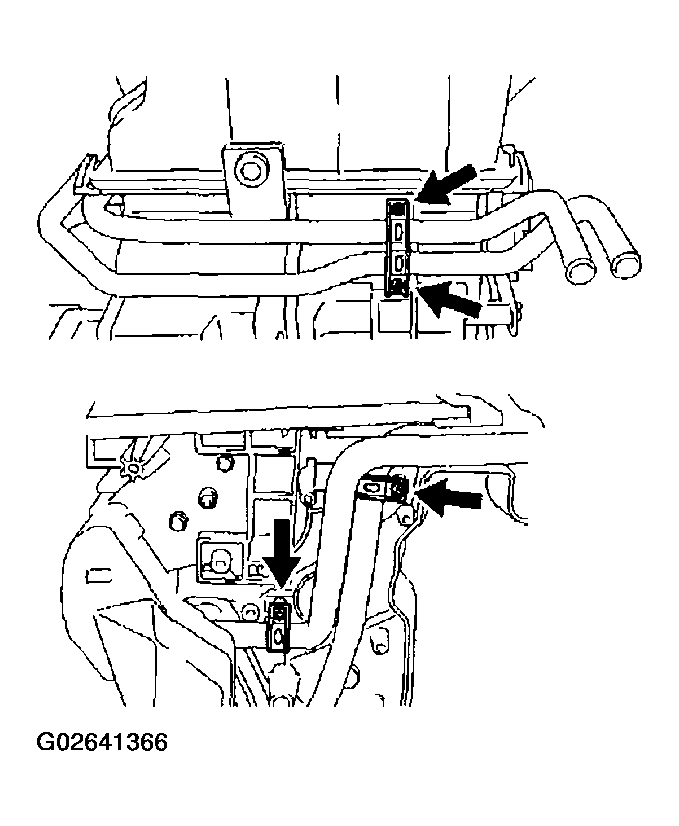

INSTALL HEATER RADIATOR
1. Push into the heater radiator to the A/C unit case.
2. Install the 4 screws and 3 clamps.
3. Install the passenger air duct subassembly.

  Fig 1: Installing Heater Radiator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

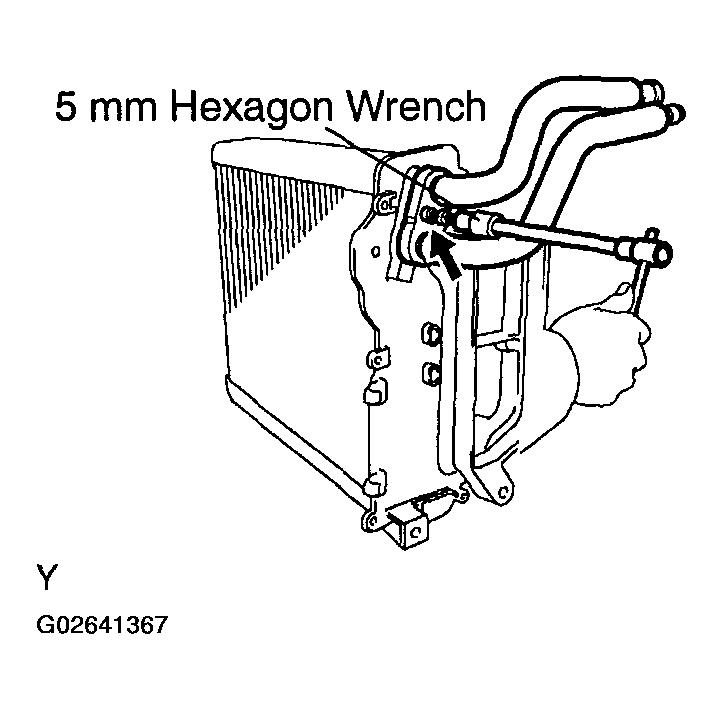

INSTALL EXPANSION VALVE
1. Coat 4 new O-rings with the compressor oil.
2. Using a 5 mm hexagon wrench, install the expansion valve to the evaporator with the 2 bolts.
  Torque: 3.5 N.m (36 kgf.cm, 31 in.lbf)

  Fig 2: Installing Expansion Valve
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

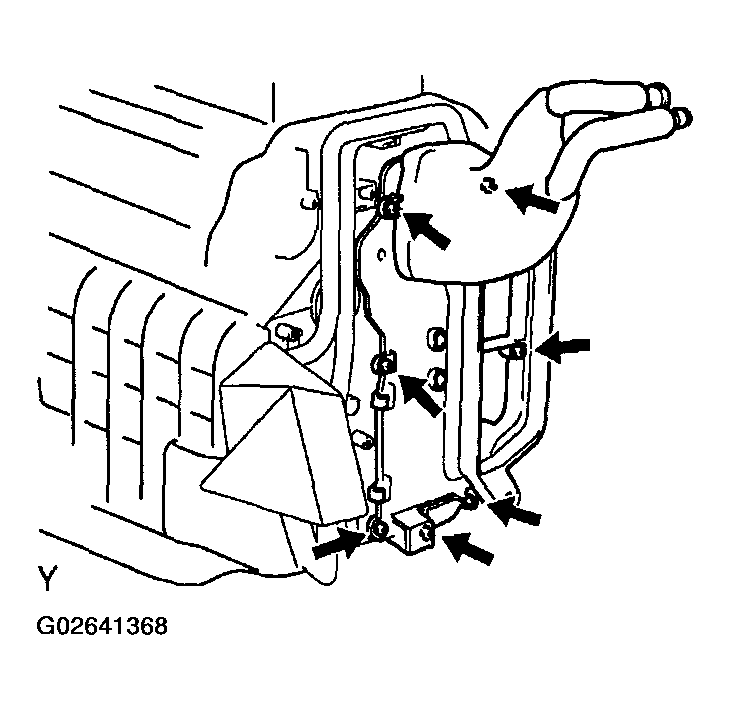

INSTALL EVAPORATOR
1. Install the evaporator with the 7 screws.
2. Wrap the packing.
  If evaporator was replaced, add compressor oil to the compressor.

  Add 40 cc (1.4 fl.oz.)

  Compressor oil: ND-OIL 8 or equivalent

  Fig 3: Installing Evaporator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

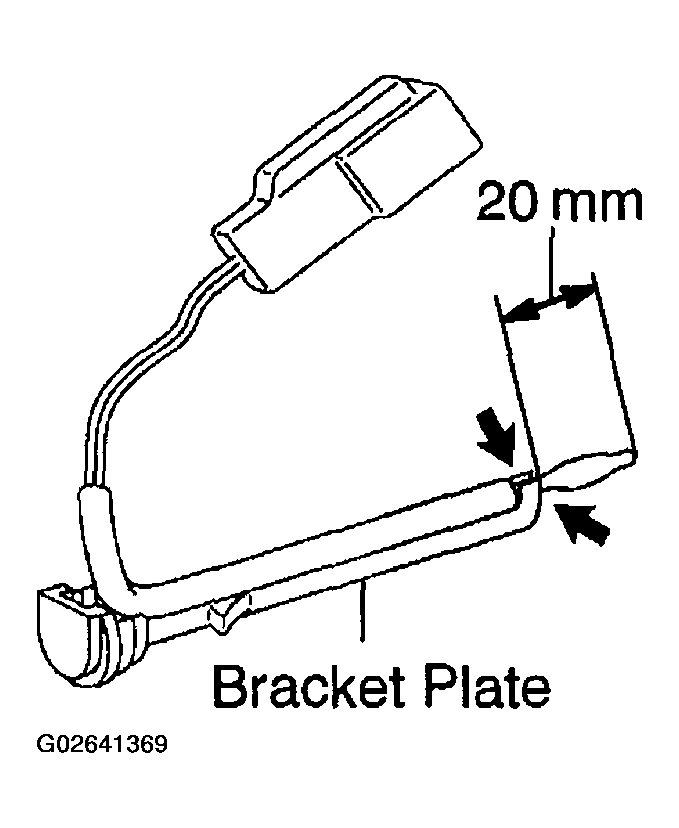

INSTALL THERMISTOR
1. Install the thermistor to the bracket plate as shown in Fig 4.
2. Push into the thermistor to the A/C unit case.
3. Connect the connector clamp.

  Fig 4: Installing Thermistor
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
