Air Conditioning Unit: Components

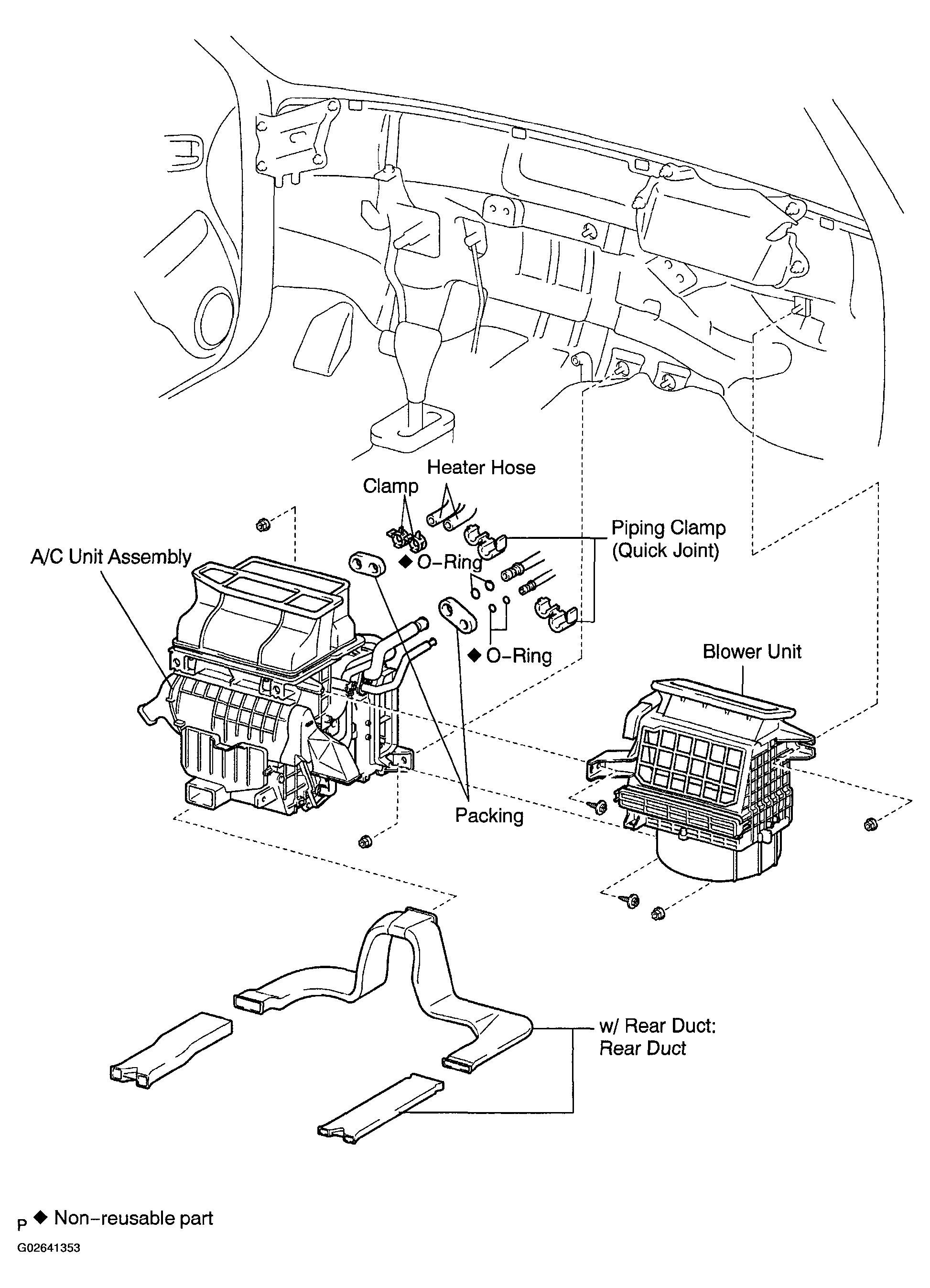

Fig 1: Identifying Air Conditioning Unit Components (1 Of 2)
G02641353Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

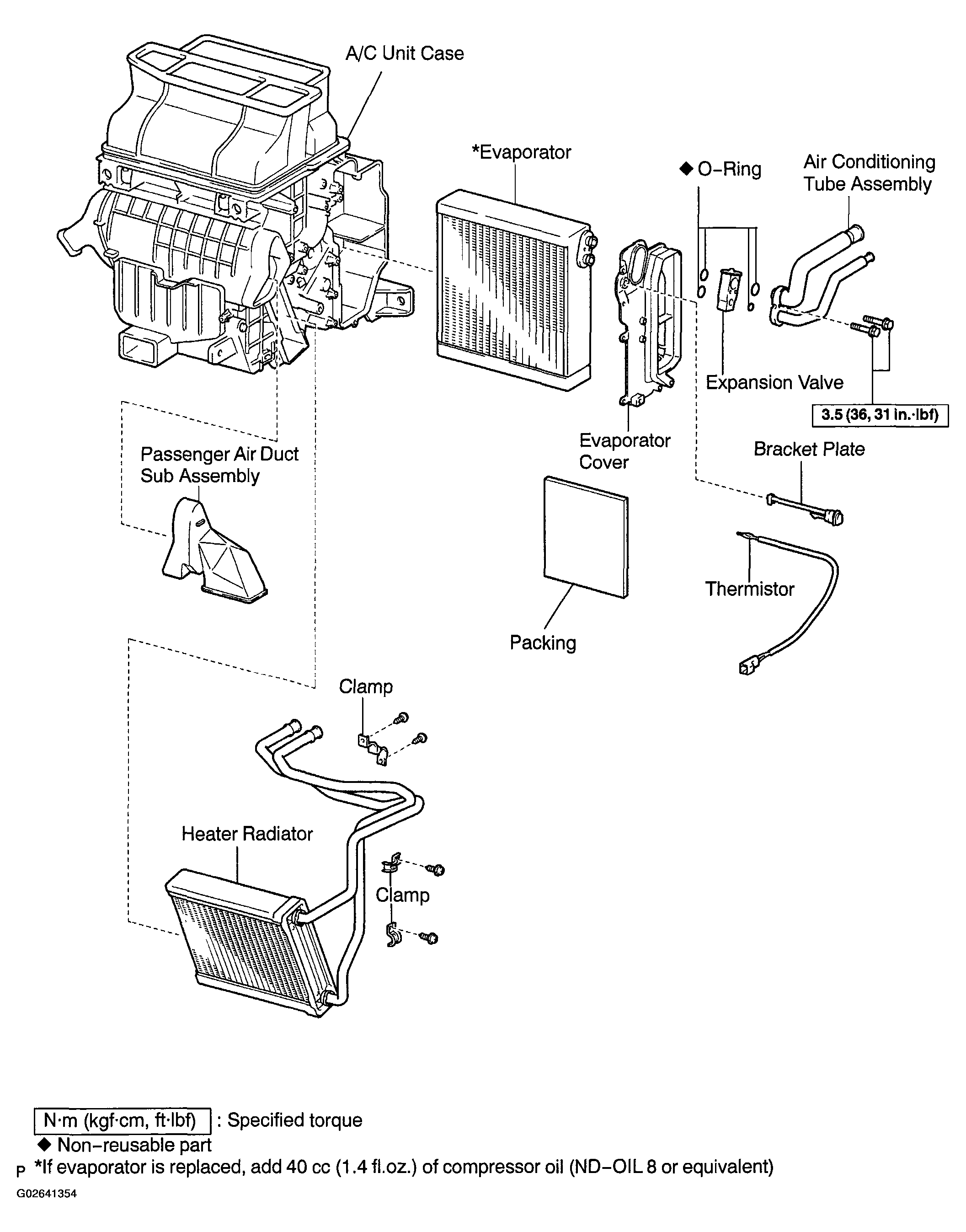

Fig 2: Air Conditioning Unit Replacement Components With Torque Specifications (2 Of 2)
G02641354Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
