Home >> Toyota >> 2005 >> RAV4 Base, FWD, Automatic >> Repair and Diagnosis >> Heating, Ventilation & A/C (HVAC) >> HVAC Control Systems >> Air Conditioning >> Air Conditioning Amplifier >> Components

Air Conditioning Amplifier: Components

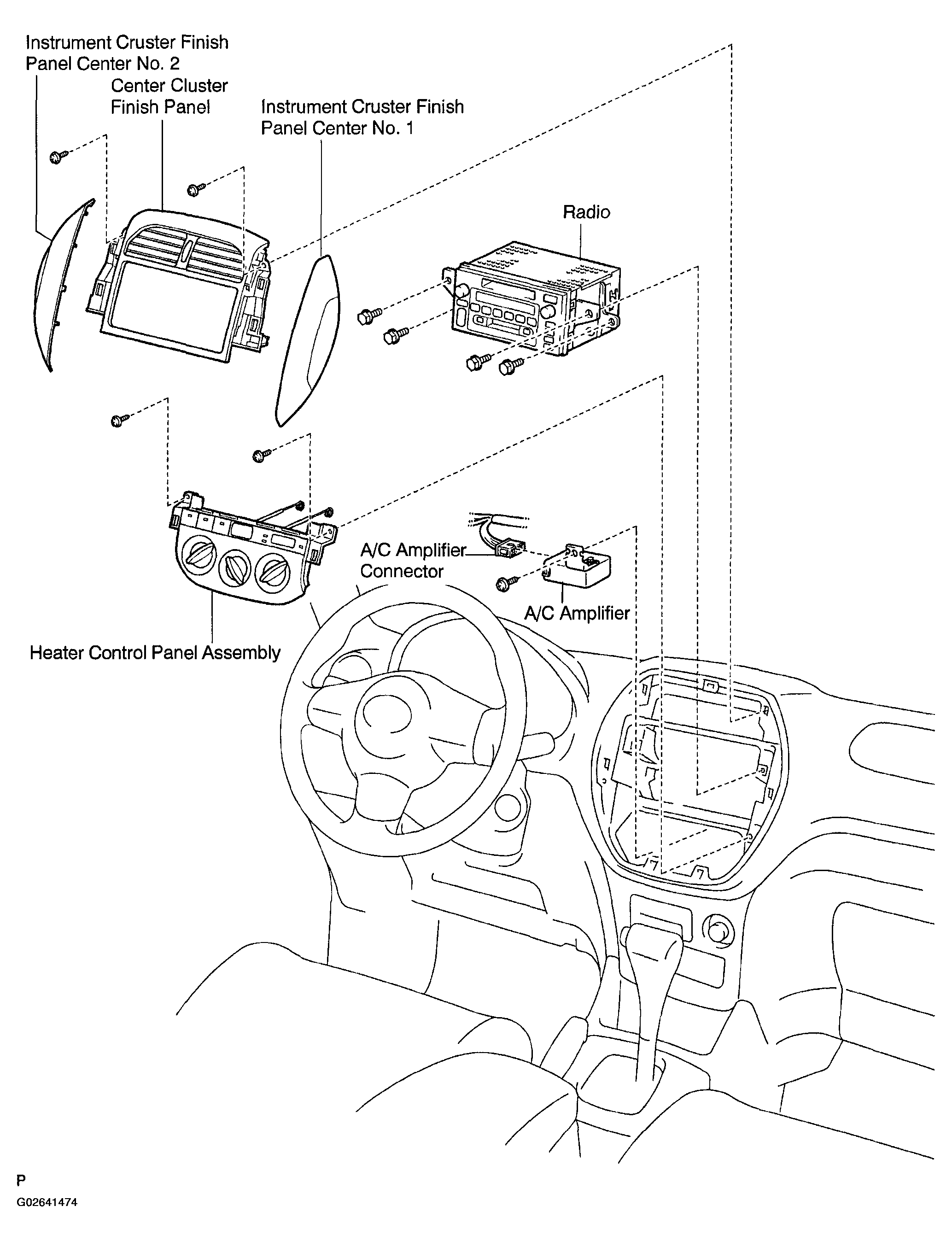

Fig 1: Identifying Air Conditioning Amplifier Components

G02641474

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
